MINIFLUX TRANSPARENT

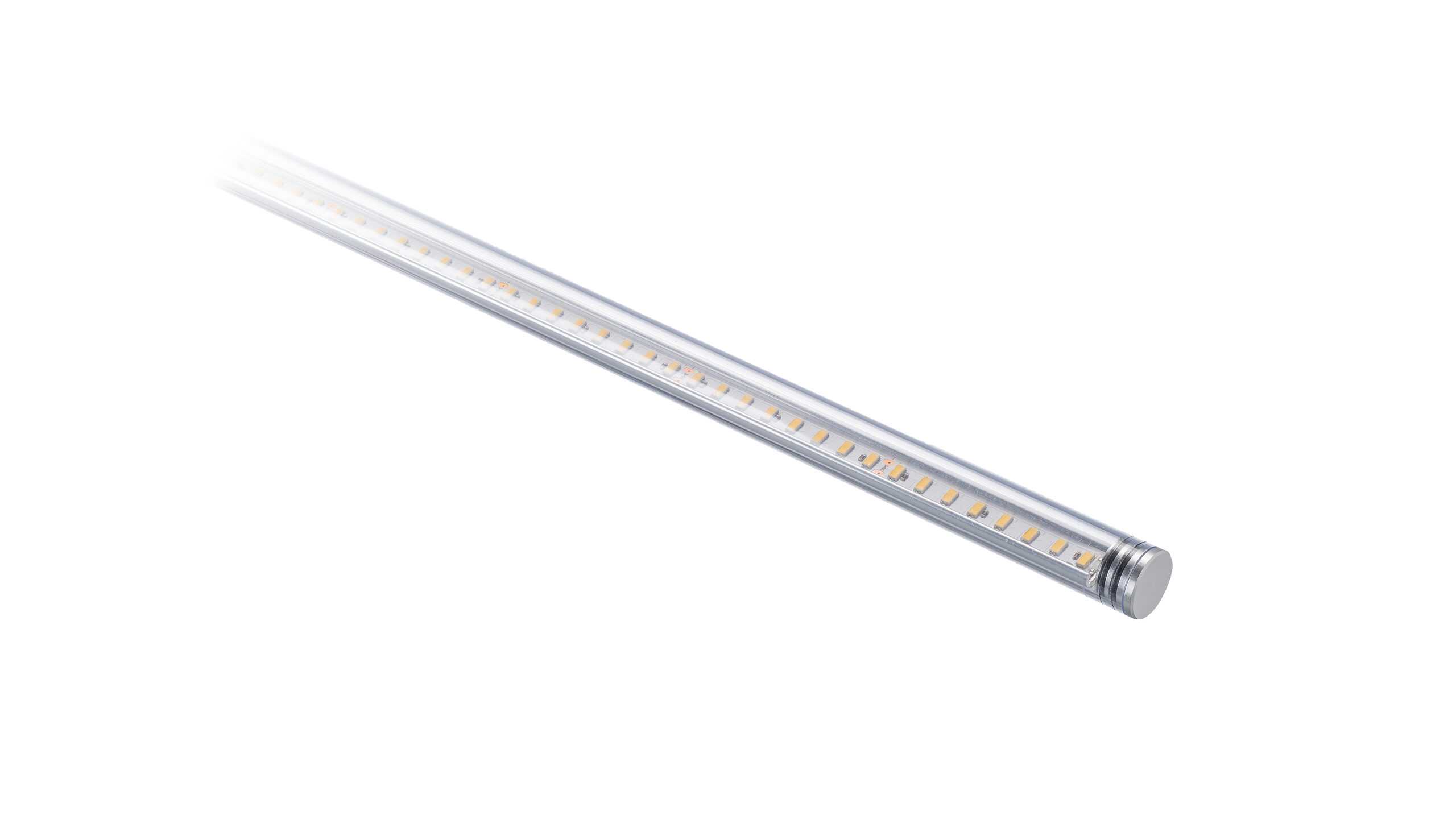

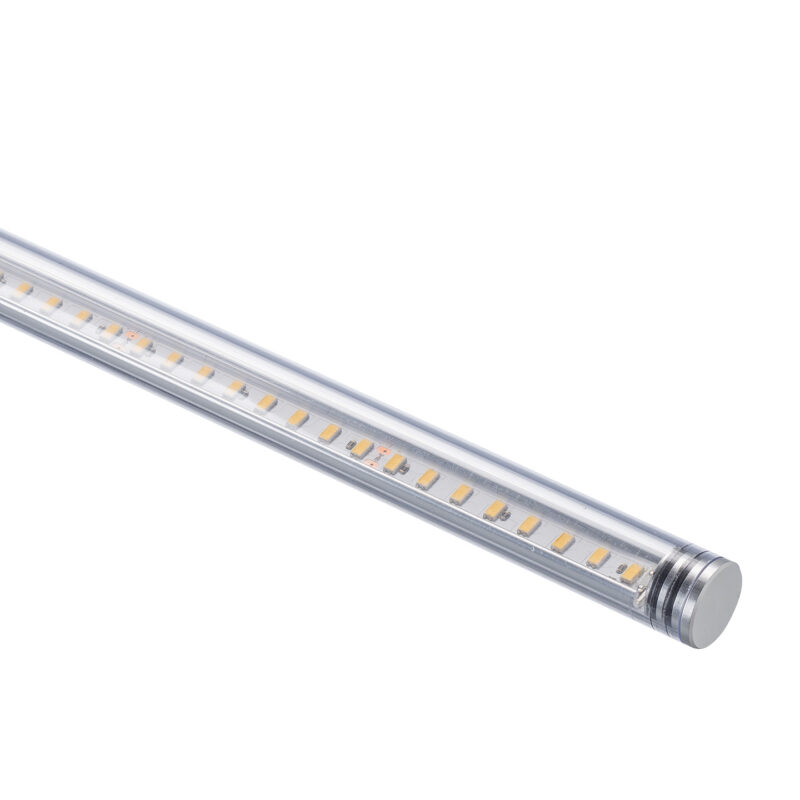

MINIFLUX est un système à LED modulaire pour intérieurs/extérieurs adapté à un éclairage de corniche, décoratif et d’accentuation. Corps en profilé en aluminium sur lequel est positionné un ruban de LED 24V DC à haut rendement, Diffuseur en polycarbonate transparent. L’installation est réalisée à l’aide de clips en polycarbonate transparent qui permettent l’orientation du produit. Miniflux est disponible dans diverses longueurs et température de couleur. Le diamètre du tube en polycarbonate varie selon le flux lumineux. Alimentation non incluse.

Technical drawing

Versions

  • 1m
    • 2700K HP
      Linear LED14,5W1500lmDirect 120°2700Kaccording to driver24VDC
      90E65ø1,6x104cmcable 2m; driver not includedtube length, 1-10V, DALI, DMX, Casambi
      PolycarbonateCode/ColorBBOK0910041DPC transparentConnectors kit IP68DIMENSIONS-CODESDrivers 24VDC + DALI interfaceDIMENSIONS-CODES_DRIVER-24VDCDALI-INTERFACE
    • 3000K HP
      Linear LED14,5W1600lmDirect 120°3000Kaccording to driver24VDC
      90E65ø1,6x104cmcable 2m; driver not includedtube length, 1-10V, DALI, DMX, Casambi
      PolycarbonateCode/ColorBBOK0910041WPC transparentConnectors kit IP68DIMENSIONS-CODESDrivers 24VDC + DALI interfaceDIMENSIONS-CODES_DRIVER-24VDCDALI-INTERFACE
    • 4000K HP
      Linear LED14,5W1880lmDirect 120°4000Kaccording to driver24VDC
      90D65ø1,6x104cmcable 2m; driver not includedtube length, 1-10V, DALI, DMX, Casambi
      PolycarbonateCode/ColorBBOK0910041NPC transparentConnectors kit IP68DIMENSIONS-CODESDrivers 24VDC + DALI interfaceDIMENSIONS-CODES_DRIVER-24VDCDALI-INTERFACE
    • 2700K HP - asymmetric
      LED linear14,5W1360lmDirect asymmetric2700Kaccording to driver24VDC
      90E65ø1,6x104cmcable 2m; driver not includedtube length, 1-10V, DALI, DMX, Casambi
      PolycarbonateCode/ColorBBOK0910241DPC transparentConnectors kit IP68DIMENSIONS-CODESDrivers 24VDC + DALI interfaceDIMENSIONS-CODES_DRIVER-24VDCDALI-INTERFACE
    • 3000K HP - asymmetric
      Linear LED14,5W1430lmDirect asymmetric3000Kaccording to driver24VDC
      90E65ø2x107cmcable 2m; driver not includedtube length, 1-10V, DALI, DMX, Casambi
      PolycarbonateCode/ColorBBOK0910241WPC transparentConnectors kit IP68DIMENSIONS-CODESDrivers 24VDC + DALI interfaceDIMENSIONS-CODES_DRIVER-24VDCDALI-INTERFACE
    • 4000K HP - asymmetric
      Linear LED14,5W1660lmDirect asymmetric4000Kaccording to driver24VDC
      90D65ø2x107cmcable 2m; driver not includedtube length, 1-10V, DALI, DMX, Casambi
      PolycarbonateCode/ColorBBOK0910241NPC transparentConnectors kit IP68DIMENSIONS-CODESDrivers 24VDC + DALI interfaceDIMENSIONS-CODES_DRIVER-24VDCDALI-INTERFACE
  • 2m
    • 2700K HP
      Linear LED29W3000lmDirect 120°2700Kaccording to driver24VDC
      90E65ø1,6x204cmcable 2m; driver not includedtube length, 1-10V, DALI, DMX, Casambi
      PolycarbonateCode/ColorBBOK0920041DPC transparentConnectors kit IP68DIMENSIONS-CODESDrivers 24VDC + DALI interfaceDIMENSIONS-CODES_DRIVER-24VDCDALI-INTERFACE
    • 3000K HP
      Linear LED29W3200lmDirect 120°3000Kaccording to driver24VDC
      90E65ø1,6x204cmcable 2m; driver not includedtube length, 1-10V, DALI, DMX, Casambi
      PolycarbonateCode/ColorBBOK0920041WPC transparentConnectors kit IP68DIMENSIONS-CODESDrivers 24VDC + DALI interfaceDIMENSIONS-CODES_DRIVER-24VDCDALI-INTERFACE
    • 4000K HP
      Linear LED29W3760lmDirect 120°4000Kaccording to driver24VDC
      90D65ø1,6x204cmcable 2m; driver not includedtube length, 1-10V, DALI, DMX, Casambi
      PolycarbonateCode/ColorBBOK0920041NPC transparentConnectors kit IP68DIMENSIONS-CODESDrivers 24VDC + DALI interfaceDIMENSIONS-CODES_DRIVER-24VDCDALI-INTERFACE
    • 2700K HP - asymmetric
      LED linear29W2720lmDirect asymmetric2700Kaccording to driver24VDC
      90E65ø2x207cmcable 2m; driver not includedtube length, 1-10V, DALI, DMX, Casambi
      PolycarbonateCode/ColorBBOK0920241DPC transparent
    • 3000K HP - asymmetric
      Linear LED29W2860lmDirect asymmetric3000Kaccording to driver24VDC
      90E65ø2x207cmcable 2m; driver not includedtube length, 1-10V, DALI, DMX, Casambi
      PolycarbonateCode/ColorBBOK0920241WPC transparentConnectors kit IP68DIMENSIONS-CODESDrivers 24VDC + DALI interfaceDIMENSIONS-CODES_DRIVER-24VDCDALI-INTERFACE
    • 4000K HP - asymmetric
      Linear LED29W3320lmDirect asymmetric4000Kaccording to driver24VDC
      90D65ø2x207cmcable 2m; driver not includedtube length, 1-10V, DALI, DMX, Casambi
      PolycarbonateCode/ColorBBOK0920241NPC transparentConnectors kit IP68DIMENSIONS-CODESDrivers 24VDC + DALI interfaceDIMENSIONS-CODES_DRIVER-24VDCDALI-INTERFACE
  • 3m
    • 2700K HP
      Linear LED42W4500lmDirect 120°2700Kaccording to driver24VDC
      90E65ø1,6x304cmcable 2m; driver not includedtube length, 1-10V, DALI, DMX, Casambi
      PolycarbonateCode/ColorBBOK0930041DPC transparentConnectors kit IP68DIMENSIONS-CODESDrivers 24VDC + DALI interfaceDIMENSIONS-CODES_DRIVER-24VDCDALI-INTERFACE
    • 3000K HP
      Linear LED42W4800lmDirect 120°3000Kaccording to driver24VDC
      90E65ø1,6x304cmcable 2m; driver not includedtube length, 1-10V, DALI, DMX, Casambi
      PolycarbonateCode/ColorBBOK0930041WPC transparentConnectors kit IP68DIMENSIONS-CODESDrivers 24VDC + DALI interfaceDIMENSIONS-CODES_DRIVER-24VDCDALI-INTERFACE
    • 4000K HP
      Linear LED42W5640lmDirect 120°4000Kaccording to driver24VDC
      90D65ø1,6x304cmcable 2m; driver not includedCCT 2700K, tube length, 1-10V, DALI, DMX, Casambi
      PolycarbonateCode/ColorBBOK0930041NPC transparentConnectors kit IP68DIMENSIONS-CODESDrivers 24VDC + DALI interfaceDIMENSIONS-CODES_DRIVER-24VDCDALI-INTERFACE
    • 2700K HP - asymmetric
      LED linear42W4080lmDirect asymmetric2700Kaccording to driver24VDC
      90E65ø2x307cmcable 2m; driver not includedtube length, 1-10V, DALI, DMX, Casambi
      PolycarbonateCode/ColorBBOK0930241DPC transparent
    • 3000K HP - asymmetric
      Linear LED42W4290lmDirect asymmetric3000Kaccording to driver24VDC
      90E65ø2x307cmcable 2m; driver not includedtube length, 1-10V, DALI, DMX, Casambi
      PolycarbonateCode/ColorBBOK0930241WPC transparentConnectors kit IP68DIMENSIONS-CODESDrivers 24VDC + DALI interfaceDIMENSIONS-CODES_DRIVER-24VDCDALI-INTERFACE
    • 4000K HP - asymmetric
      Linear LED42W4980lmDirect asymmetric4000Kaccording to driver24VDC
      90D65ø2x307cmcable 2m; driver not includedtube length, 1-10V, DALI, DMX, Casambi
      PolycarbonateCode/ColorBBOK0930241NPC transparentConnectors kit IP68DIMENSIONS-CODESDrivers 24VDC + DALI interfaceDIMENSIONS-CODES_DRIVER-24VDCDALI-INTERFACE
  • 1m HP PLUS
    • 3000K
      Linear LED20W2600lmDirect 120°3000Kaccording to driver24VDC
      80D65ø2x107cmcable 2m; driver not includedCCT 2700K, tube length, 1-10V, DALI, DMX, Casambi
      PolycarbonateCode/ColorBBOK0910015WPC transparentConnectors kit IP68DIMENSIONS-CODESDrivers 24VDC + DALI interfaceDIMENSIONS-CODES_DRIVER-24VDCDALI-INTERFACE
    • 4000K
      Linear LED20W2600lmDirect 120°4000Kaccording to driver24VDC
      80D65ø2x107cmcable 2m; driver not includedCCT 2700K, tube length, 1-10V, DALI, DMX, Casambi
      PolycarbonateCode/ColorBBOK0910015NPC transparentConnectors kit IP68DIMENSIONS-CODESDrivers 24VDC + DALI interfaceDIMENSIONS-CODES_DRIVER-24VDCDALI-INTERFACE
  • 2m HP PLUS
    • 3000K
      Linear LED40W5200lmDirect 120°3000Kaccording to driver24VDC
      80D65ø2x207cmcable 2m; driver not includedCCT 2700K, tube length, 1-10V, DALI, DMX, Casambi
      PolycarbonateCode/ColorBBOK0920015WPC transparentConnectors kit IP68DIMENSIONS-CODESDrivers 24VDC + DALI interfaceDIMENSIONS-CODES_DRIVER-24VDCDALI-INTERFACE
    • 4000K
      Linear LED40W5200lmDirect 120°4000Kaccording to driver24VDC
      80D65ø2x207cmcable 2m; driver not includedCCT 2700K, tube length, 1-10V, DALI, DMX, Casambi
      PolycarbonateCode/ColorBBOK0920015NPC transparentConnectors kit IP68DIMENSIONS-CODESDrivers 24VDC + DALI interfaceDIMENSIONS-CODES_DRIVER-24VDCDALI-INTERFACE
  • 3m HP PLUS
    • 3000K
      Linear LED60W7800lmDirect 120°3000Kaccording to driver24VDC
      80D65ø2x307cmcable 2m; driver not includedCCT 2700K, tube length, 1-10V, DALI, DMX, Casambi
      PolycarbonateCode/ColorBBOK0930015WPC transparentConnectors kit IP68DIMENSIONS-CODESDrivers 24VDC + DALI interfaceDIMENSIONS-CODES_DRIVER-24VDCDALI-INTERFACE
    • 4000K
      Linear LED60W7800lmDirect 120°4000Kaccording to driver24VDC
      80D65ø2x307cmcable 2m; driver not includedCCT 2700K, tube length, 1-10V, DALI, DMX, Casambi
      PolycarbonateCode/ColorBBOK0930015NPC transparentConnectors kit IP68DIMENSIONS-CODESDrivers 24VDC + DALI interfaceDIMENSIONS-CODES_DRIVER-24VDCDALI-INTERFACE

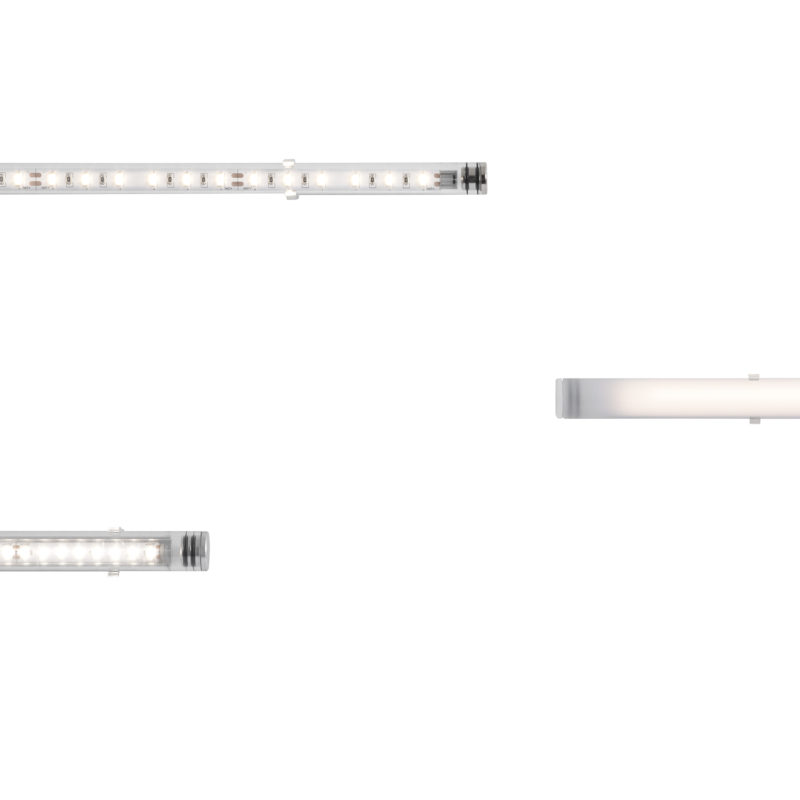

Family

MINIFLUX OPALDécouvrir
Projects

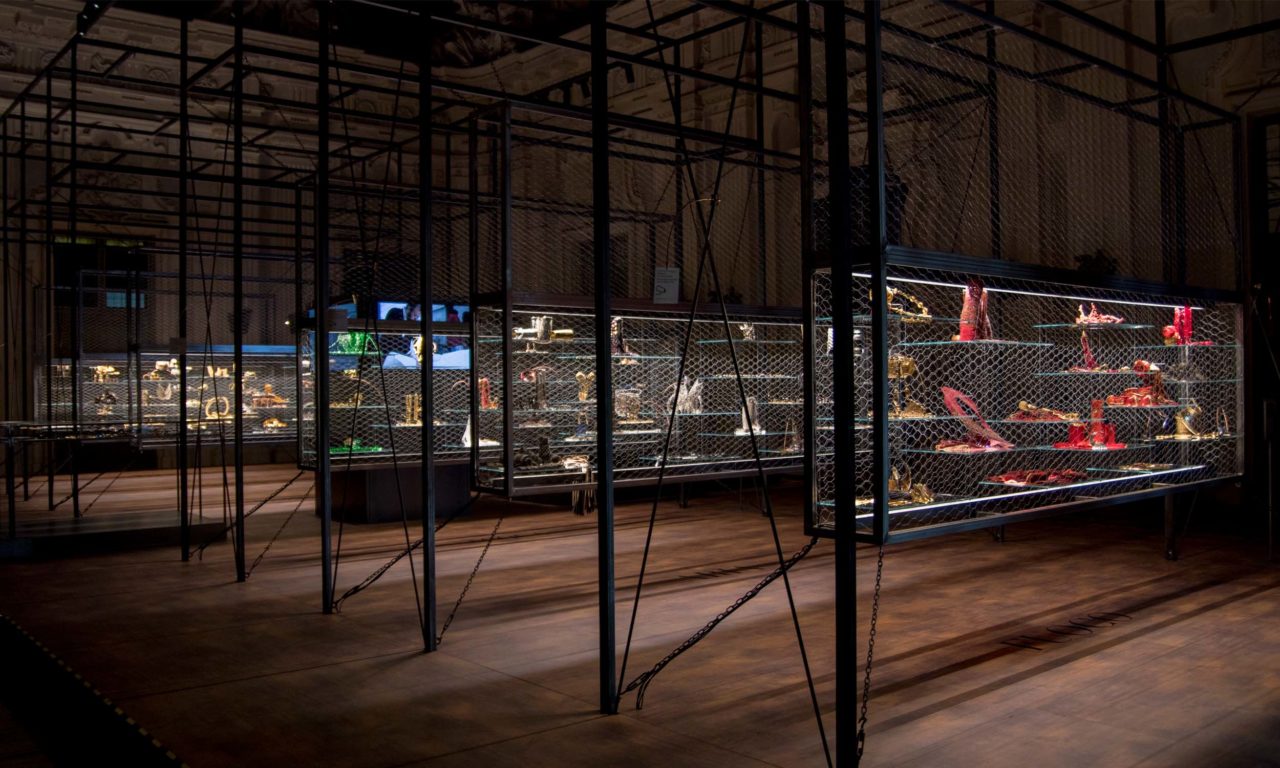

« Gianfranco Ferré. Gioielli e Ornamenti » exhibition. Palazzo Madama, Turin

Projects

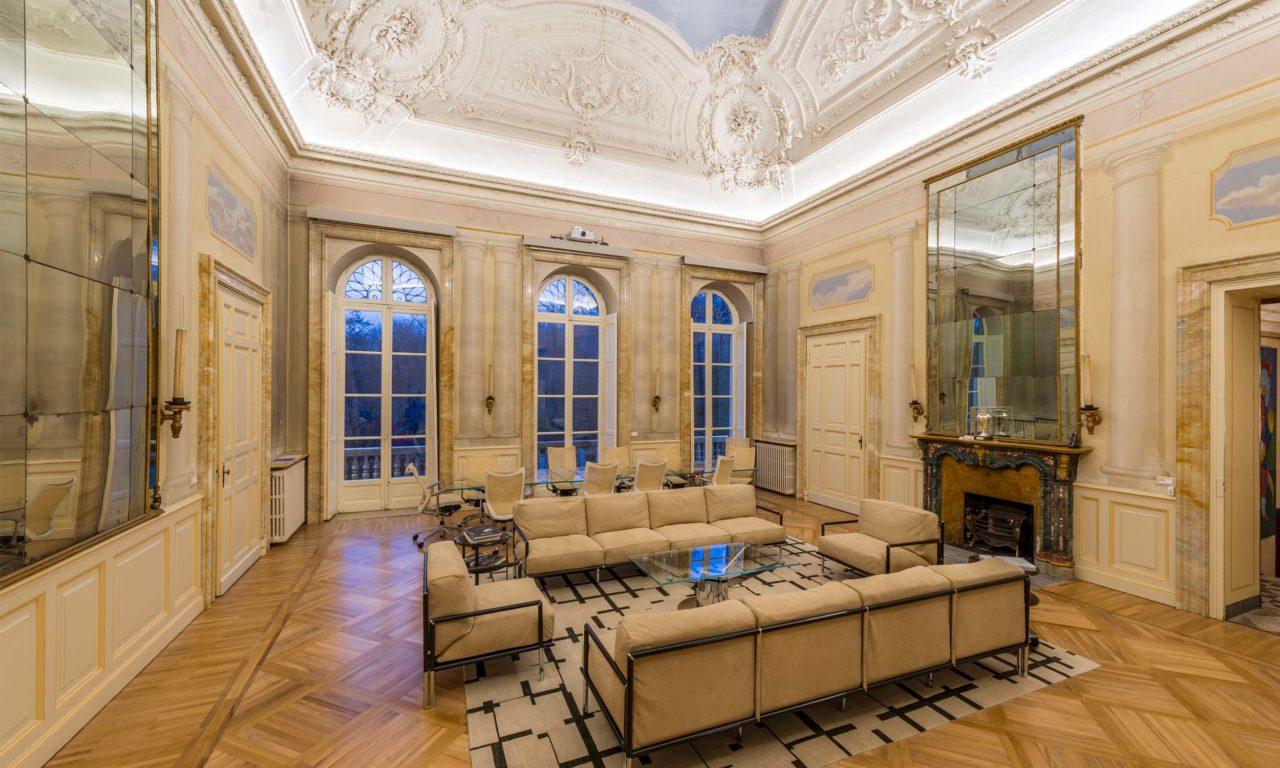

The Number 6, Turin
