GRAVITY

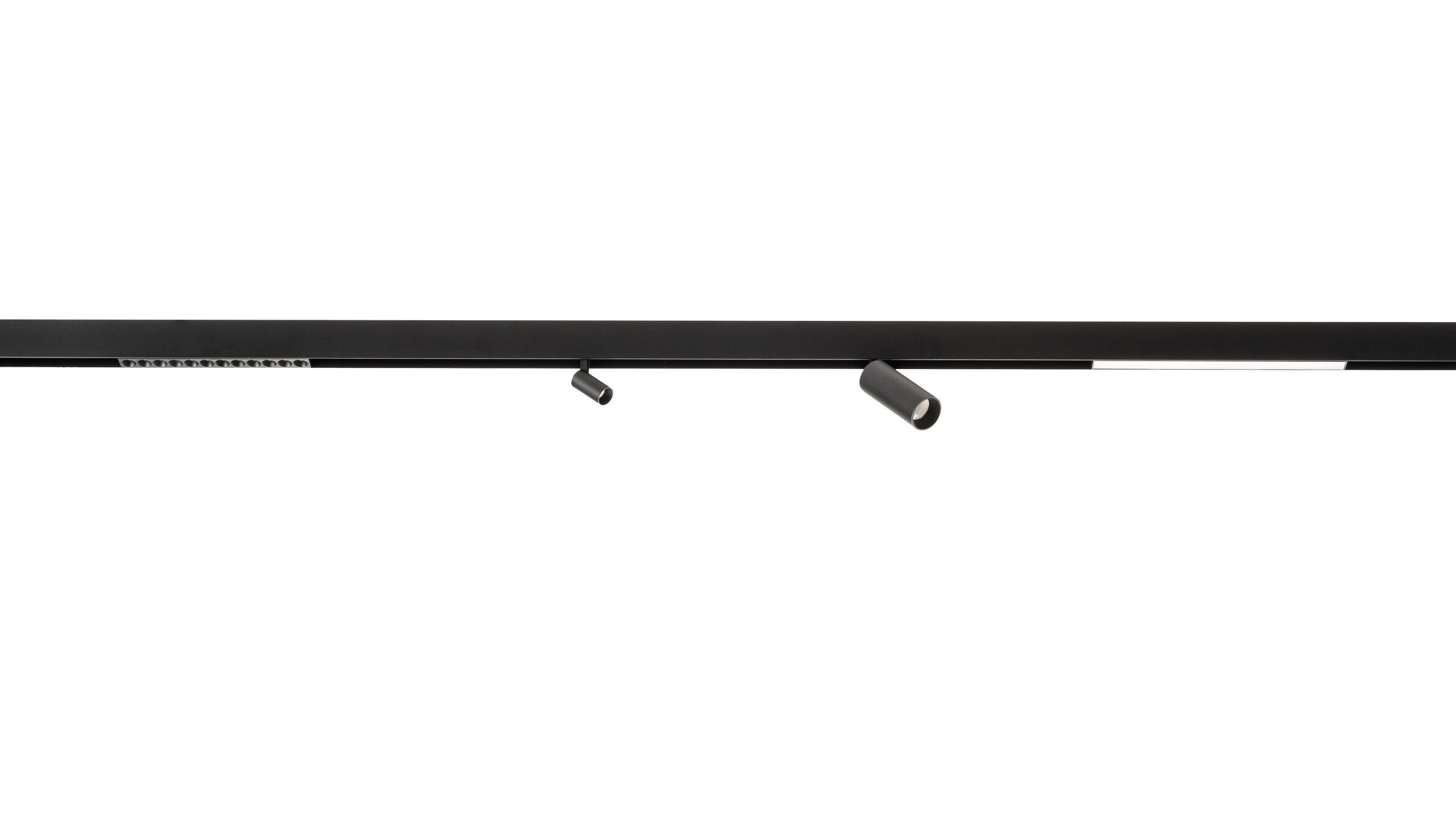

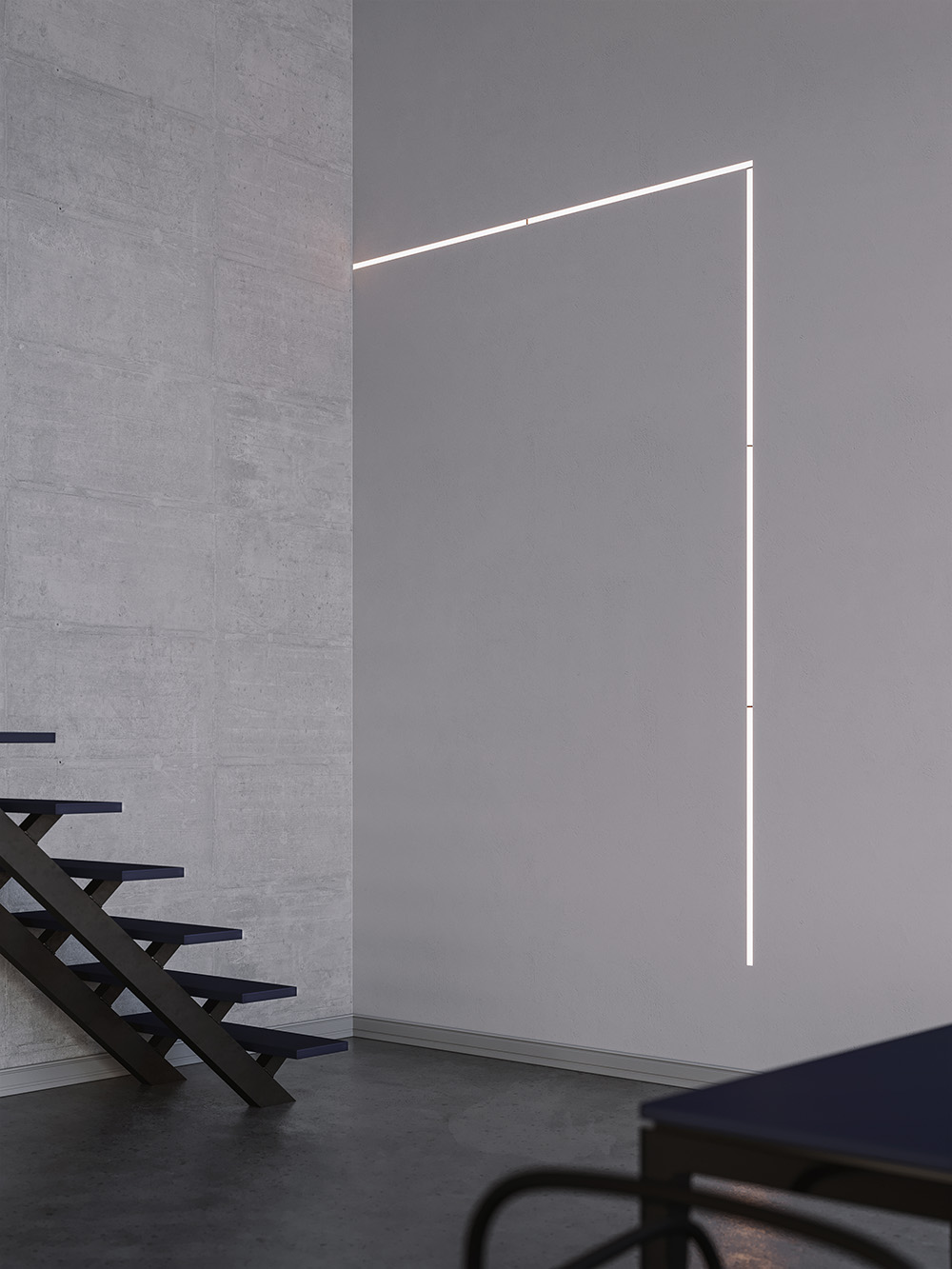

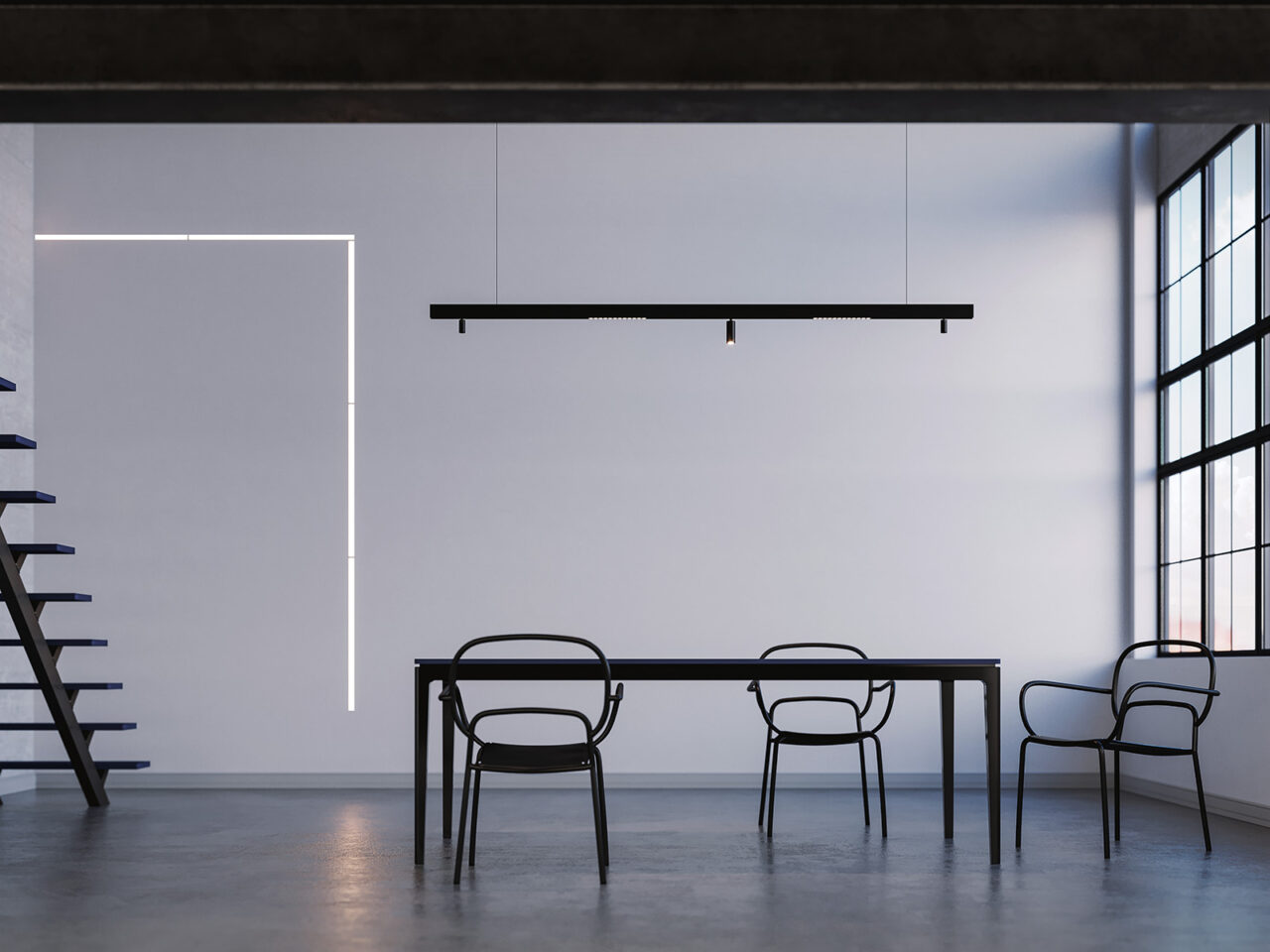

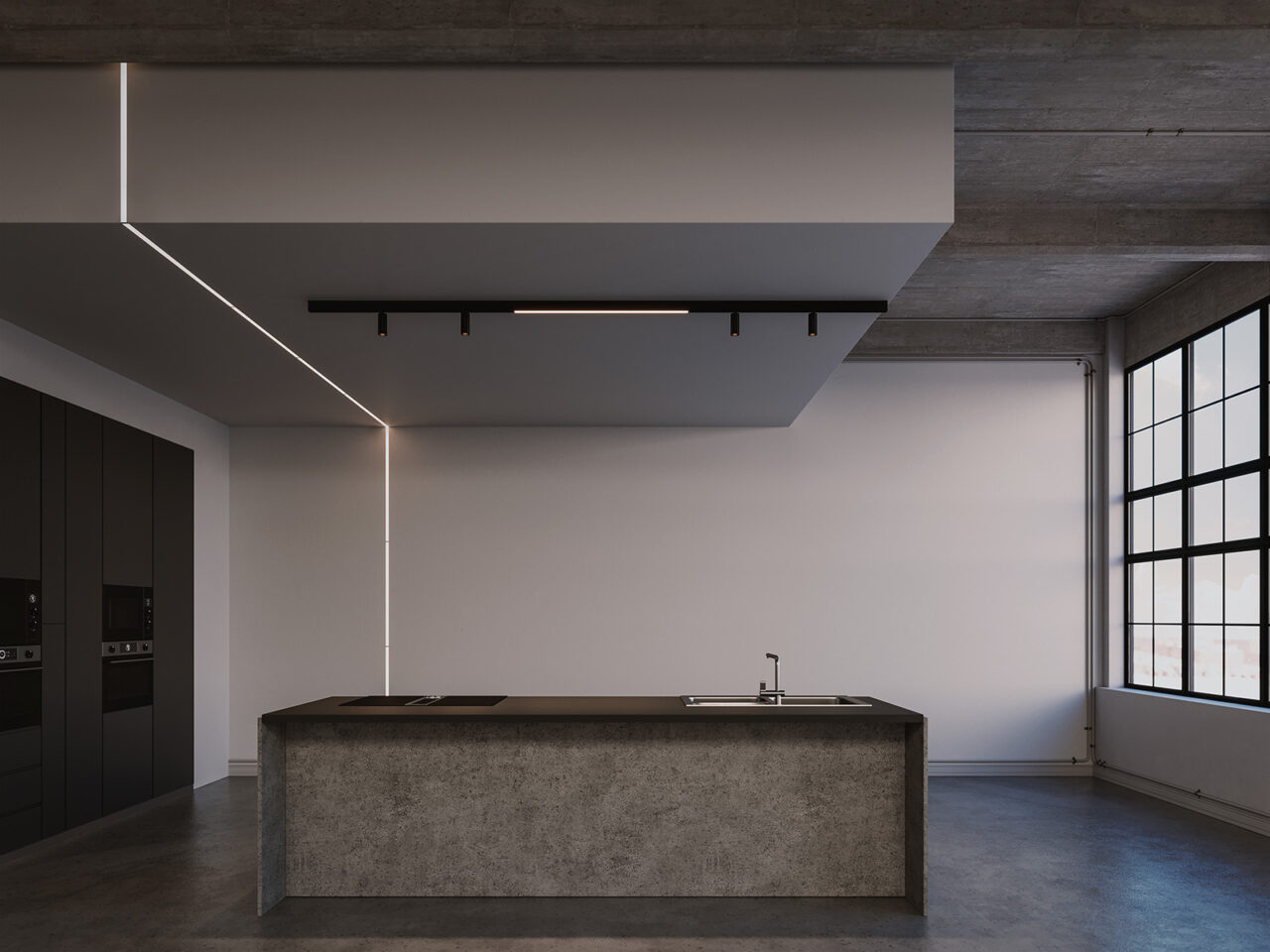

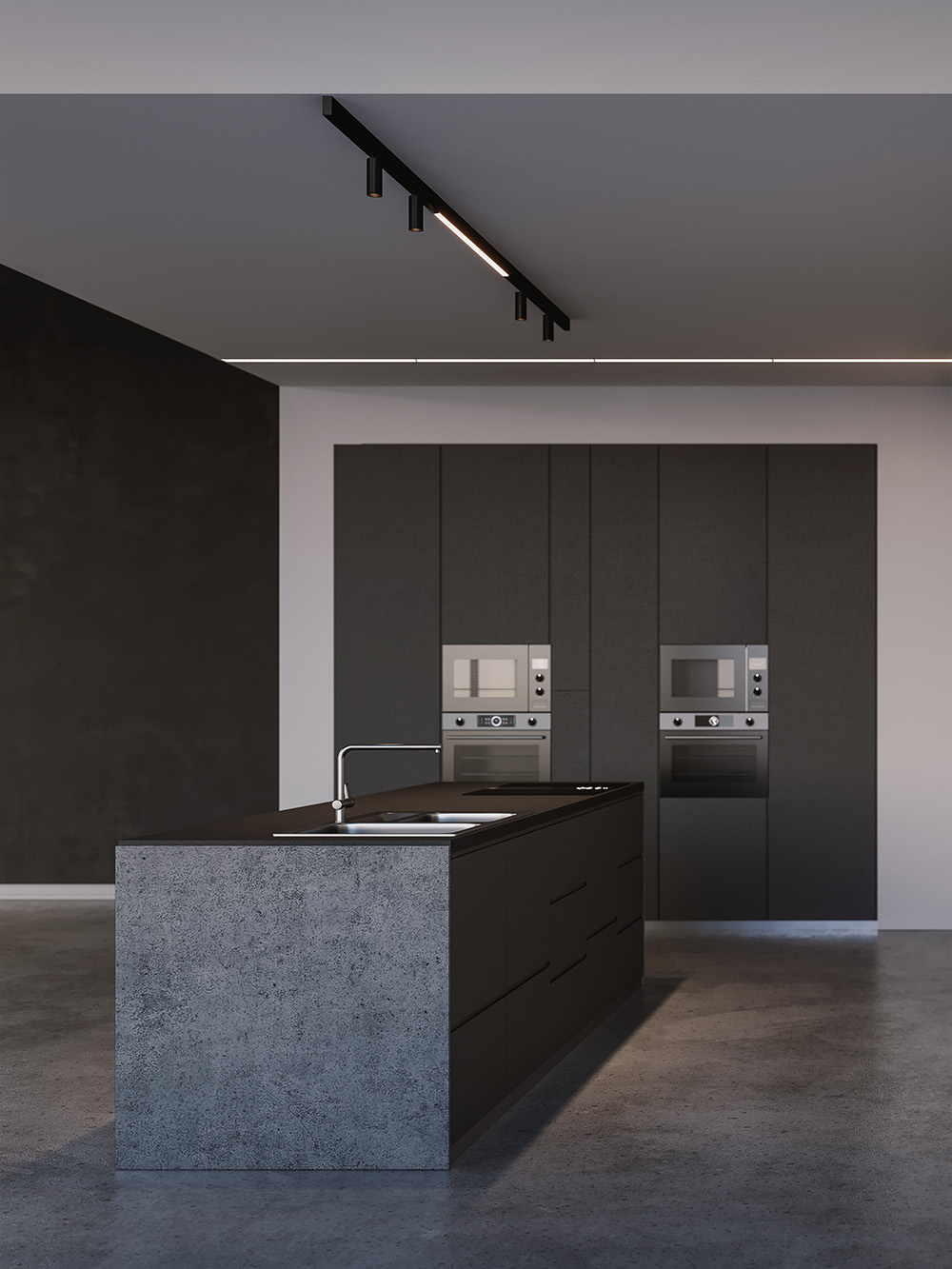

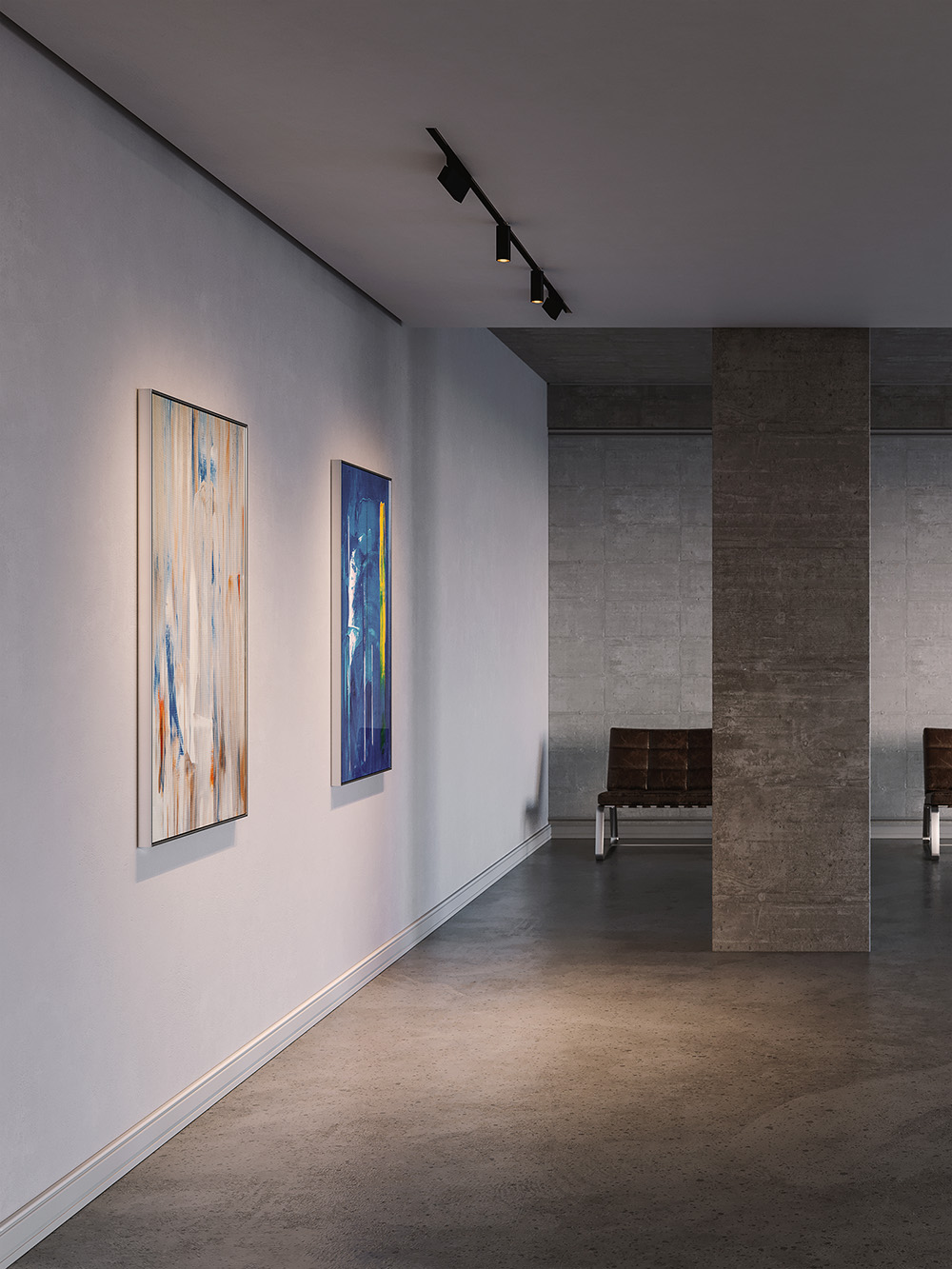

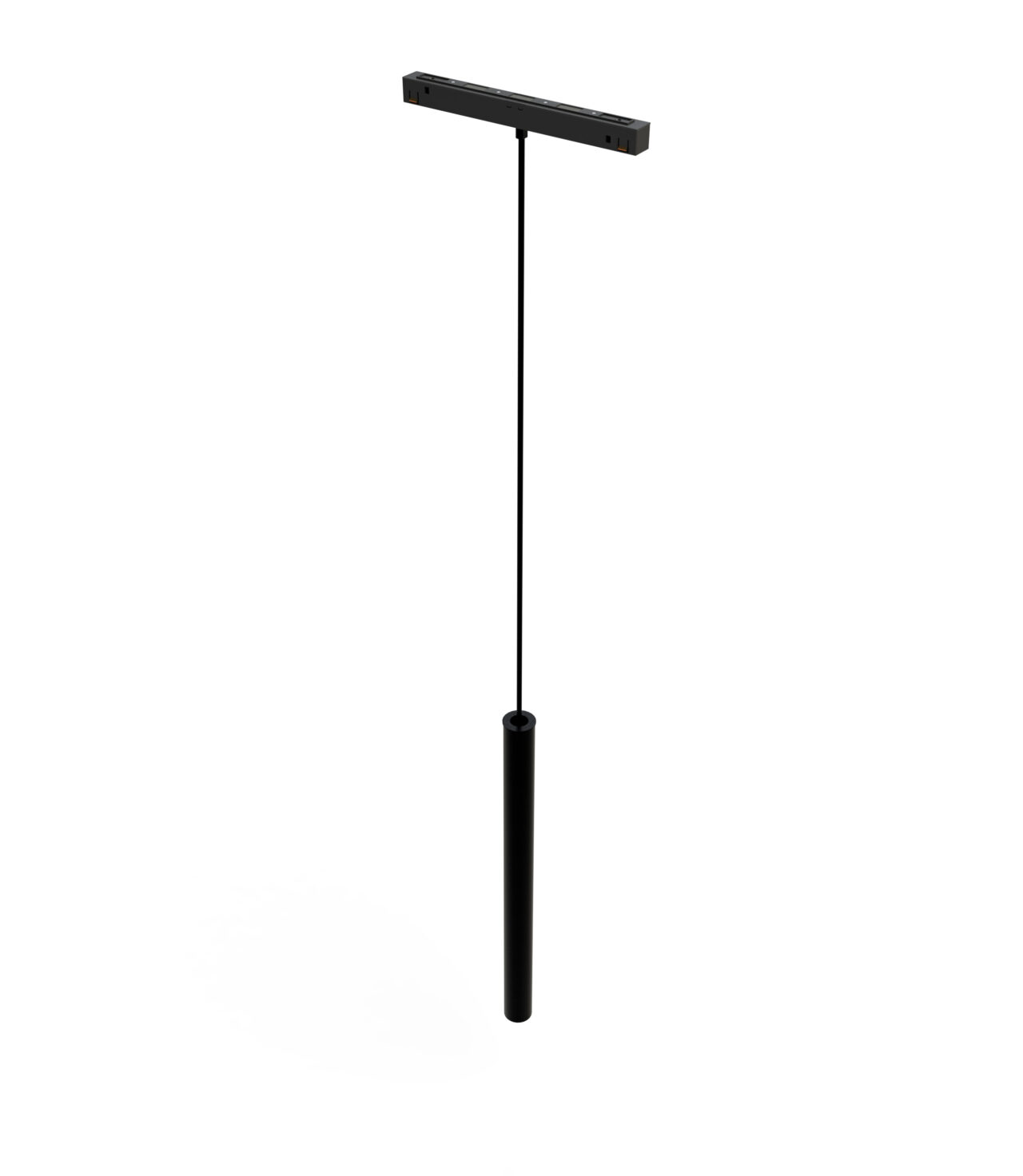

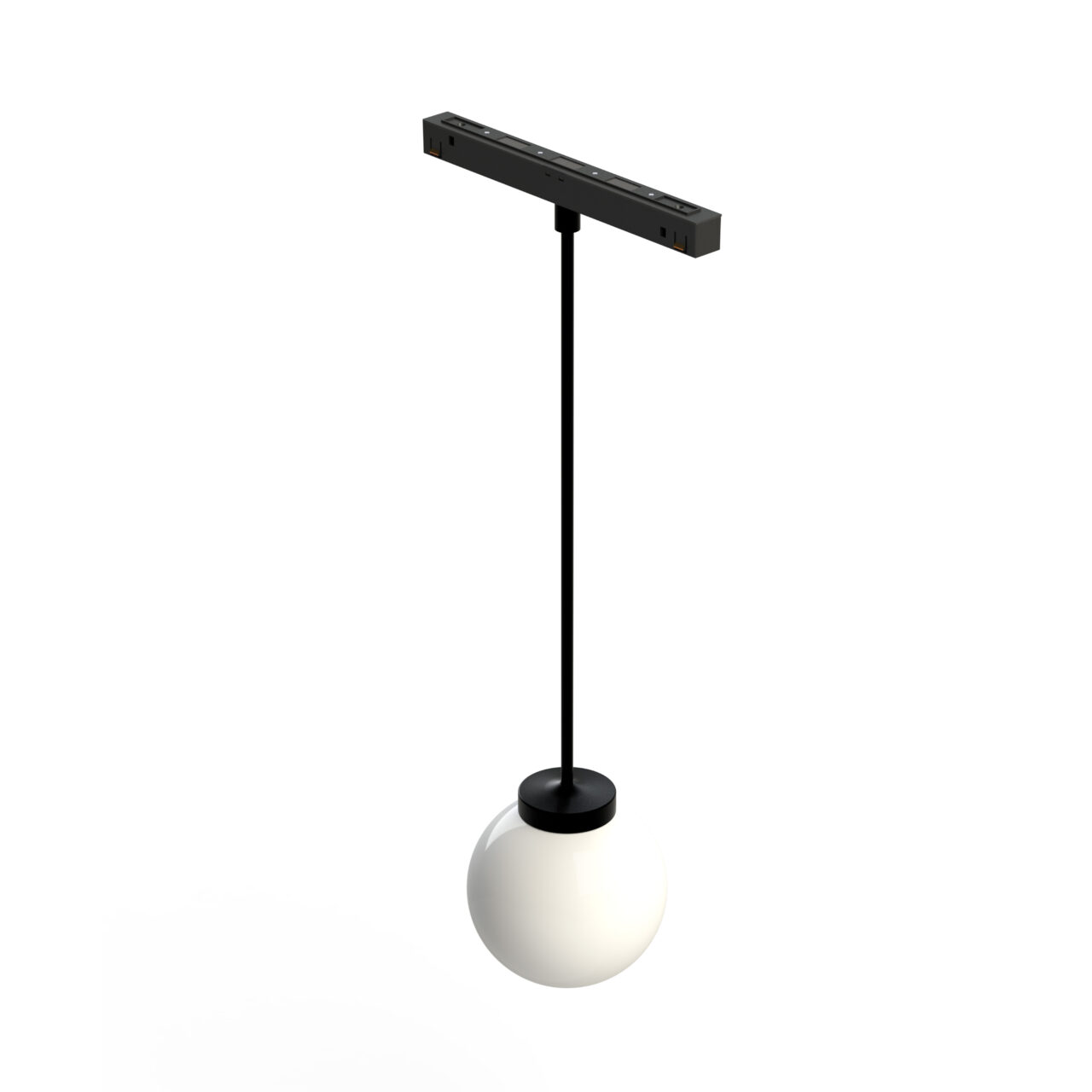

GRAVITY è il nuovo sistema magnetico della collezione FLEX. Una galassia di elementi grafici versatili e distintivi in grado di valorizzare ogni ambiente e fornire un effetto luminoso focale. Installato in modo magnetico e dotato di una sicurezza supplementare meccanica. Disponibile nelle versioni trimless, a soffitto e a sospensione, le unità lineari si alimentano a 48V e consentono l’integrazione di più soluzioni, installate tramite fissaggio magnetico e meccanico, rispondendo alle diverse esigenze d’interni. La massima flessibilità degli spot orientabili valorizza gli ambienti e la lente antiriflesso arretrata permette di ottenere un’illuminazione d’accento o diffusa. I moduli lineari presentano uno schermo opalino per un’illuminazione omogenea e accogliente. Per un elevato comfort visivo e un controllo ottimale dell’abbagliamento su tutta la superficie, il sistema è completato da unità UGR<19: recessed o fold, rispettivamente per un’emissione di luce diretta o orientabile. GRAVITY può essere installato singolarmente o in configurazioni multiple, creando figure geometriche con angoli di 90°.

Technical drawing

Versions

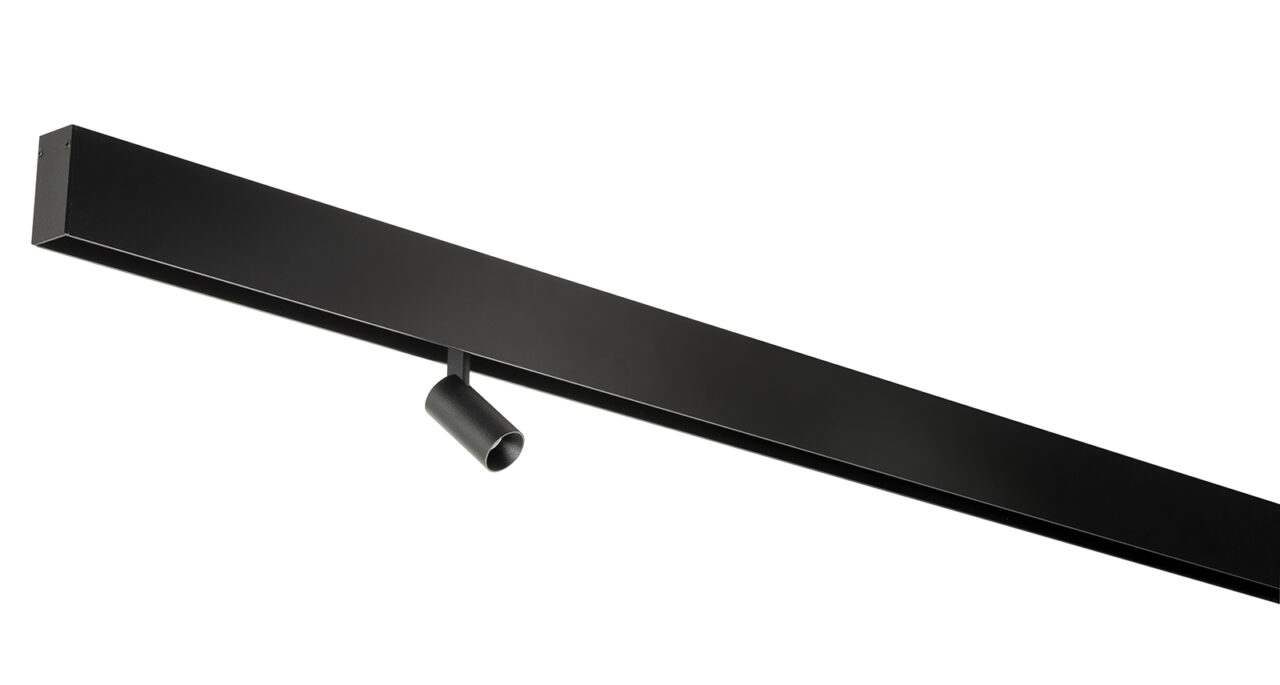

  • SPOT 3W
    • 2700K - 38°
      LED3W175lmorientable 2700KDALI48V
      9020ø2,5x18,4x10,6driver, track and accessories not included
      Aluminium + polycarbonateCode/ColorMFLE5201746DAN black
    • 3000K - 38°
      LED3W205lmorientable3000KDALI48V
      9020ø2,5x18,4x10,6driver, track and accessories not included
      Aluminium + polycarbonateCode/ColorMFLE5201746WAN black

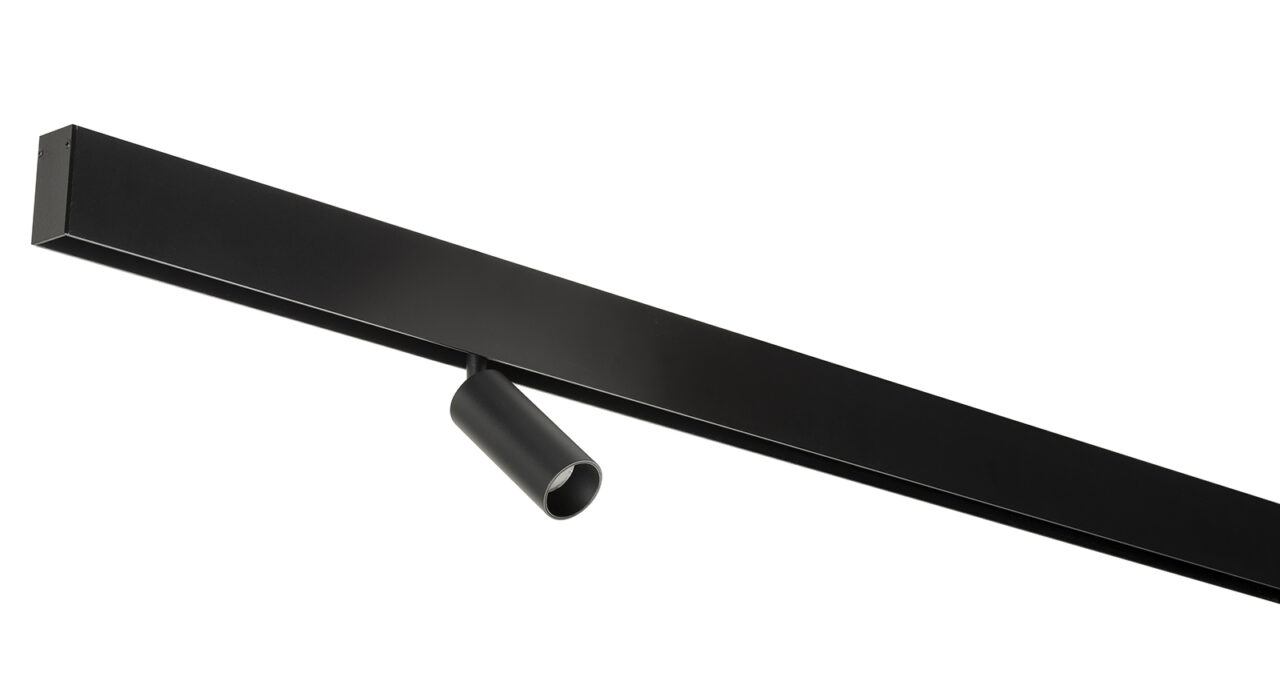

  • SPOT 8W
    • 2700K - 15°
      LED8W500lmorientable2700KDALI48V
      9020ø3,5x18,4x13,9driver, track and accessories not included
      Aluminium + polycarbonateCode/ColorMFLE5201344DAN black
    • 2700K - 38°
      LED8W630lmorientable2700KDALI48V
      9020ø3,5x18,4x13,9driver, track and accessories not included
      Aluminium + polycarbonateCode/ColorMFLE5201744DAN black
    • 3000K - 15°
      LED8W520lmorientable3000KDALI48V
      9020ø3,5x18,4x13,9driver, track and accessories not included
      Aluminium + polycarbonateCode/ColorMFLE5201344WAN black
    • 3000K - 38°
      LED8W665lmorientable3000KDALI48V
      9020ø3,5x18,4x13,9driver, track and accessories not included
      Aluminium + polycarbonateCode/ColorMFLE5201744WAN black

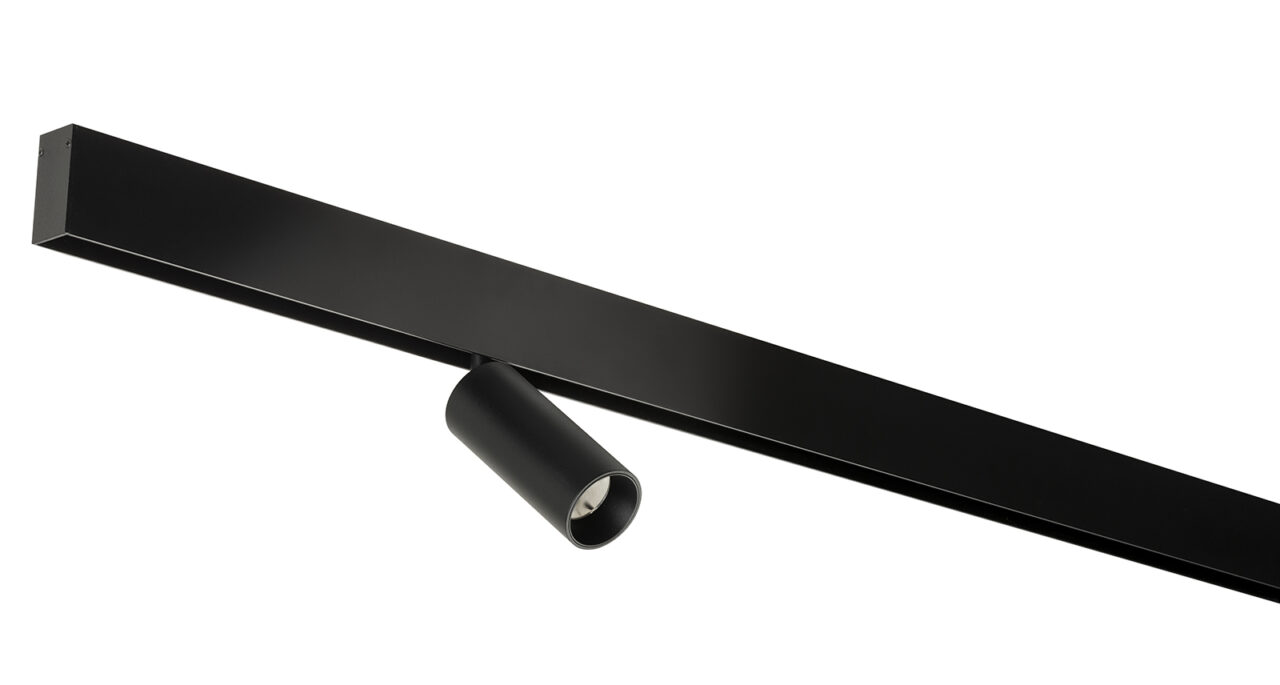

  • SPOT 12W
    • 2700K - 15°
      LED12W900lmorientable2700KDALI48V
      9020ø4,5x18,4x16,4driver, track and accessories not included
      Aluminium + polycarbonateCode/ColorMFLE5201345DAN black
    • 2700K - 38°
      LED12W890lmorientable2700KDALI48V
      9020ø4,5x18,4x16,4driver, track and accessories not included
      Aluminium + polycarbonateCode/ColorMFLE5201745DAN black
    • 3000K - 15°
      LED12W965lmorientable3000KDALI48V
      9020ø4,5x18,4x16,4driver, track and accessories not included
      Aluminium + polycarbonateCode/ColorMFLE5201345WAN black
    • 3000K - 38°
      LED12W930lmorientable3000KDALI48V
      9020ø4,5x18,4x16,4driver, track and accessories not included
      Aluminium + polycarbonateCode/ColorMFLE5201745WAN black

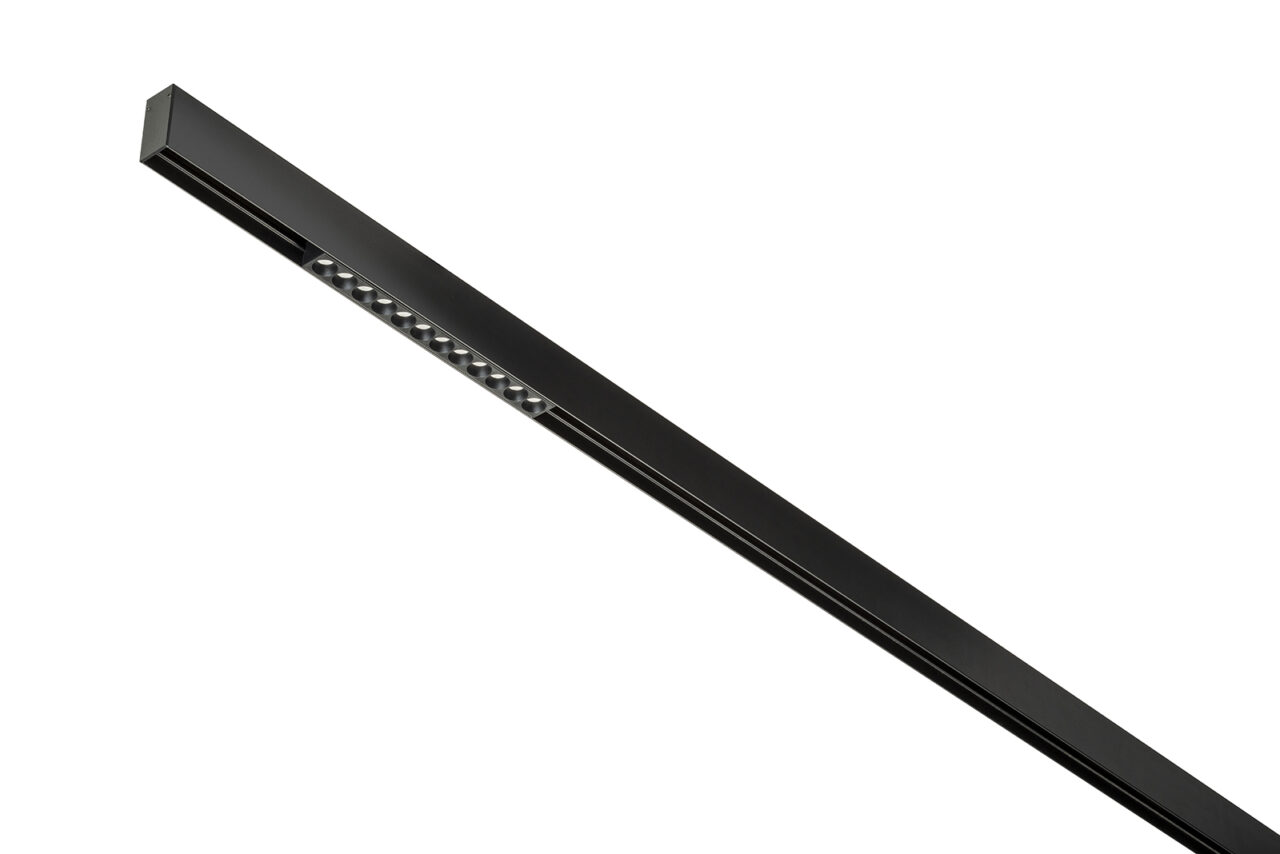

  • UGR LINE
    • 2700K
      LED15W1135lmdirect UGR<192700KDALI48V
      902023,2x4,3x18,4driver, track and accessories not included
      Aluminium + polycarbonateCode/ColorMFLE5302U48DAN black
    • 3000K
      LED 15W1320lmdirect UGR<193000KDALI48V
      902023,2x4,3x18,4driver, track and accessories not included
      Aluminium + polycarbonateCode/ColorMFLE5302U48WAN black

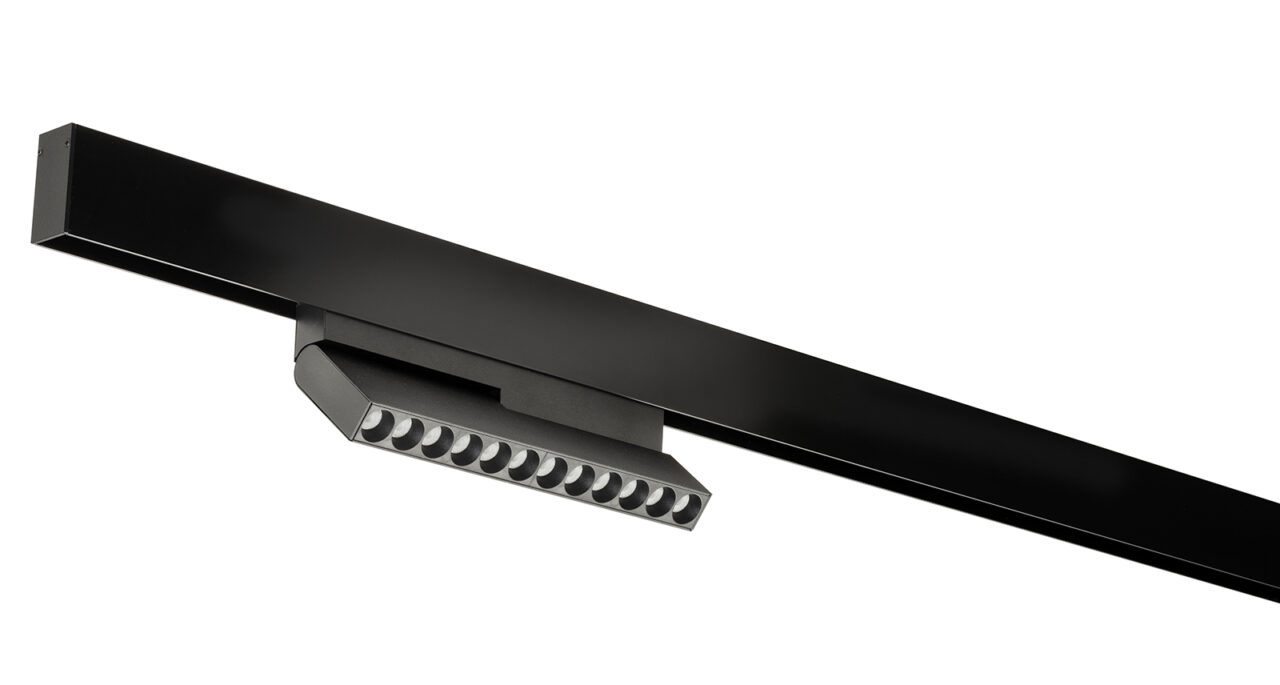

  • UGR FOLD
    • 2700K
      LED 15W 1560lmorientable UGR<192700KDALI48V
      902023,1x12x18,4driver, track and accessories not includedasymmetric optic
      Aluminium + polycarbonateCode/ColorMFLE5202T48DAN black
    • 3000K
      LED15W1610lmorientable UGR<193000KDALI48V
      902023,1x12x18,4driver, track and accessories not includedasymmetric optic
      Aluminium + polycarbonateCode/ColorMFLE5202T48WAN black

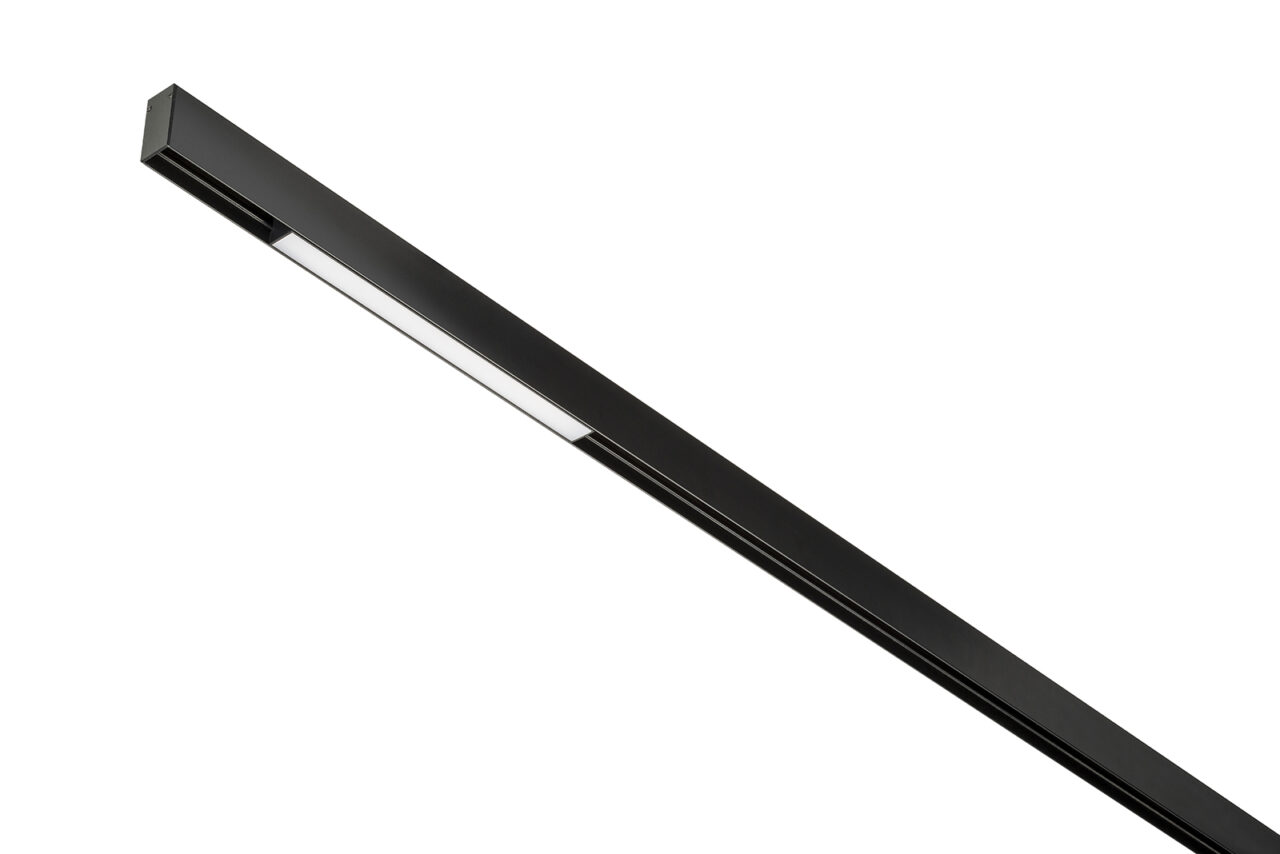

  • DASH 10W
    • 2700K
      Linear LED10W510lmdiffused2700KDALI48V
      902030,3x2,3x2,5driver, track and accessories not included
      Aluminium + polycarbonateCode/ColorMFLE5303G47DAN black
    • 3000K
      Linear LED10W515lmdiffused3000KDALI48V
      902030,3x2,3x2,5driver, track and accessories not included
      Aluminium + polycarbonateCode/ColorMFLE5303G47WAN black

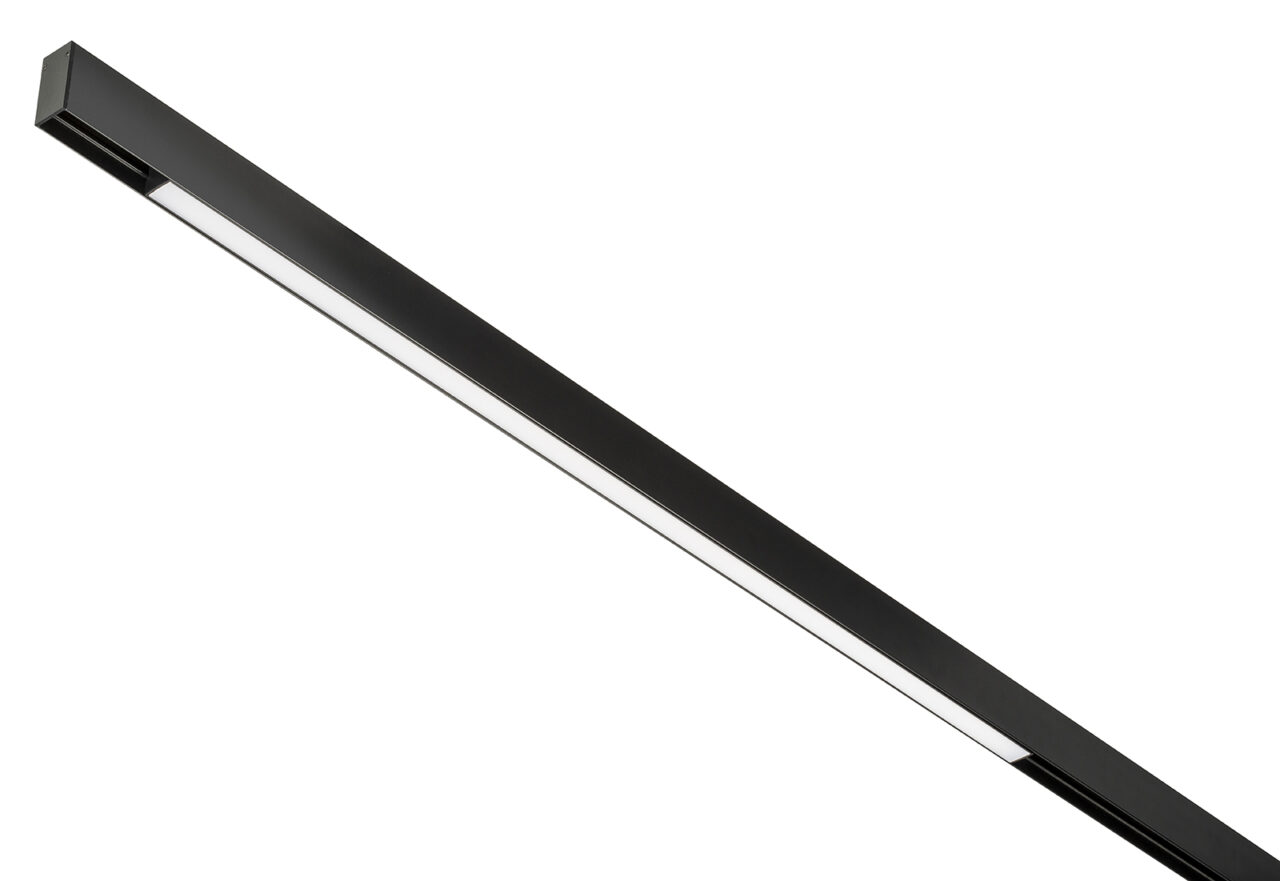

  • DASH 30W
    • 2700K
      Linear LED30W1435lmdiffused2700KDALI48V
      902090,3x2,3x2,5driver, track and accessories not included
      Aluminium + polycarbonateCode/ColorMFLE5309G47DAN black
    • 3000K
      Linear LED30W1510lmdiffused3000KDALI48V
      902090,3x2,3x2,5driver, track and accessories not included
      Aluminium + polycarbonateCode/ColorMFLE5309G47WAN black

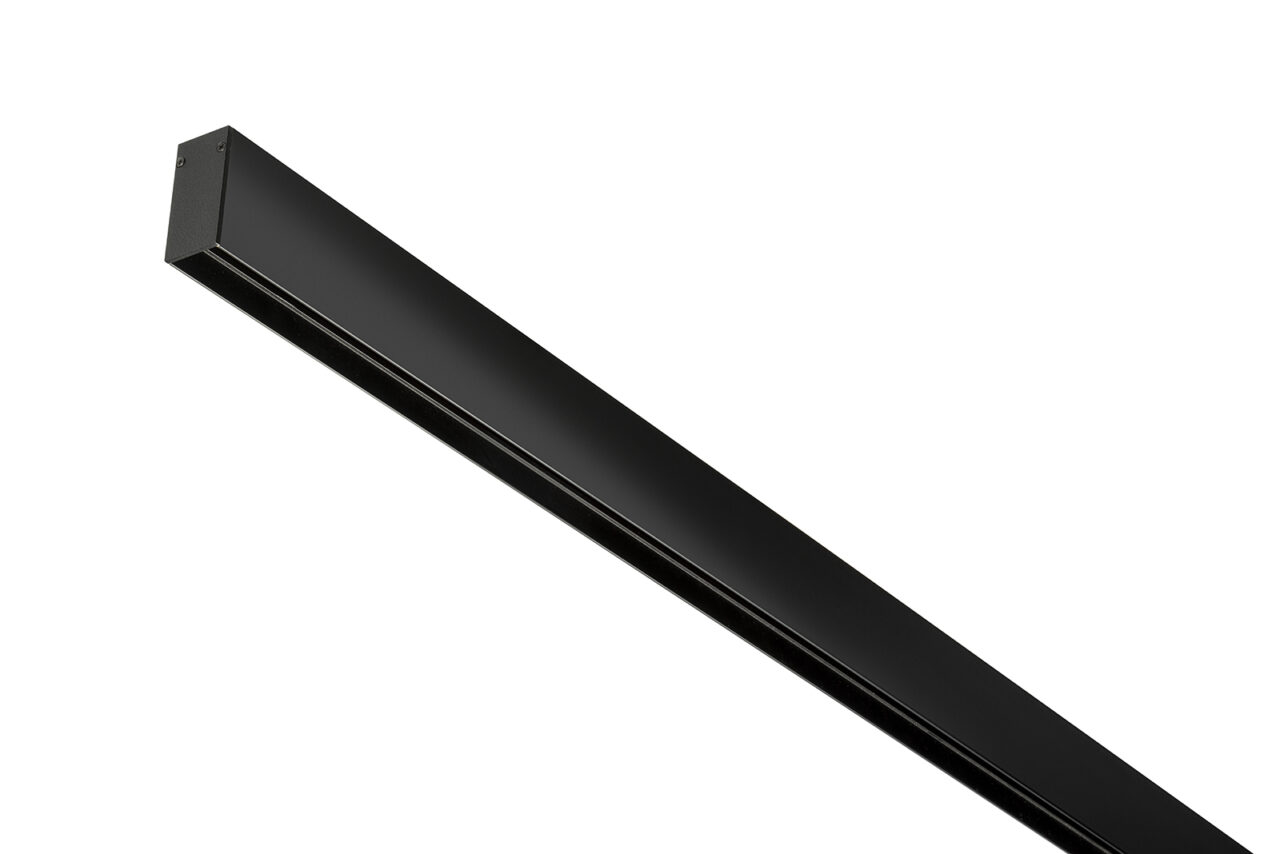

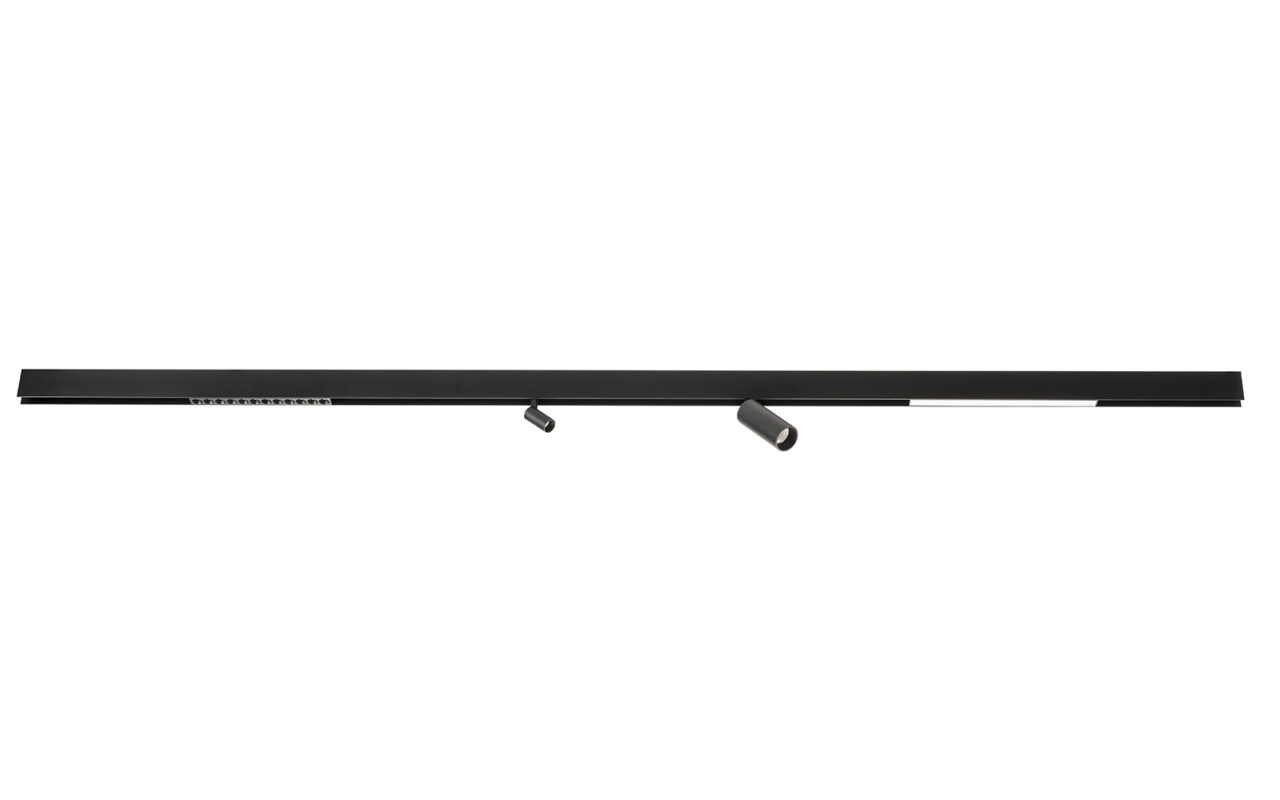

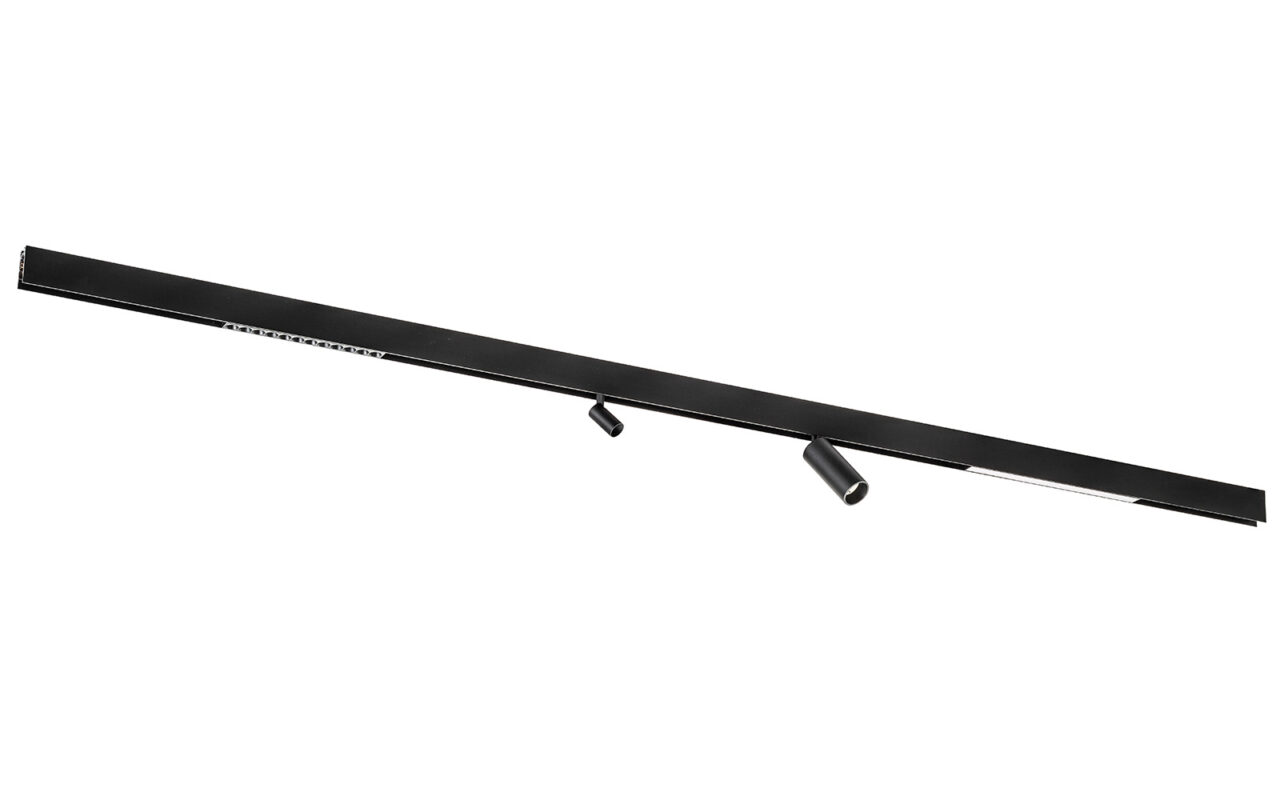

  • TRACK CEILING

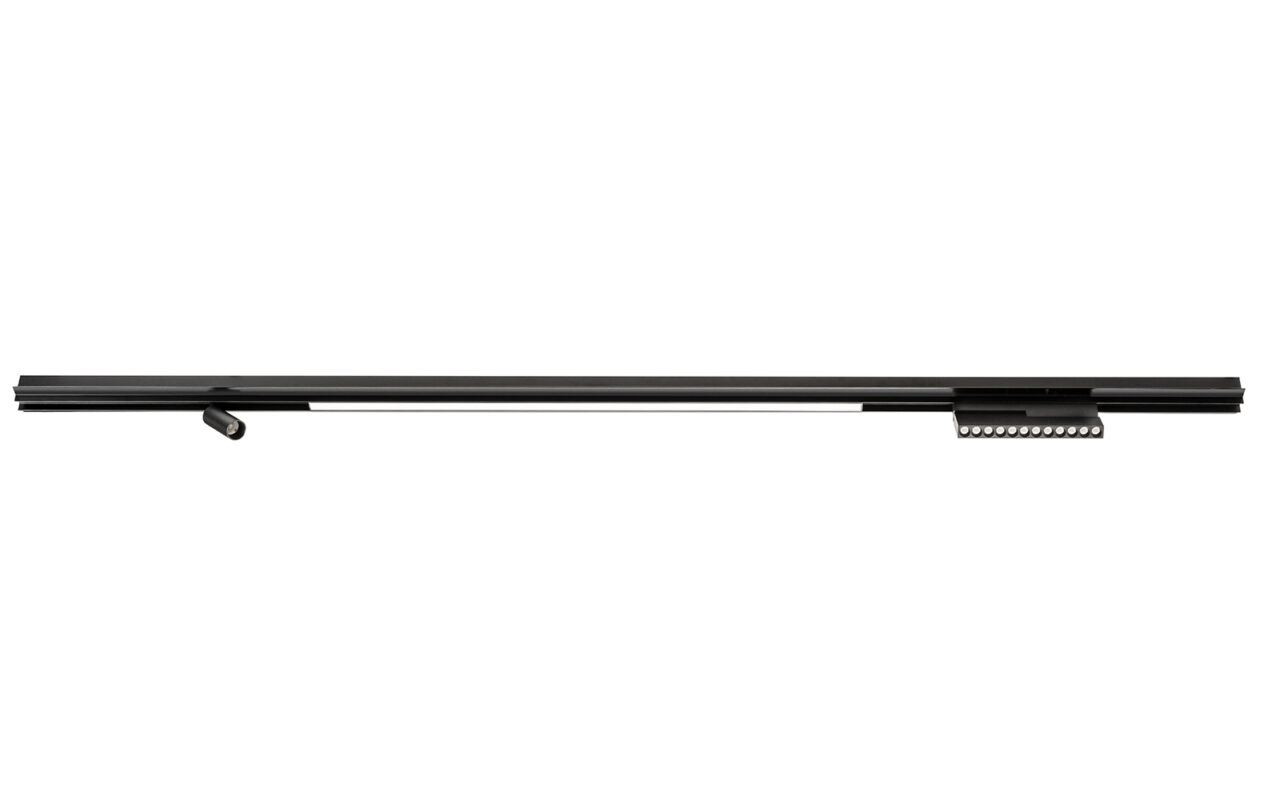

  • TRACK TRIMLESS
