Technical drawing
Versions
-

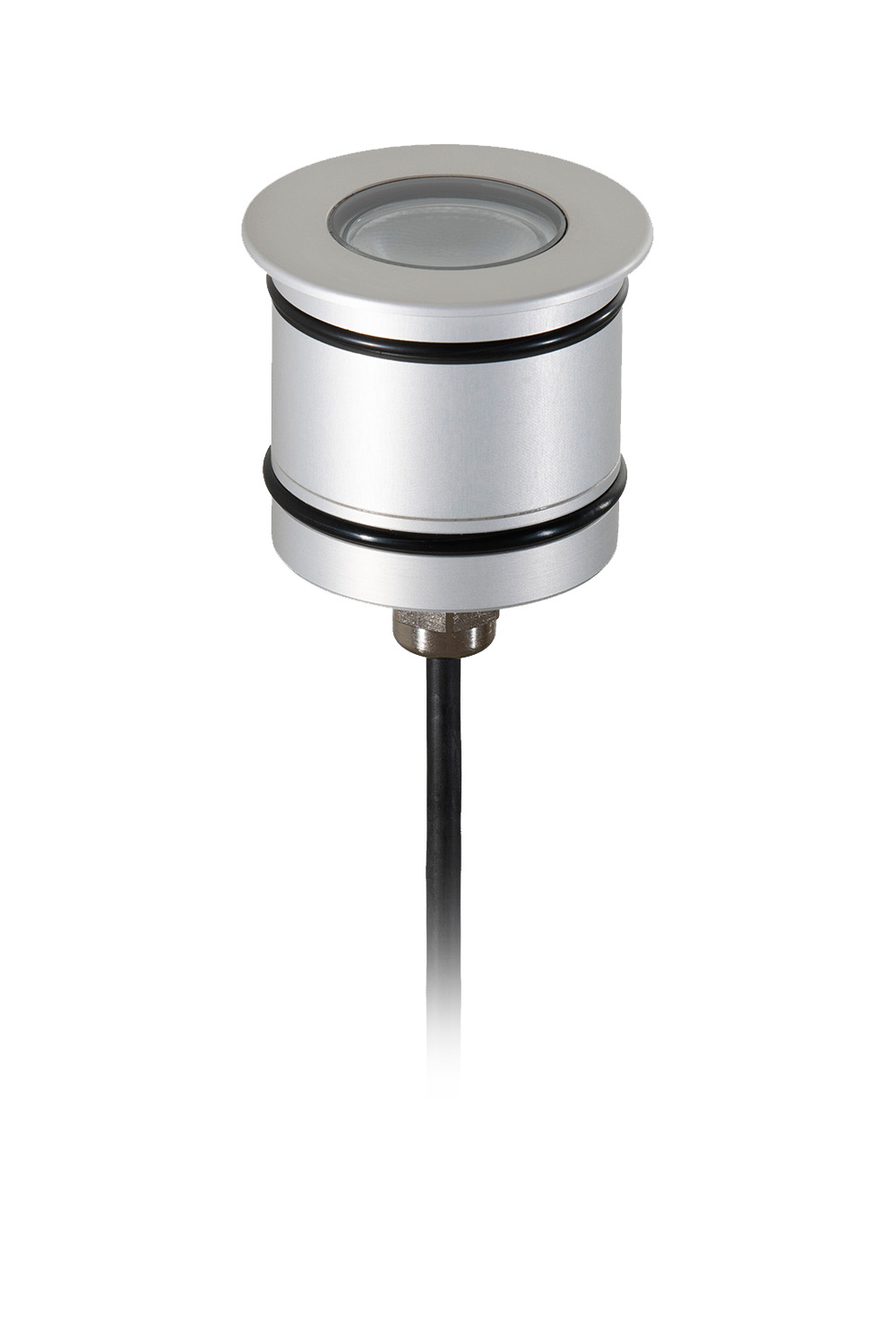

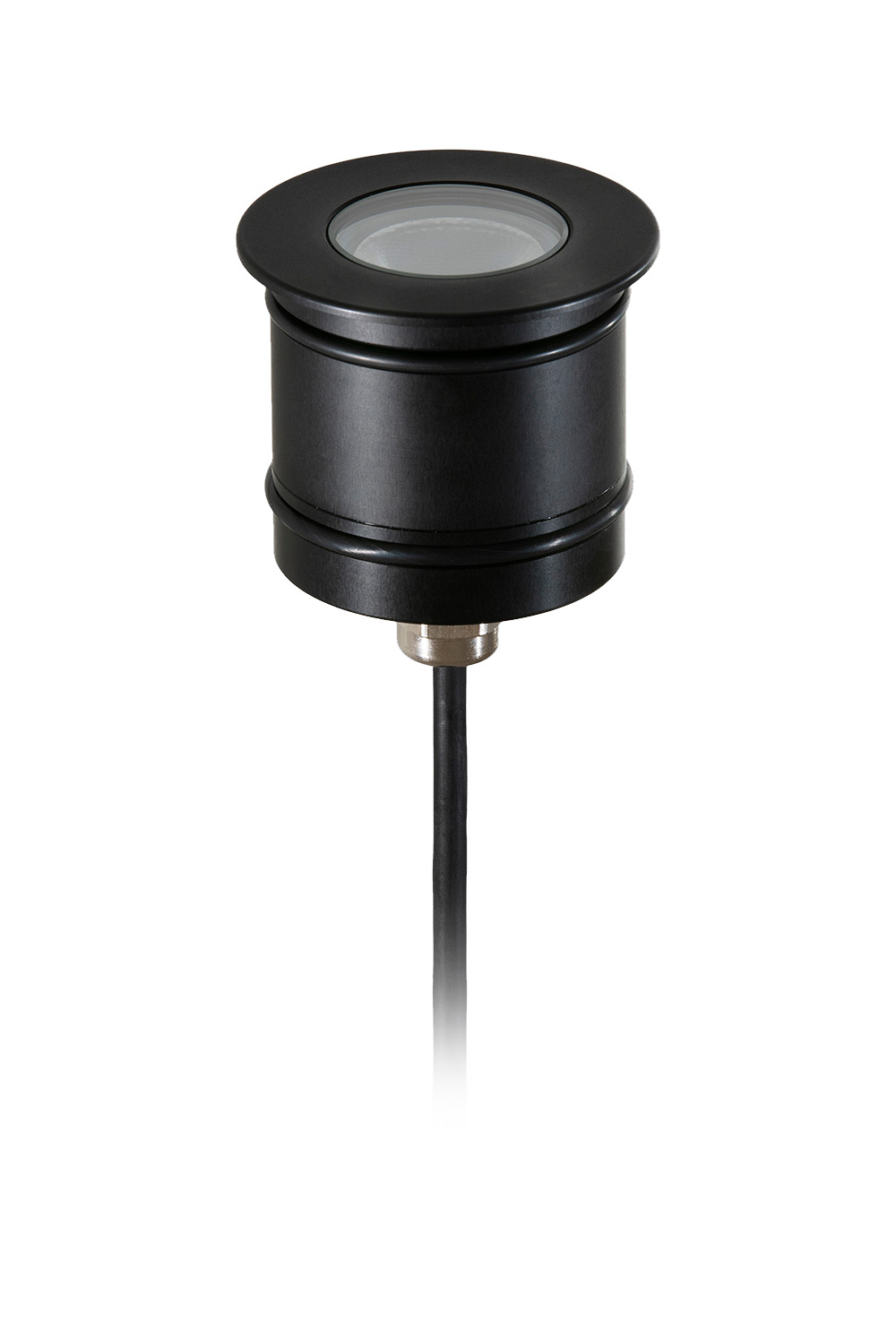

4,2W
-
3000K - 17°
LED4.2W366lmdirect3000Kaccording to driver350mA9067Ø5.25x7cable 1m, recessed box LUXCASSA4 not included, driver not included. compatible control: 1-10V, DALI, DMX, Casambi2700Kanodized aluminumCode/ColorBLUR1901N21WAA grey/transparent diffuserCode/ColorBLUR1901N21WAN black/transparent diffuserDrivers 350mADIMENSIONS-CODESRecessed boxRecessed box cassa 4DIMENSIONS-CODES
-
3000K - 46°
LED4.2W372lmdirect3000Kaccording to driver350mA9067Ø5.25x7cable 1m, recessed box LUXCASSA4 not included, driver not included. compatible control: 1-10V, DALI, DMX, Casambi2700Kanodized aluminumCode/ColorBLUR1901F21WAA grey/transparent diffuserCode/ColorBLUR1901F21WAN black/transparent diffuserDrivers 350mADIMENSIONS-CODESRecessed boxRecessed box cassa 4DIMENSIONS-CODES
-
4000K - 17°
LED4.2W366lmdirect4000Kaccording to driver350mA9067Ø5.25x7cable 1m, recessed box LUXCASSA4 not included, driver not included. compatible control: 1-10V, DALI, DMX, Casambi2700Kanodized aluminumCode/ColorBLUR1901N21NAA grey/transparent diffuserCode/ColorBLUR1901N21NAN black/transparent diffuserDrivers 350mADIMENSIONS-CODESRecessed boxRecessed box cassa 4DIMENSIONS-CODES
-
4000K - 46°
LED4.2W372lmdirect4000Kaccording to driver350mA9090Ø5.25x7cable 1m, recessed box LUXCASSA4 not included, driver not included. compatible control: 1-10V, DALI, DMX, Casambi2700Kanodized aluminumCode/ColorBLUR1901F21NAA grey/transparent diffuserCode/ColorBLUR1901F21NAN black/transparent diffuserDrivers 350mADIMENSIONS-CODESRecessed boxRecessed box cassa 4DIMENSIONS-CODES
-
3000K - 17°
-

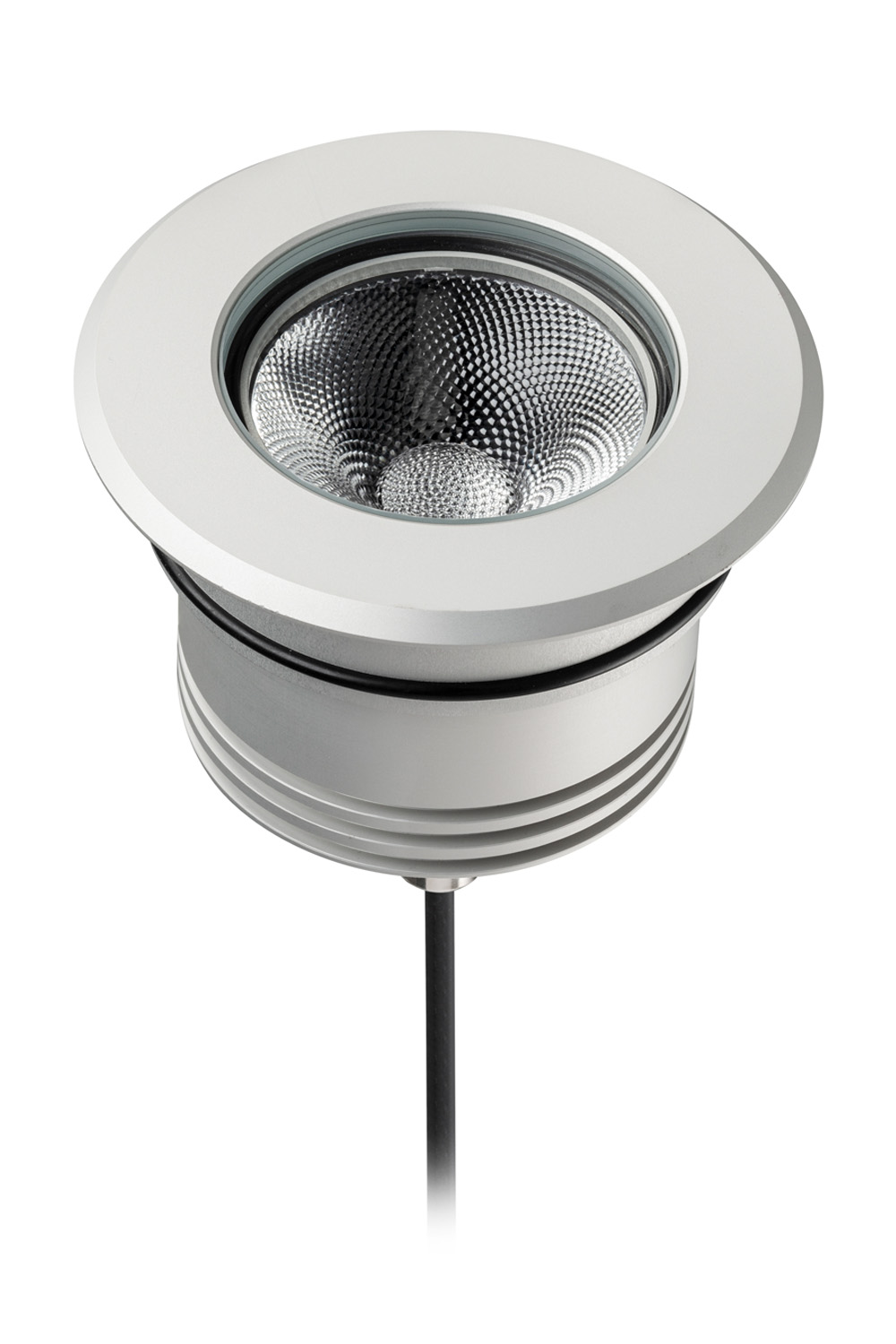

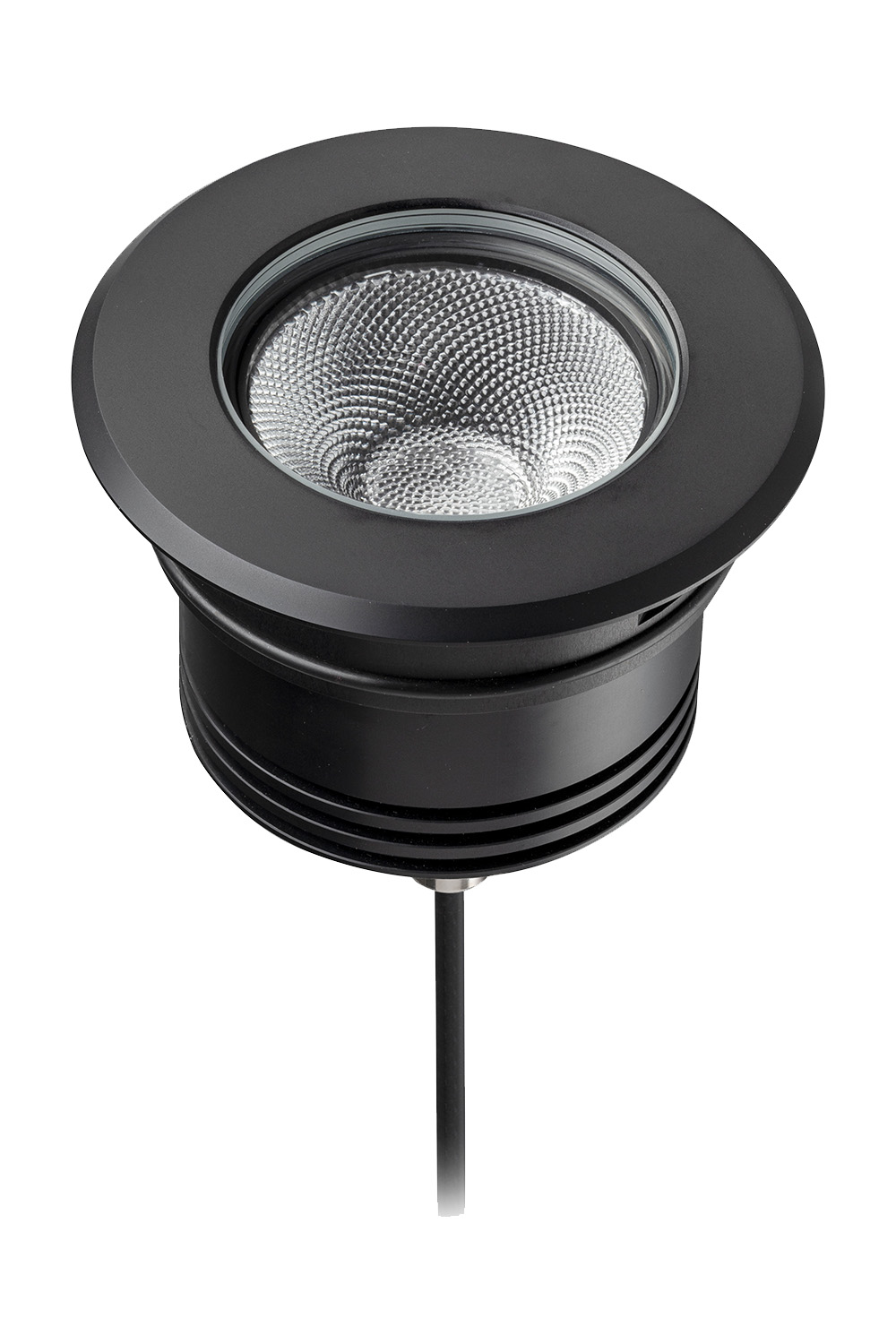

12W
-
2700K - 14°
LED spot12W1040lmdirect2700Kaccording to driver350mA>9067ø12,4x9,4cable length 2m, BLUXR12BOX and BLUXHC66 not included, driver not included. Compatible control: 1-10V, DALI, TRIAC, series connectionCode/ColorBLUR1901N43DAA greyCode/ColorBLUR1901N43DAN black
-
2700K - 53°
LED spot12W900lmdirect2700Kaccording to bulb350mA>9067ø12,4x9,4cable length 2m, BLUXR12BOX and BLUXHC66 not included, driver not included. Compatible control: 1-10V, DALI, TRIAC, series connectionCode/ColorBLUR1901H43DAA greyCode/ColorBLUR1901H43DAN black
-
3000K - 14°
LED spot12W1100lmdirect3000Kaccording to bulb350mA>9067ø12,4x9,4cable length 2m, BLUXR12BOX and BLUXHC66 not included, driver not included. Compatible control: 1-10V, DALI, TRIAC, series connectionCode/ColorBLUR1901N43WAA greyCode/ColorBLUR1901N43WAN black
-
3000K - 53°
LED spot12W950lmdirect3000Kaccording to bulb350mA>9067ø12,4x9,4cable length 2m, BLUXR12BOX and BLUXHC66 not included, driver not included. Compatible control: 1-10V, DALI, TRIAC, series connectionCode/ColorBLUR1901H43WAA greyCode/ColorBLUR1901H43WAN black
-
4000K - 14°
LED spot12W1200lmdirect4000Kaccording to bulb350mA>9067ø12,4x9,4cable length 2m, BLUXR12BOX and BLUXHC66 not included, driver not included. Compatible control: 1-10V, DALI, TRIAC, series connectionCode/ColorBLUR1901N43NAA greyCode/ColorBLUR1901N43NAN black
-
4000K - 53°
LED spot12W1050lmdirect4000Kaccording to bulb350mA<9067ø12,4x9,4cable length 2m, BLUXR12BOX and BLUXHC66 not included, driver not included. Compatible control: 1-10V, DALI, TRIAC, series connectionCode/ColorBLUR1901H43NAA greyCode/ColorBLUR1901H43NAN black
-
2700K - 14°
