FLEX CEILING

FLEX is a family of miniaturized adjustable spots dedicated to accent lighting.

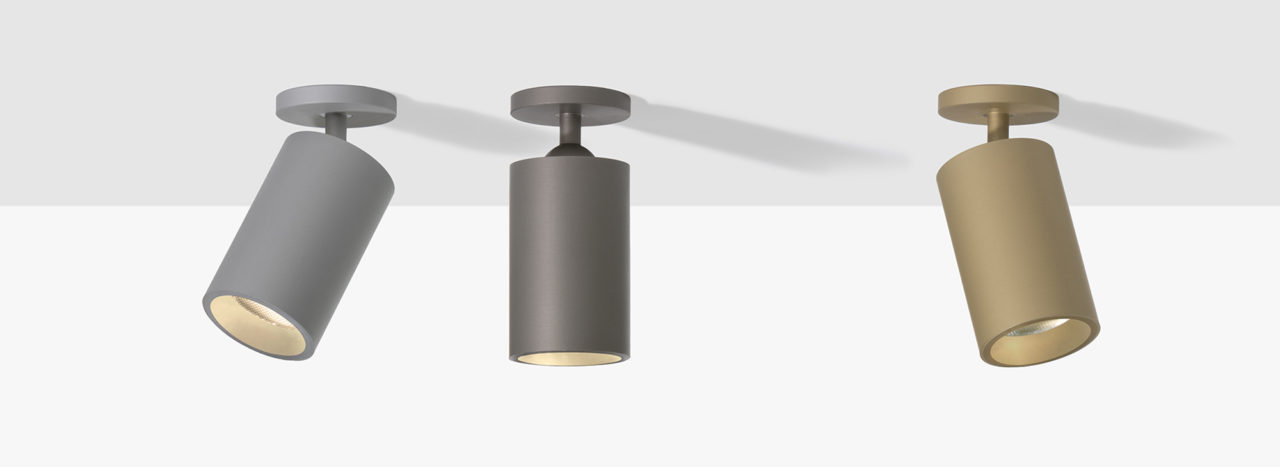

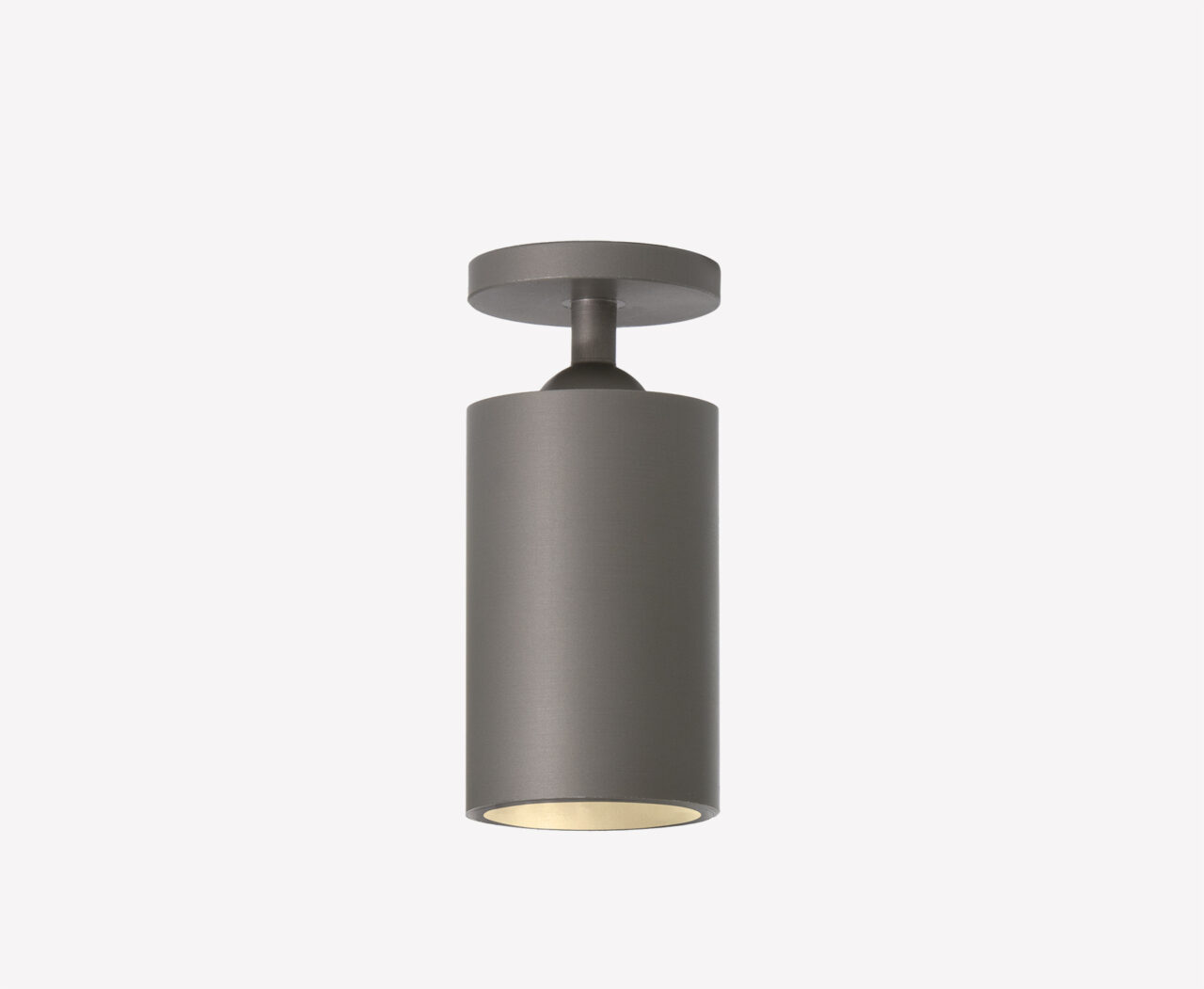

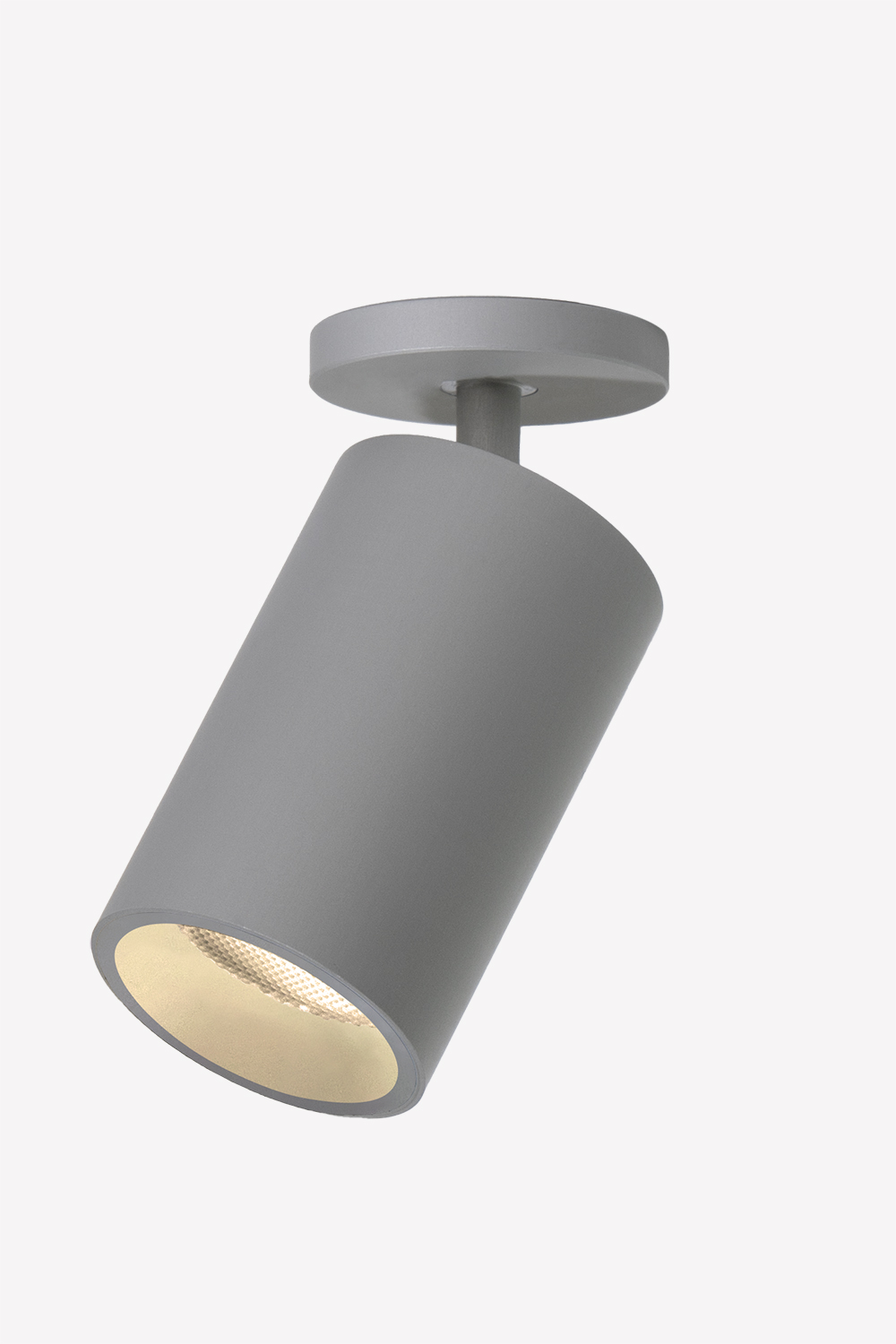

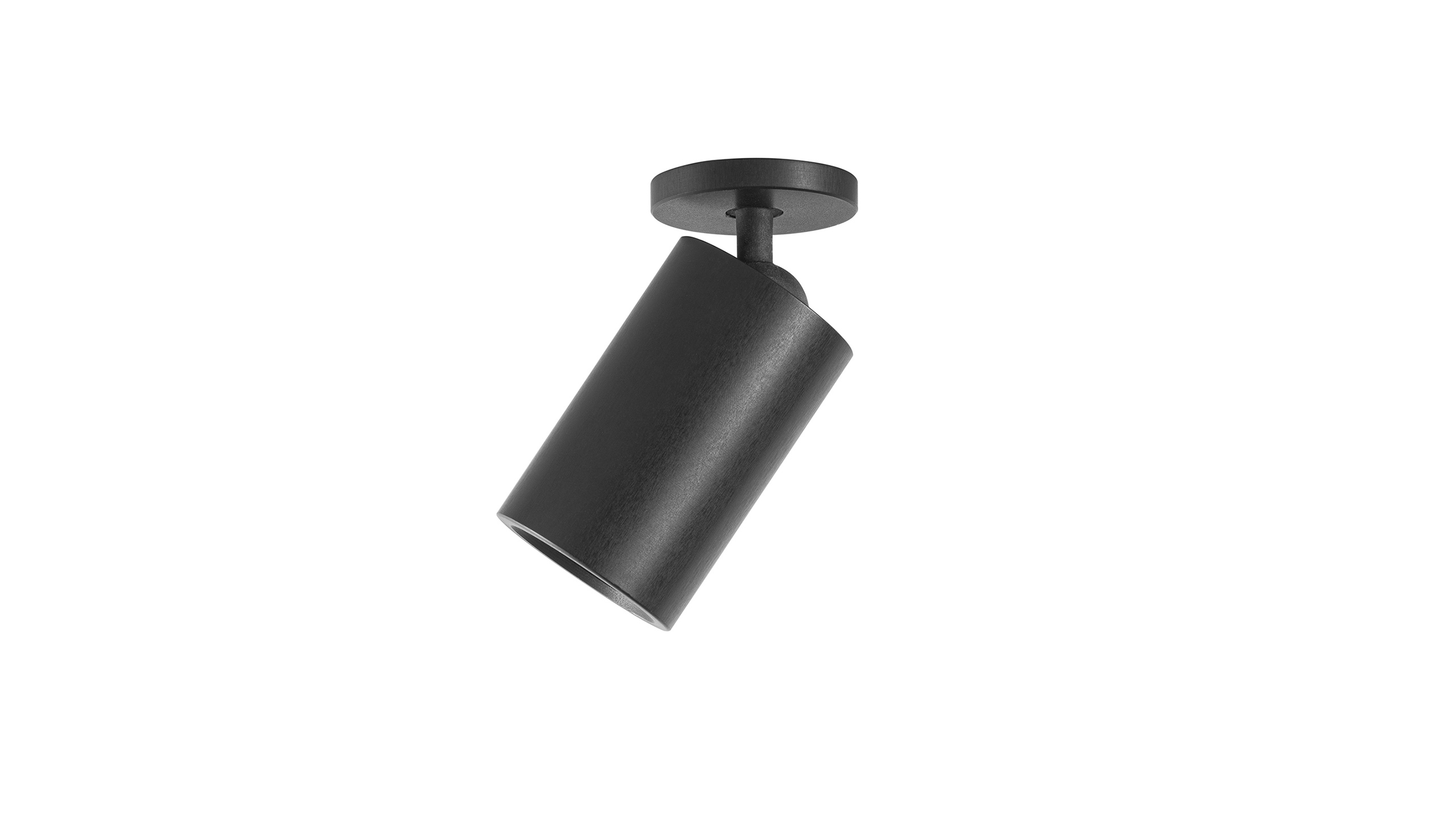

Available in numerous fixings, optics and finishes to fulfil any installation requirement. The FLEX Collection is composed of FLEX CEILING with a fixed and variable optic, different beam angles and in black, gold, anodized grey and bronze grey finish, and FLEX TRACK, a magnetic/mechanic spot system in black anodized aluminium. The integrated aluminium joint allows fixation and orientation without any visible cable.

Technical drawing

Versions

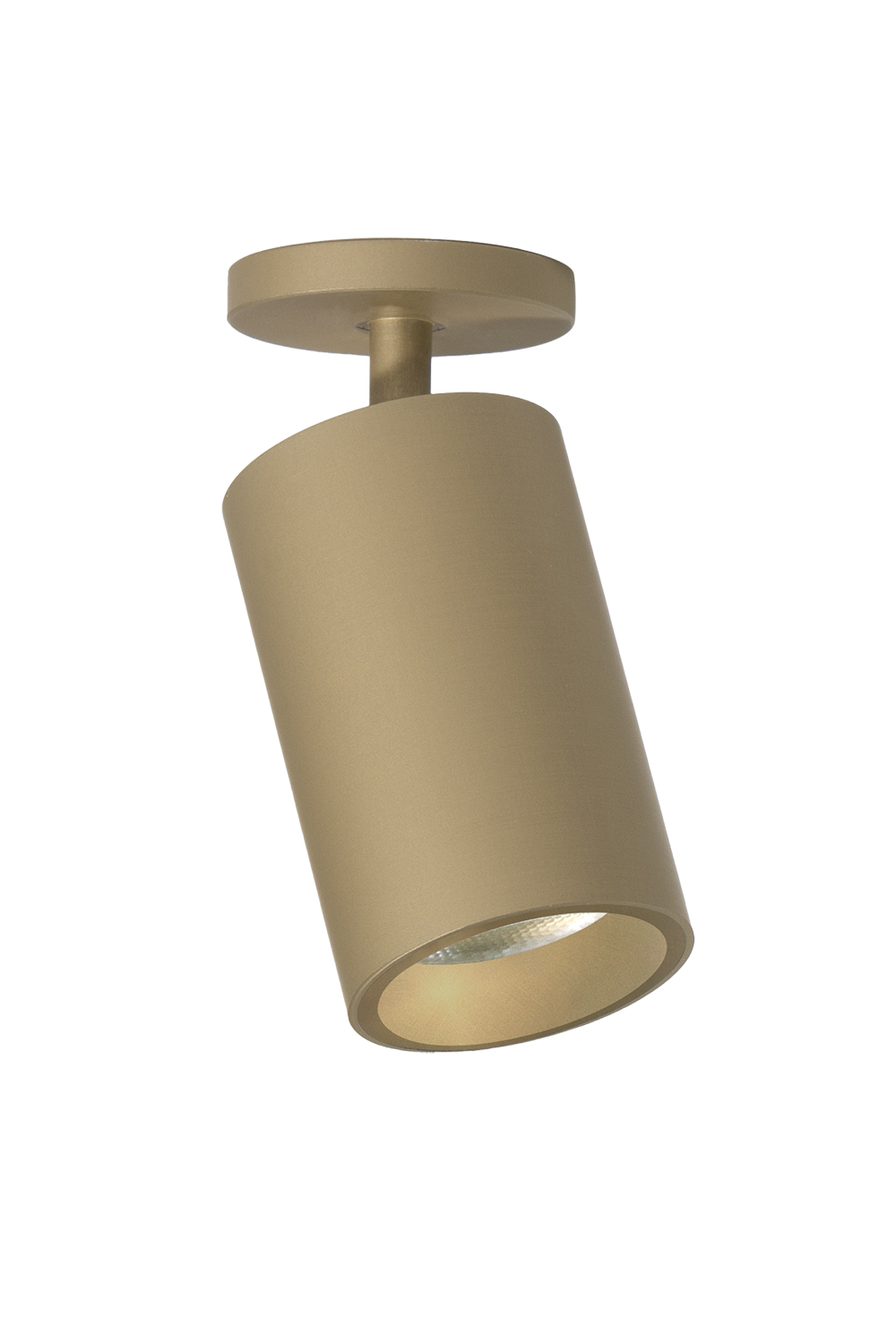

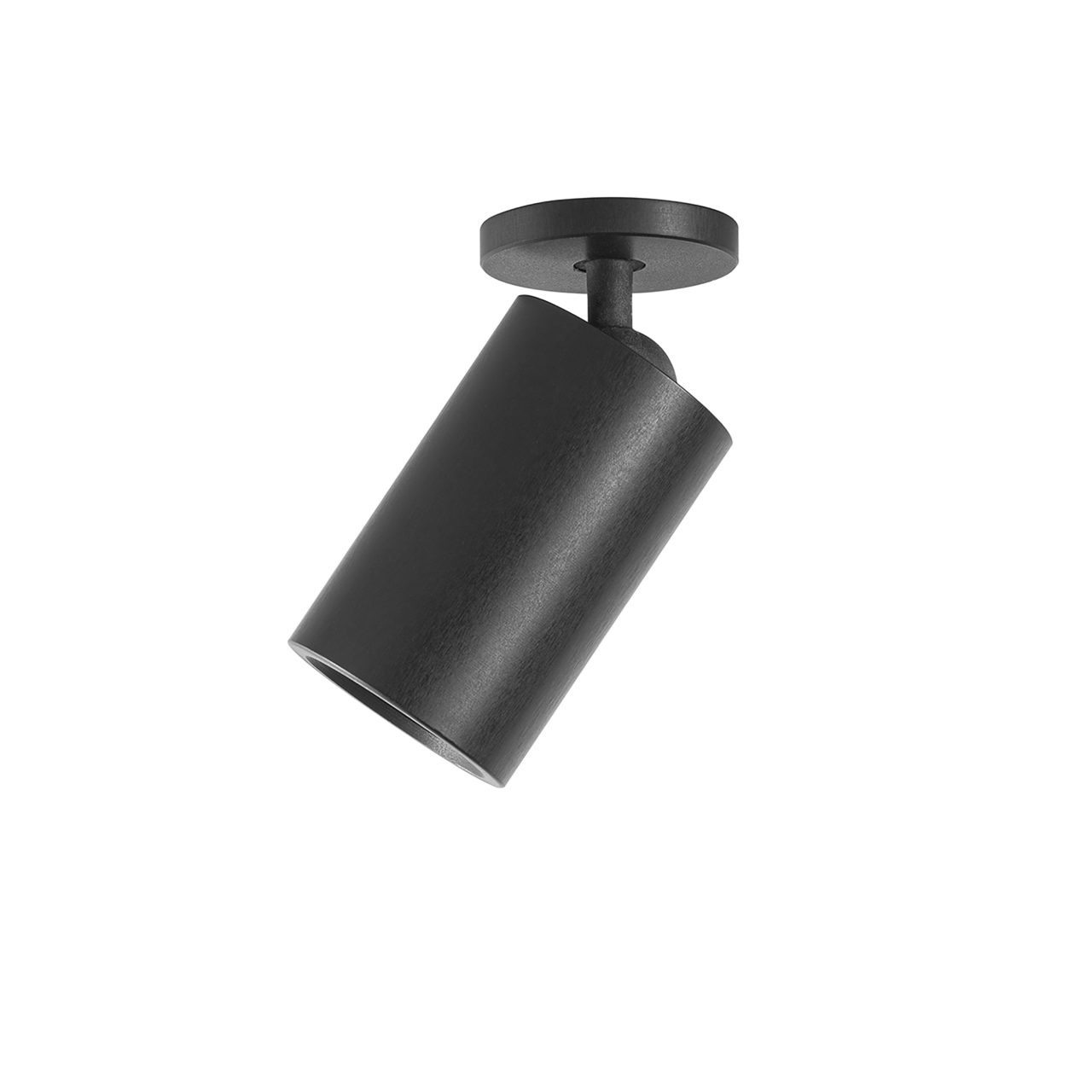

  • Fixed optic
    • 3000K - 20°
      LED spot4,2W362lmDirect 20°3000Kaccording to driver350mA
      9040ø3,3x8cmdriver not included1-10V, DALI, DMX, Casambi, CCT 2700K
      Anodized aluminumCode/ColorBFLE0401F21WAN blackCode/ColorBFLE0401F21WAO goldCode/ColorBFLE0401F21WAA greyCode/ColorBFLE0401F21WAB bronze greyDrivers 350mADIMENSIONS-CODES
    • 3000K - 30°
      LED spot4,2W323lmDirect 30°3000Kaccording to driver350mA
      9040ø3,3x8cmdriver not included1-10V, DALI, DMX, Casambi, CCT 2700K
      Anodized aluminumCode/ColorBFLE0401421WAN blackCode/ColorBFLE0401421WAO goldCode/ColorBFLE0401421WAA greyCode/ColorBFLE0401421WAB bronze greyDrivers 350mADIMENSIONS-CODES
    • 4000K - 20°
      LED spot4,2W362lmDirect 20°4000Kaccording to driver350mA
      9040ø3,3x8cmdriver not included1-10V, DALI, DMX, Casambi, CCT 2700K
      Anodized aluminumCode/ColorBFLE0401F21NAN blackCode/ColorBFLE0401F21NAO goldCode/ColorBFLE0401F21NAA greyCode/ColorBFLE0401F21NAB bronze greyDrivers 350mADIMENSIONS-CODES
    • 4000K - 30°
      LED spot4,2W323lmDirect 30°4000Kaccording to driver350mA
      9040ø3,3x8cmdriver not included1-10V, DALI, DMX, Casambi, CCT 2700K
      Anodized aluminumCode/ColorBFLE0401421NAN blackCode/ColorBFLE0401421NAO goldCode/ColorBFLE0401421NAA greyCode/ColorBFLE0401421NAB bronze greyDrivers 350mADIMENSIONS-CODES

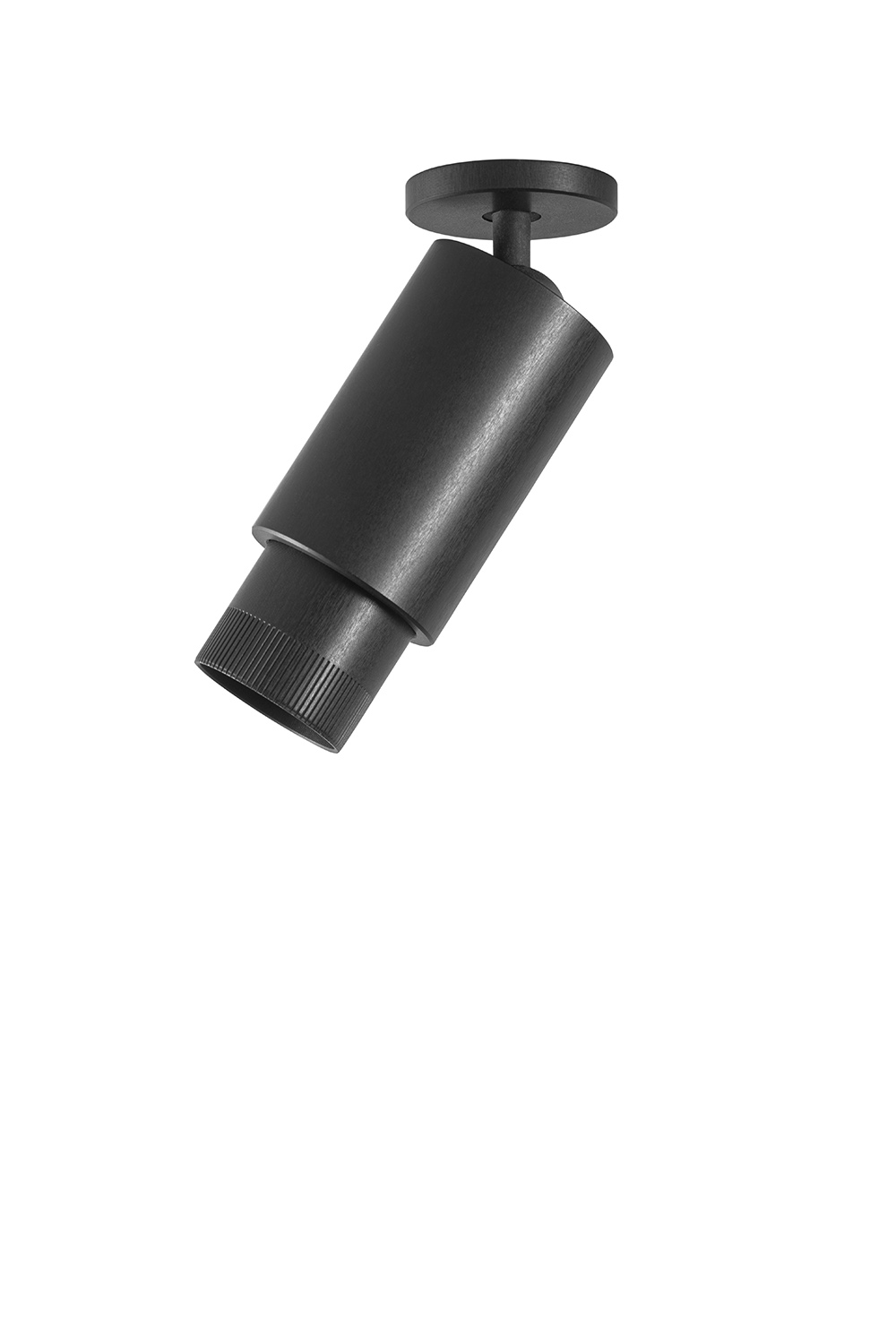

  • Zoom optic
    • 3000K
      LED spot4,2W76lm (45°)Direct adjustable 15°-45°3000Kaccording to driver350mA
      9040ø3,3x10,7cmdriver not included1-10V, DALI, DMX, Casambi, CCT 2700K
      Anodized aluminumCode/ColorBFLE0401921WAN blackDrivers 350mADIMENSIONS-CODES
    • 4000K
      LED spot4,2W80lmDirect adjustable 15°-45°4000Kaccording to driver350mA
      9040ø3,3x10,7cmdriver not included1-10V, DALI, DMX, Casambi, CCT 2700K
      Anodized aluminumCode/ColorBFLE0401921NAN blackDrivers 350mADIMENSIONS-CODES
