LUX OUTDOOR

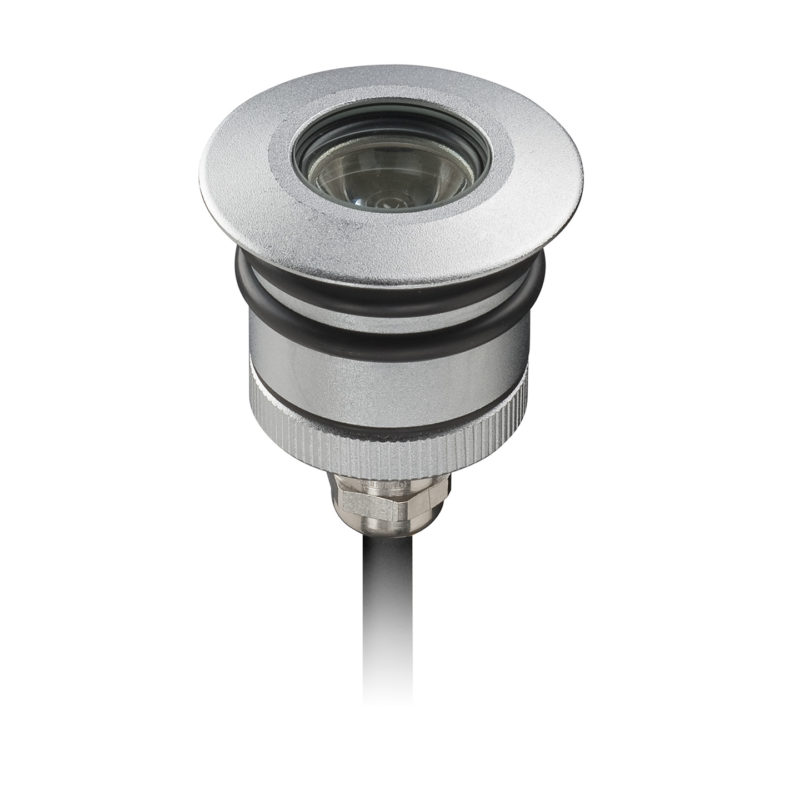

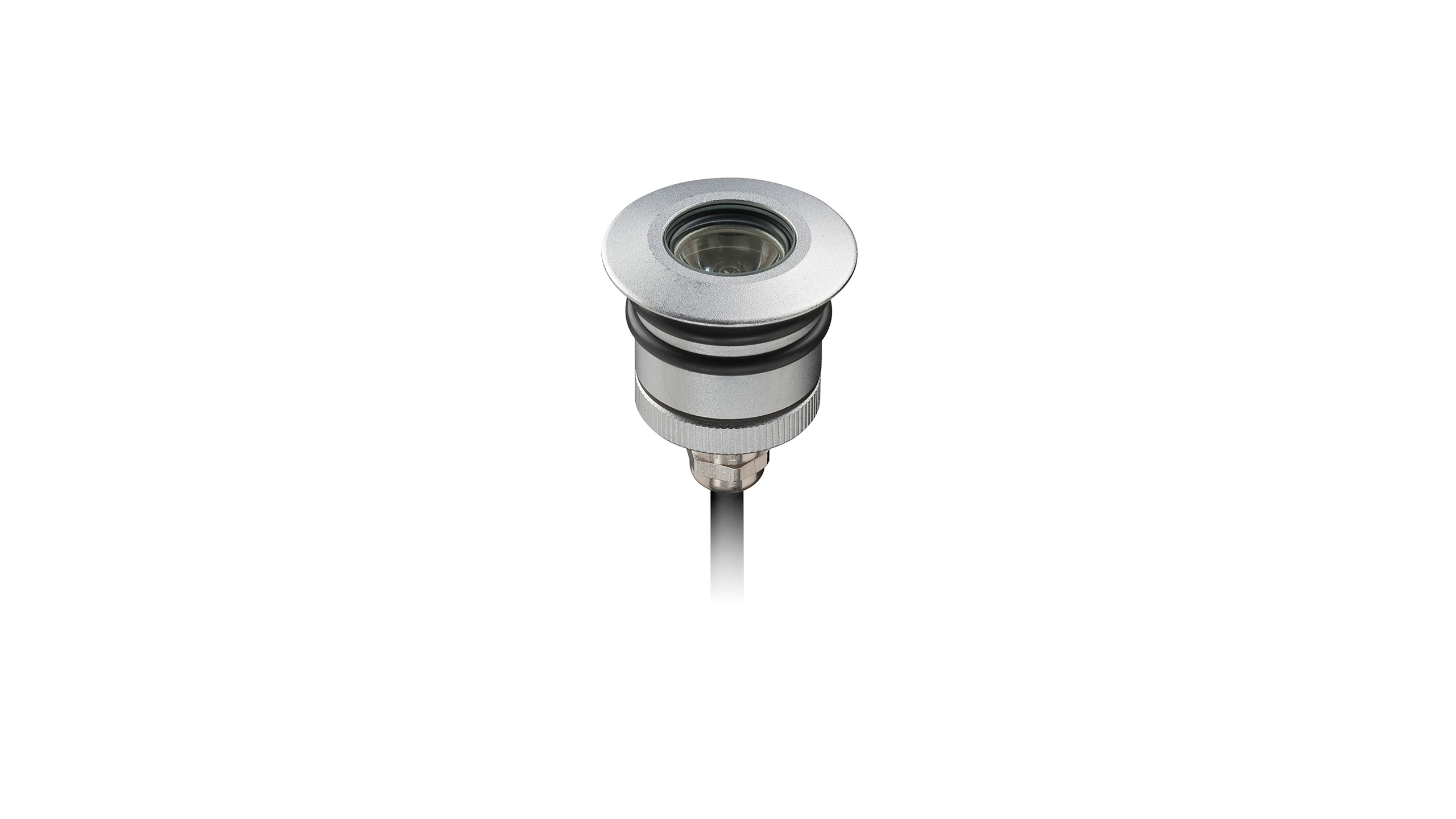

Recessed LED spot for outdoor and immersion use (max 1 m). Sanded chromed brass or techno-polymer body. 1 high emission LED with different beam angles. Glass protection and waterproof cable gland. To install the spot, use the recessed installation box LUXCASSA1 (not included) or the steel fixation springs for false ceiling. Walk over.

Technical drawing

Versions

  • Brass
    • 3000K - 11°
      LED spot1,2W73lmDirect 11°3000Kaccording to driver350mA
      9068Ø4,4x5,6cmcable 1m; recessed box LUXCASSA1 not included, driver not included1-10V, DALI, DMX, Casambi, LED colour temperature
      Sanded chromed brassCode/ColorBLUX0201F17WCS greyDrivers 350mADIMENSIONS-CODESRecessed boxRecessed box cassa 1DIMENSIONS-CODES
    • 3000K - 25°
      LED spot1,2W68lmDirect 25°3000Kaccording to driver350mA
      9068Ø4,4x5,6cmcable 1m; recessed box LUXCASSA1 not included, driver not included1-10V, DALI, DMX, Casambi, LED colour temperature
      Sanded chromed brassCode/ColorBLUX0201417WCS greyDrivers 350mADIMENSIONS-CODESRecessed boxRecessed box cassa 1DIMENSIONS-CODES
    • 3000K - 80°
      LED spot1,2W50lmDirect 80°3000Kaccording to driver350mA
      9068Ø4,4x5,6cmcable 1m; recessed box LUXCASSA1 not included, driver not included1-10V, DALI, DMX, Casambi, LED colour temperature
      Sanded chromed brassCode/ColorBLUX0201617WCS greyDrivers 350mADIMENSIONS-CODESRecessed boxRecessed box cassa 1DIMENSIONS-CODES
    • 5000K - 11°
      LED spot1,2W100lmDirect 11°5000Kaccording to driver350mA
      7068Ø4,4x5,6cmcable 1m; recessed box LUXCASSA1 not included, driver not included1-10V, DALI, DMX, Casambi, LED colour temperature
      Sanded chromed brassCode/ColorBLUX0201F170CS greyDrivers 350mADIMENSIONS-CODESRecessed boxRecessed box cassa 1DIMENSIONS-CODES
    • 5000K - 25°
      LED spot1,2W75lmDirect 25°5000Kaccording to driver350mA
      7068Ø4,4x5,6cmcable 1m; recessed box LUXCASSA1 not included, driver not included1-10V, DALI, DMX, Casambi, LED colour temperature
      Sanded chromed brassCode/ColorBLUX02014170CS greyDrivers 350mADIMENSIONS-CODESRecessed boxRecessed box cassa 1DIMENSIONS-CODES
    • 5000K - 80°
      LED spot1,2W55lmDirect 80°5000Kaccording to driver350mA
      7068Ø4,4x5,6cmcable 1m; recessed box LUXCASSA1 not included, driver not included1-10V, DALI, DMX, Casambi, LED colour temperature
      Sanded chromed brassCode/ColorBLUX02016170CS greyDrivers 350mADIMENSIONS-CODESRecessed boxRecessed box cassa 1DIMENSIONS-CODES
  • techno-polymer
    • 3000K - 11°
      LED spot1,2W73lmDirect 11°3000Kaccording to driver350mA
      9068Ø4,4x5,6cmcable 1m; recessed box LUXCASSA1 not included, driver not included1-10V, DALI, DMX, Casambi, LED colour temperature
      Techno-polymerCode/ColorBLUX0201F17WTF whiteDrivers 350mADIMENSIONS-CODESRecessed boxRecessed box cassa 1DIMENSIONS-CODES
    • 3000K - 25°
      LED spot1,2W68lmDirect 25°3000Kaccording to driver350mA
      9068Ø4,4x5,6cmcompatible controls: 1-10V, DALI, DMX, Casambi; cable 1m; recessed box LUXCASSA1 not included, driver not included1-10V, DALI, DMX, Casambi, LED colour temperature
      Techno-polymerCode/ColorBLUX0201417WTF whiteDrivers 350mADIMENSIONS-CODESRecessed boxRecessed box cassa 1DIMENSIONS-CODES
    • 3000K - 80°
      LED spot1,2W50lmDirect 80°3000Kaccording to driver350mA
      9068Ø4,4x5,6cmcable 1m; recessed box LUXCASSA1 not included, driver not included1-10V, DALI, DMX, Casambi, LED colour temperature
      Techno-polymerCode/ColorBLUX0201617WTF whiteDrivers 350mADIMENSIONS-CODESRecessed boxRecessed box cassa 1DIMENSIONS-CODES
    • 5000K - 11°
      LED spot1,2W100lmDirect 11°5000Kaccording to driver350mA
      7068Ø4,4x5,6cmcable 1m; recessed box LUXCASSA1 not included, driver not included1-10V, DALI, DMX, Casambi, LED colour temperature
      Techno-polymerCode/ColorBLUX0201F170TF whiteDrivers 350mADIMENSIONS-CODESRecessed boxRecessed box cassa 1DIMENSIONS-CODES
    • 5000K - 25°
      LED spot1,2W75lmDirect 25°5000Kaccording to driver350mA
      7068Ø4,4x5,6cmcable 1m; recessed box LUXCASSA1 not included, driver not included1-10V, DALI, DMX, Casambi, LED colour temperature
      Techno-polymerCode/ColorBLUX02014170TF whiteDrivers 350mADIMENSIONS-CODESRecessed boxRecessed box cassa 1DIMENSIONS-CODES
    • 5000K - 80°
      LED spot1,2W55lmDirect 80°5000Kaccording to driver350mA
      7068Ø4,4x5,6cmcompatible controls: 1-10V, DALI, DMX, Casambi; cable 1m; recessed box LUXCASSA1 not included, driver not included1-10V, DALI, DMX, Casambi, LED colour temperature
      Techno-polymerCode/ColorBLUX02016170TF whiteDrivers 350mADIMENSIONS-CODESRecessed boxRecessed box cassa 1DIMENSIONS-CODES
