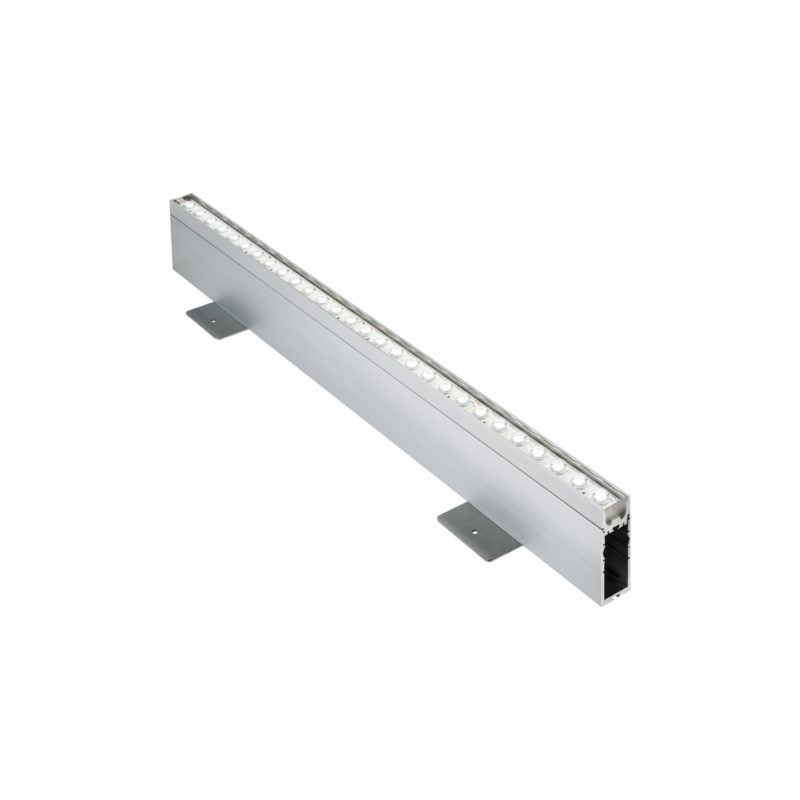

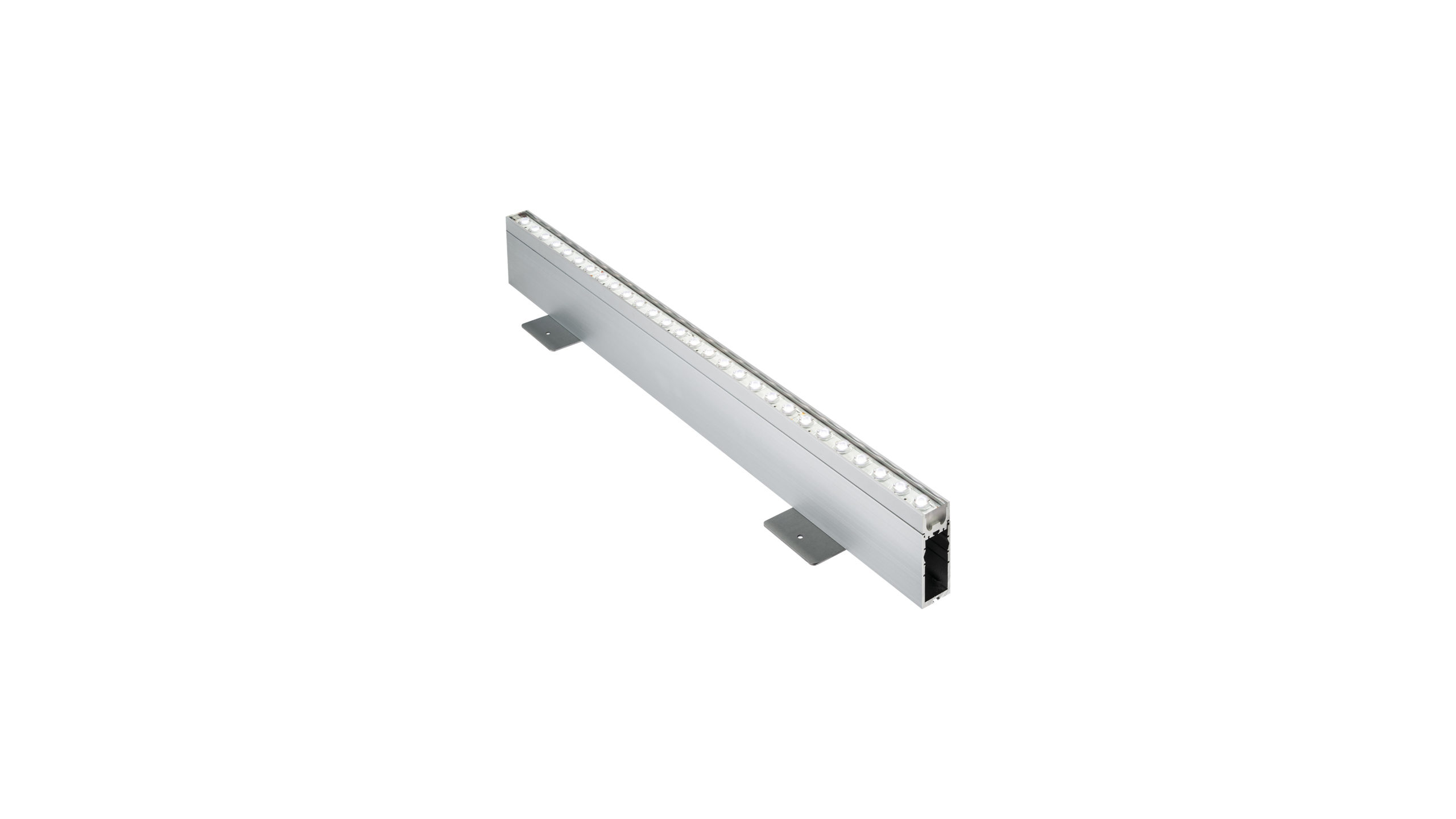

WALKLINE WALL WASHER

WALKLINE is a walkable, linear LED 24V DC system for outdoor signalization or wall washer lighting. The WALKLINE consists of a naturally anodised aluminium profile with an opal resin coating for homogeneous light emission or with
a wall washer optic. Available in various standard lengths. Dimmable 1-10V, DALI or DMX. Recessed box installation included. WALKLINE and WALKLINE WALL WASHER are extremely resistant against scratches, foot and drive traffic and lend themselves for outdoor settings where signalling or decorative lighting is required.

Technical drawing

Versions

  • 0,50m
    • 3000K
      Linear LED8W625lmwall washer3000Kaccording to driver24VDC
      9067driver not included, cable length 0,5m, certified 500kg static load, 3500kg dynamic load1-10V, DALI, DMX, Casambi, body length
      aluminumCode/ColorBWLK0205226WAA greyDrivers 24VDC + DALI interfaceDIMENSIONS-CODES_DRIVER-24VDCDALI-INTERFACE
    • 4000K
      Linear LED8W650lmwall washer4000Kaccording to driver24VDC
      9067driver not included, cable length 0,5m, certified 500kg static load, 3500kg dynamic load1-10V, DALI, DMX, Casambi, body length
      aluminumCode/ColorBWLK0205226NAA greyDrivers 24VDC + DALI interfaceDIMENSIONS-CODES_DRIVER-24VDCDALI-INTERFACE
  • 1m
    • 3000K
      Linear LED16W1250lmwall washer3000Kaccording to driver24VDC
      9067driver not included, cable length 0,5m, certified 500kg static load, 3500kg dynamic load1-10V, DALI, DMX, Casambi, body length
      aluminumCode/ColorBWLK0210226WAA greyDrivers 24VDC + DALI interfaceDIMENSIONS-CODES_DRIVER-24VDCDALI-INTERFACE
    • 4000K
      Linear LED16W1300lmwall washer4000Kaccording to driver24VDC
      9067driver not included, cable length 0,5m, certified 500kg static load, 3500kg dynamic load1-10V, DALI, DMX, Casambi, body length
      aluminumCode/ColorBWLK0210226NAA greyDrivers 24VDC + DALI interfaceDIMENSIONS-CODES_DRIVER-24VDCDALI-INTERFACE
  • 2m
    • 3000K
      Linear LED32W2500lmwall washer3000Kaccording to driver24VDC
      9067driver not included, cable length 0,5m, certified 500kg static load, 3500kg dynamic load1-10V, DALI, DMX, Casambi, body length
      aluminumCode/ColorBWLK0220226WAA greyDrivers 24VDC + DALI interfaceDIMENSIONS-CODES_DRIVER-24VDCDALI-INTERFACE
    • 4000K
      Linear LED32W2600lmwall washer4000Kaccording to driver24VDC
      9067driver not included, cable length 0,5m, certified 500kg static load, 3500kg dynamic load1-10V, DALI, DMX, Casambi, body length
      aluminumCode/ColorBWLK0220226NAA greyDrivers 24VDC + DALI interfaceDIMENSIONS-CODES_DRIVER-24VDCDALI-INTERFACE

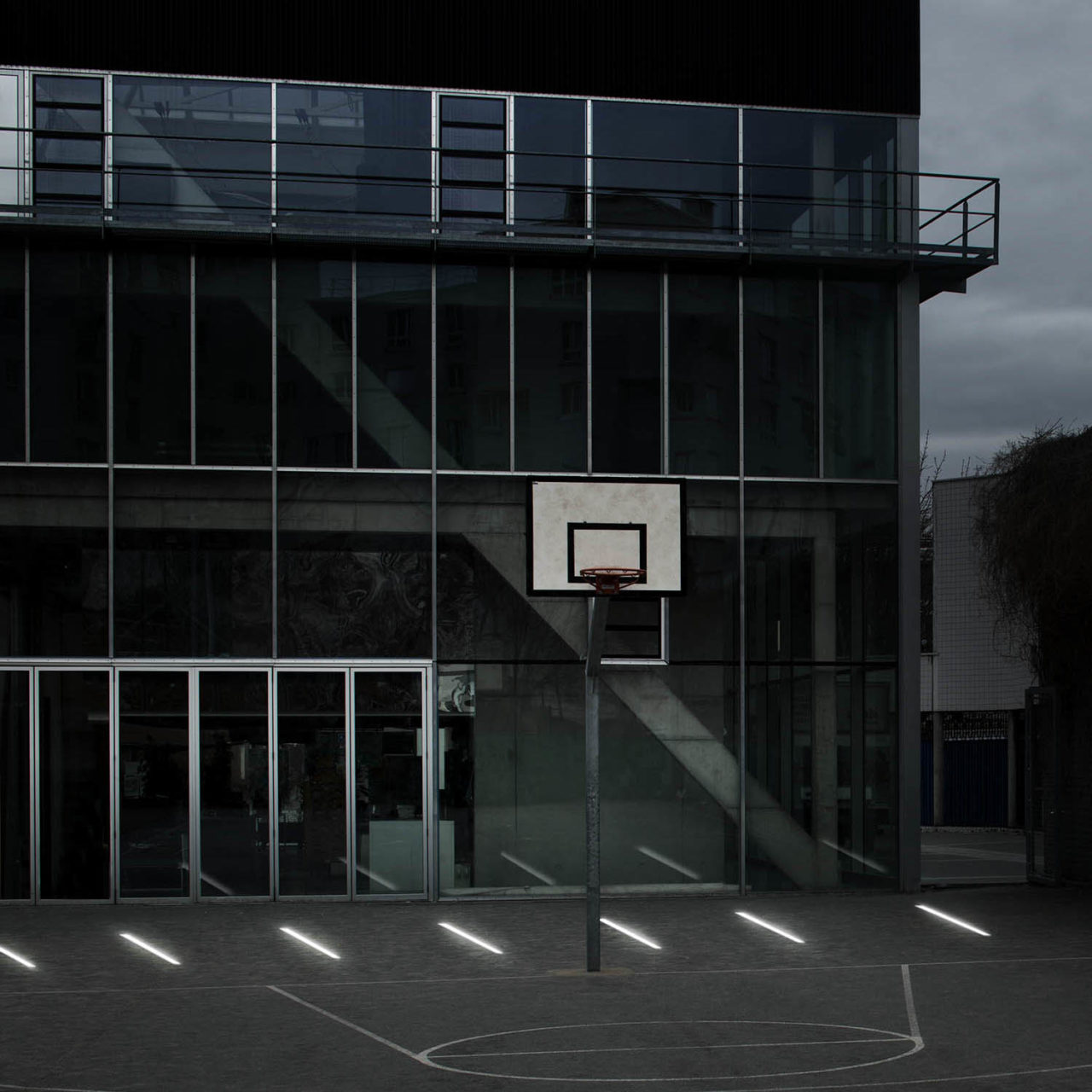

Family
