ZIRKOL SQUARE 90

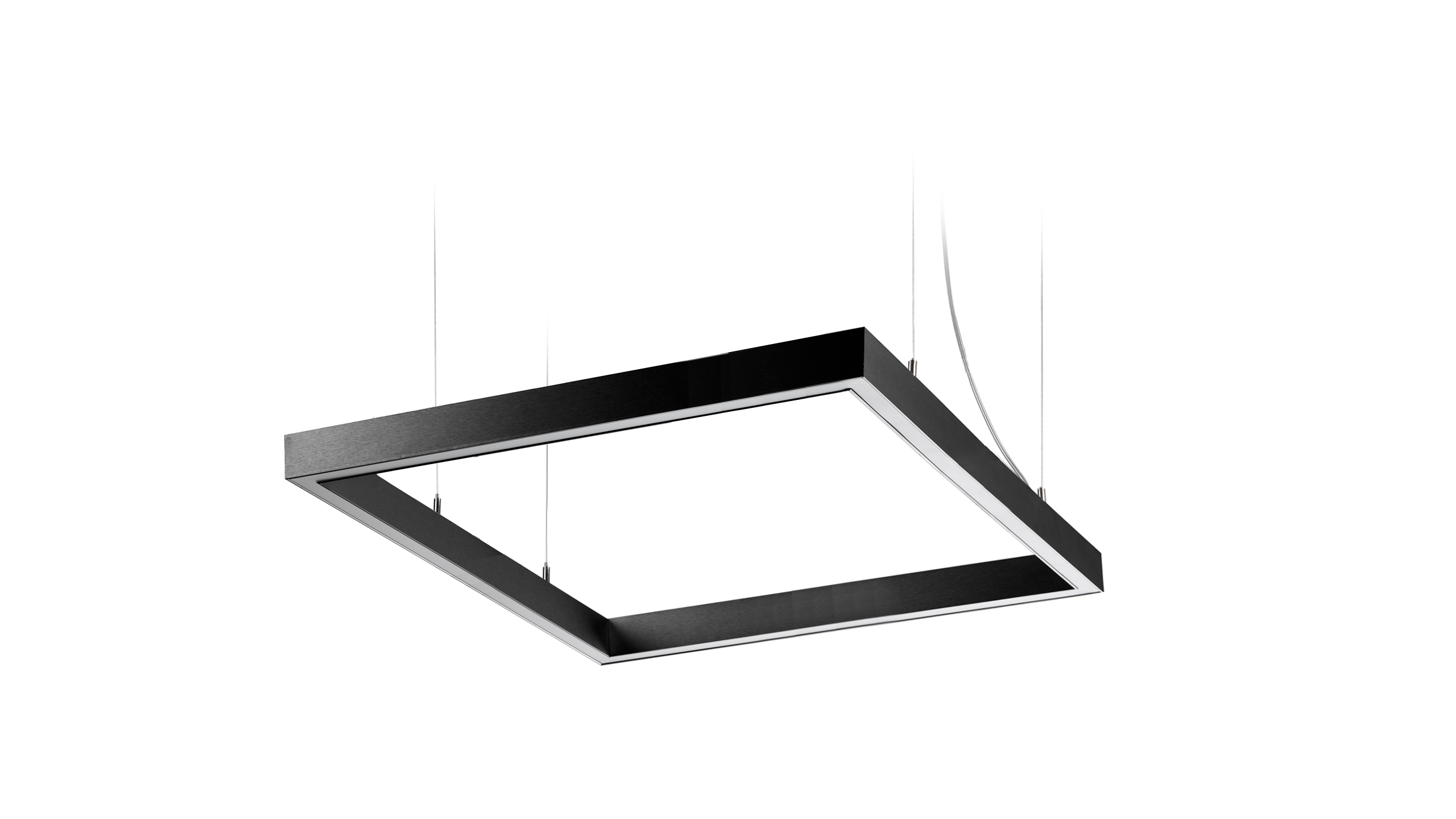

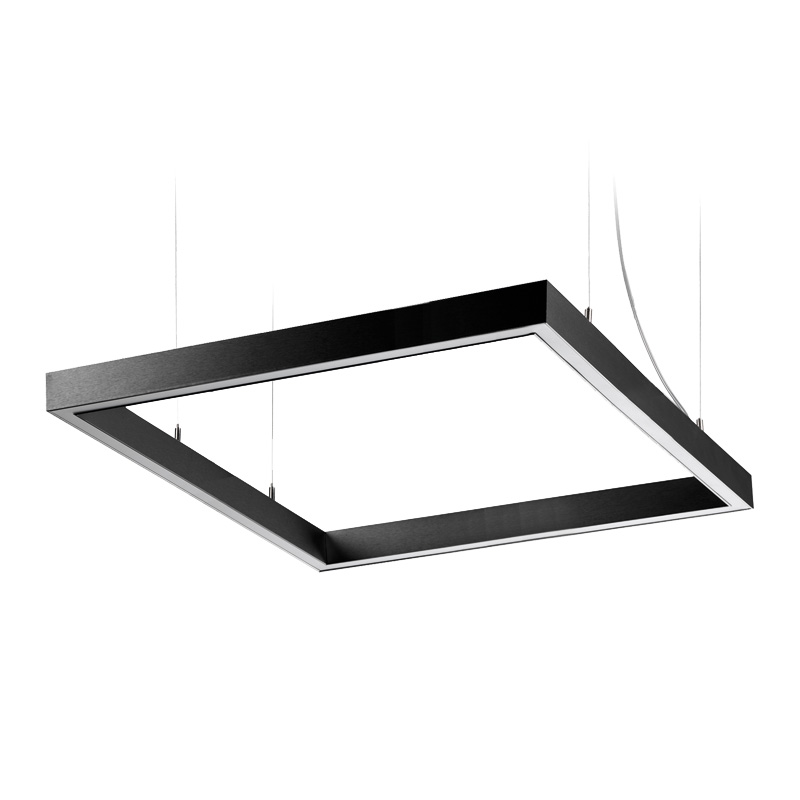

Zirkol Square 90 is a family of square suspension lamps with a right-angle for general and decorative lighting. Anodized aluminium body and opal screen for homogeneous lighting. CRI 90. Light emission can be direct or bi-emission with high luminous flux and different colour temperatures. Available in the finishes black, white and matte gold.

Technical drawing

Versions

1m
- Downlight | 2700K

  SourceLinear LEDTotal power58WLuminous flux3330lmColor temperature2700KSwitchingDALI 1-100%Tension110/240V
  Typ CRI90Notesremote driver | RAL 9005 black | RAL 9016 white | shipped assembled Certifications
  FinishCode/ColorBZRA1610G15DBO whiteCode/ColorBZRA1610G15DNE blackCode/ColorBZRA1610G15DOR matte gold
- Downlight | 3000K

  SourceLinear LEDTotal power58WLuminous flux3525lmColor temperature3000KSwitchingDALI 1-100%Tension110/240V
  Typ CRI90Notesremote driver | RAL 9005 black | RAL 9016 white | shipped assembled Certifications
  FinishCode/ColorBZRA1610G15WBO whiteCode/ColorBZRA1610G15WNE blackCode/ColorBZRA1610G15WOR matte gold
- Downlight | 4000K

  SourceLinear LEDTotal power58WLuminous flux3920lmColor temperature4000KSwitchingDALI 1-100%Tension110/240V
  Typ CRI90Notesremote driver | RAL 9005 black | RAL 9016 white | shipped assembled Certifications
  FinishCode/ColorBZRA1610G15NBO whiteCode/ColorBZRA1610G15NNE blackCode/ColorBZRA1610G15NOR matte gold
- Up-downlight | 2700K

  SourceLinear LEDTotal power116WLuminous flux6660lmColor temperature2700KSwitchingDALI 1-100%Tension110/240V
  Typ CRI90NotesRAL 9005 black | RAL 9016 white | shipped assembled Certifications
  FinishCode/ColorBZRA1710G15DBO whiteCode/ColorBZRA1710G15DNE blackCode/ColorBZRA1710G15DOR matte gold
- Up-downlight | 3000K

  SourceLinear LEDTotal power116WLuminous flux7050lmColor temperature3000KSwitchingDALI 1-100%Tension110/240V
  Typ CRI90NotesRAL 9005 black | RAL 9016 white | shipped assembled Certifications
  FinishCode/ColorBZRA1710G15WBO whiteCode/ColorBZRA1710G15WNE blackCode/ColorBZRA1710G15WOR matte gold
- Up-downlight | 4000K

  SourceLinear LEDTotal power116WLuminous flux7840lmColor temperature4000KSwitchingDALI 1-100%Tension110/240V
  Typ CRI90NotesRAL 9005 black | RAL 9016 white | shipped assembled Certifications
  FinishCode/ColorBZRA1710G15NBO whiteCode/ColorBZRA1710G15NNE blackCode/ColorBZRA1710G15NOR matte gold
1,5m
- Downlight | 2700K

  SourceLinear LEDTotal power87WLuminous flux5000lmColor temperature2700KSwitchingDALI 1-100%Tension110/240V
  Typ CRI90NotesRAL 9005 black | RAL 9016 white | shipped assembled Certifications
  FinishCode/ColorBZRA1615G15DBO whiteCode/ColorBZRA1615G15DNE blackCode/ColorBZRA1615G15DOR matte gold
- Downlight | 3000K

  SourceLinear LEDTotal power87WLuminous flux5290lmColor temperature3000KSwitchingDALI 1-100%Tension110/240V
  Typ CRI90NotesRAL 9005 black | RAL 9016 white | shipped assembled Certifications
  FinishCode/ColorBZRA1615G15WBO whiteCode/ColorBZRA1615G15WNE blackCode/ColorBZRA1615G15WOR matte gold
- Downlight | 4000K

  SourceLinear LEDTotal power87WLuminous flux5880lmColor temperature4000KSwitchingDALI 1-100%Tension110/240V
  Typ CRI90NotesRAL 9005 black | RAL 9016 white | shipped assembled Certifications
  FinishCode/ColorBZRA1615G15NBO whiteCode/ColorBZRA1615G15NNE blackCode/ColorBZRA1615G15NOR matte gold
- Up-downlight | 2700K

  SourceLinear LEDTotal power174WLuminous flux10000lmColor temperature2700KSwitchingDALI 1-100%Tension110/240V
  Typ CRI90NotesRAL 9005 black | RAL 9016 white | shipped assembled Certifications
  FinishCode/ColorBZRA1715G15DBO whiteCode/ColorBZRA1715G15DNE blackCode/ColorBZRA1715G15DOR matte gold
- Up-downlight | 3000K

  SourceLinear LEDTotal power174WLuminous flux10480lmColor temperature3000KSwitchingDALI 1-100%Tension110/240V
  Typ CRI90NotesRAL 9005 black | RAL 9016 white | shipped assembled Certifications
  FinishCode/ColorBZRA1715G15WBO whiteCode/ColorBZRA1715G15WNE blackCode/ColorBZRA1715G15WOR matte gold
- Up-downlight | 4000K

  SourceLinear LEDTotal power174WLuminous flux11760lmColor temperature4000KSwitchingDALI 1-100%Tension110/240V
  Typ CRI90NotesRAL 9005 black | RAL 9016 white | shipped assembled Certifications
  FinishCode/ColorBZRA1715G15NBO whiteCode/ColorBZRA1715G15NNE blackCode/ColorBZRA1715G15NOR matte gold
