DESK MATRIX

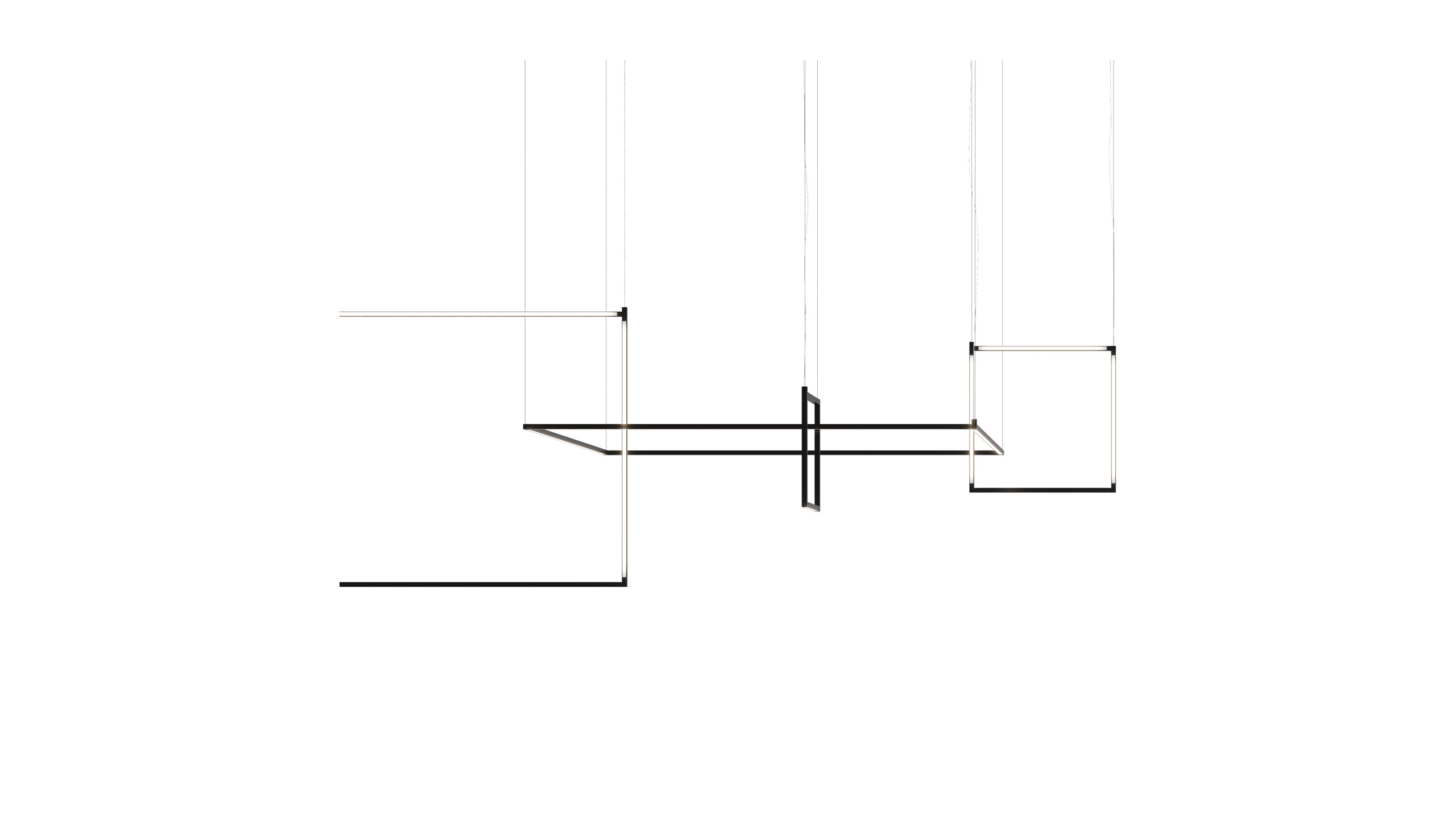

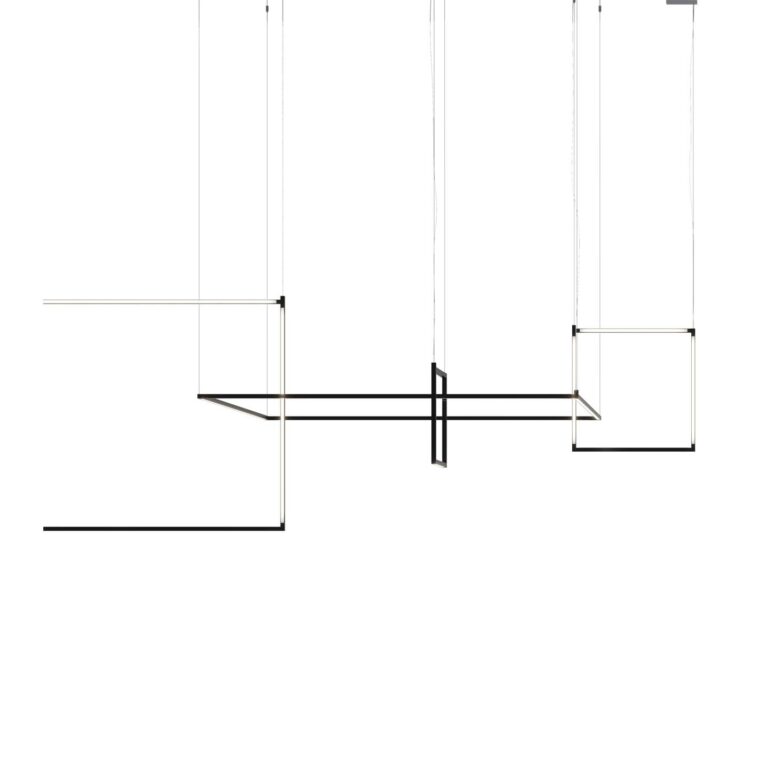

With Desk Matrix, Linescapes System can be configured in rectangular and square shapes, both vertically and horizontally. Sleek continuous light lines with an infinite number of constellations to fit any table size or interior design need. Available in 2700K or 3000K CCT, black or white finish. Compositions come fully equipped to work right out of the box, 1-10 V dimmable driver and its case included.

Technical drawing

44446411417864114178

Versions

  • DESK MATRIX
    • 44x44cm - HORIZONTAL 2700K
      Linear LED 24W1340lm diffused, orientable 360° on all four sides2700Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSH LW2 51 whiteCode/ColorLSH LN2 51 black
    • 44x44cm - VERTICAL 2700K
      Linear LED 24W1340lmdiffused, orientable 360° on all four sides2700Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSV LW2 51 whiteCode/ColorLSV LN2 51 black
    • 44x44cm - HORIZONTAL 3000K
      Linear LED 24W1340lm diffused, orientable 360° on all four sides3000Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSH LW3 51 whiteCode/ColorLSH LN3 51 black
    • 44x44cm - VERTICAL 3000K
      Linear LED 24W1340lmdiffused, orientable 360° on all four sides3000Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSV LW3 51 whiteCode/ColorLSV LN3 51 black
    • 64x44cm - HORIZONTAL 2700K
      Linear LED 31W1870lmdiffused, orientable 360° on all four sides2700Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSH LW2 55 whiteCode/ColorLSH LN2 55 black
    • 64x44cm - VERTICAL 2700K
      Linear LED 31W1870lmdiffused, orientable 360° 2700Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSV LW2 55 whiteCode/ColorLSV LN2 55 black
    • 64x44cm - HORIZONTAL 3000K
      Linear LED 31W1870lmdiffused, orientable 360° on all four sides3000Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSH LW3 55 whiteCode/ColorLSH LN3 55 black
    • 64x44cm - VERTICAL 3000K
      Linear LED 31W1870lmdiffused, orientable 360° on all four sides3000Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSV LW3 55 whiteCode/ColorLSV LN3 55 black
    • 114x44cm - HORIZONTAL 2700K
      Linear LED 50W2920lmdiffused, orientable 360° on all four sides2700Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSH LW2 58 whiteCode/ColorLSH LN2 58 black
    • 114x44cm - VERTICAL 2700K
      Linear LED 50W2920lmdiffused, orientable 360° on all four sides2700Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSV LW2 58 whiteCode/ColorLSV LN2 58 black
    • 114x44cm - HORIZONTAL 3000K
      Linear LED 50W2920lmdiffused, orientable 360° on all four sides3000Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSH LW3 58 whiteCode/ColorLSH LN3 58 black
    • 114x44cm - VERTICAL 3000K
      Linear LED 50W2920lmdiffused, orientable 360° on all four sides3000Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSV LW3 58 whiteCode/ColorLSV LN3 58 black
    • 178x44cm - HORIZONTAL 2700K
      Linear LED 78W4200lm diffused, orientable 360° on all four sides2700Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSH LW2 5A whiteCode/ColorLSH LN2 5A black
    • 178x44cm - VERTICAL 2700K
      Linear LED 78W4200lm diffused, orientable 360° on all four sides2700Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSV LW2 5A whiteCode/ColorLSV LN2 5A black
    • 178x44cm - HORIZONTAL 3000K
      Linear LED 78W4200lm (source luminous flux)diffused, orientable 360° on all four sides 3000Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSH LW3 5A whiteCode/ColorLSH LN3 5A black
    • 178x44cm - VERTICAL 3000K
      Linear LED 78W4200lm diffused, orientable 360° on all four sides3000Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSV LW3 5A whiteCode/ColorLSV LN3 5A black
    • 64x64cm - HORIZONTAL 2700K
      Linear LED 38W2400lm (source luminous flux)diffused, orientable 360° on all four sides2700Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSH LW2 52 whiteCode/ColorLSH LN2 52 black
    • 64x64cm - VERTICAL 2700K
      Linear LED 38W2400lm diffused, orientable 360° on all four sides2700Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSV LW2 52 whiteCode/ColorLSV LN2 52 black
    • 64x64cm - HORIZONTAL 3000K
      Linear LED 38W2400lmdiffused, orientable 360° on all four sides3000Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSH LW3 52 whiteCode/ColorLSH LN3 52 black
    • 64x64cm - VERTICAL 3000K
      Linear LED 38W2400lmdiffused, orientable 360° on all four sides3000Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSV LW3 52 whiteCode/ColorLSV LN3 52 black
    • 114x64cm - HORIZONTAL 2700K
      Linear LED 57W3450lm (source luminous flux)diffused, orientable 360° on all four sides2700Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSH LW2 56 whiteCode/ColorLSH LN2 56 black
    • 114x64cm - VERTICAL 2700K
      Linear LED 57W3450lm (source luminous flux)diffused, orientable 360° on all four sides2700Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSV LW2 56 whiteCode/ColorLSV LN2 56 black
    • 114x64cm - HORIZONTAL 3000K
      Linear LED 57W3450lm diffused, orientable 360° on all four sides3000Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSH LW3 56 whiteCode/ColorLSH LN3 56 black
    • 114x64cm - VERTICAL 3000K
      Linear LED 57W3450lmdiffused, orientable 360° on all four sides3000Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSV LW3 56 whiteCode/ColorLSV LN3 56 black
    • 178x64cm - HORIZONTAL 2700K
      Linear LED 85W4730lmdiffused, orientable 360° on all four sides2700Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSH LW2 59 whiteCode/ColorLSH LN2 59 black
    • 178x64cm - VERTICAL 2700K
      Linear LED 85W4730lm diffused, orientable 360° on all four sides2700Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSV LW2 59 whiteCode/ColorLSV LN2 59 black
    • 178x64cm - HORIZONTAL 3000K
      Linear LED 85W4730lm diffused, orientable 360° on all four sides3000Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSH LW3 59 whiteCode/ColorLSH LN3 59 black
    • 178x64cm - VERTICAL 3000K
      Linear LED 85W4730lmdiffused, orientable 360° on all four sides3000Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSV LW3 59 whiteCode/ColorLSV LN3 59 black
    • 114x114cm - HORIZONTAL 2700K
      Linear LED 76W4500lmdiffused, orientable 360° on all four sides2700Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSH LW2 53 whiteCode/ColorLSH LN2 53 black
    • 114x114cm - VERTICAL 2700K
      Linear LED 76W4500lmdiffused, orientable 360° on all four sides2700Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSV LW2 53 whiteCode/ColorLSV LN2 53 black
    • 114x114cm - HORIZONTAL 3000K
      Linear LED 76W4500lmdiffused, orientable 360° on all four sides3000Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSH LW3 53 whiteCode/ColorLSH LN3 53 black
    • 114x114cm - VERTICAL 3000K
      Linear LED 76W4500lmdiffused, orientable 360° on all four sides3000Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSV LW3 53 whiteCode/ColorLSV LN3 53 black
    • 178x114cm - HORIZONTAL 2700K
      Linear LED 104W5780lm diffused, orientable 360° on all four sides2700Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSH LW2 57 whiteCode/ColorLSH LN2 57 black
    • 178x114cm - VERTICAL 2700K
      Linear LED 104W5780lm diffused, orientable 360° on all four sides2700Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSV LW2 57 whiteCode/ColorLSV LN2 57 black
    • 178x114cm - HORIZONTAL 3000K
      Linear LED 104W5780lmdiffused, orientable 360° on all four sides3000Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSH LW3 57 whiteCode/ColorLSH LN3 57 black
    • 178x114cm - VERTICAL 3000K
      Linear LED 104W5780lmdiffused, orientable 360° on all four sides3000Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSV LW3 57 whiteCode/ColorLSV LN3 57 black
    • 178x178cm - HORIZONTAL 2700K
      Linear LED 132W7060lmdiffused, orientable 360° on all four sides2700Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSH LW2 54 whiteCode/ColorLSH LN2 54 black
    • 178x178cm - VERTICAL 2700K
      Linear LED 132W7060lmdiffused, orientable 360° on all four sides2700Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSV LW2 54 whiteCode/ColorLSV LN2 54 black
    • 178x178cm - HORIZONTAL 3000K
      Linear LED 132W7060lm diffused, orientable 360° on all four sides3000Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSH LW3 54 whiteCode/ColorLSH LN3 54 black
    • 178x178cm - VERTICAL 3000K
      Linear LED 132W7060lm diffused, orientable 360° on all four sides3000Kdimmable 1-10V110/240V
      8520driver included, adjustable cable length max 3m
      aluminium + PC + ABSCode/ColorLSV LW3 54 whiteCode/ColorLSV LN3 54 black
