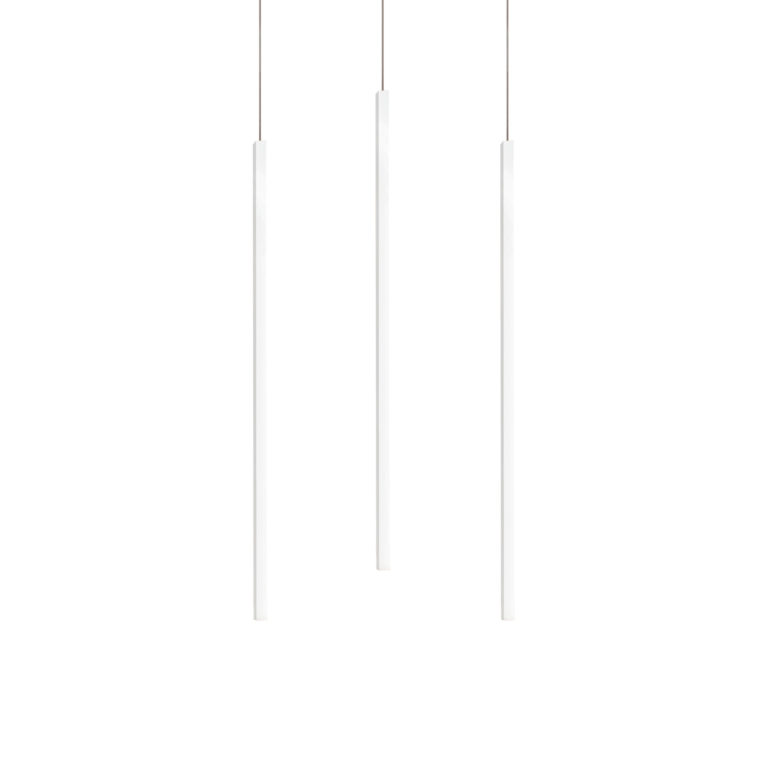

LINESCAPES PENDANT VERTICAL

Family of floor, ceiling and wall elements, efficient with an highly versatile linear luminous output. Body in aluminium extruded and opal white polycarbonate diffuser. Horizontal cantilever wall version supplied with kit for connection with remote driver. White or balck finishing with elements in grey painted on the floor and wall versions.

Technical drawing

2 2 Ø10 340° 115 340° Ø7 9 115

Versions

  • LED 2700K
    linear LED12W475lm diffused orientable2700K110/240V
    85A+cable length max 3m, orientable 360°, side emission
    Aluminium + PC + ABSCode/ColorLIN LW2 59 white/white
  • LED 3000K
    linear LED12W475lm diffused orientable3000K110/240V
    85A+cable length max 3m, orientable 360°, side emission
    Aluminium + PC + ABSCode/ColorLIN LWW 59 white/white
  • LED RECESSED 2700K
    linear LED19W1125lm diffused orientable2700Kdimmable 1-10V110/240V
    85A+cable length max 3m, orientable 360°, recessed hole Ø8xHmin 4cm, side emission, DALI version on request
    Aluminium + PC + ABSCode/ColorLIN LW2 5A white/white
  • LED RECESSED 3000K
    linear LED19W1125lm diffused orientable3000Kdimmable 1-10V110/240V
    85A+cable length max 3m, orientable 360°, recessed hole Ø8xHmin 4cm, side emission, DALI version on request
    Aluminium + PC + ABSCode/ColorLIN LWW 5A white/white
