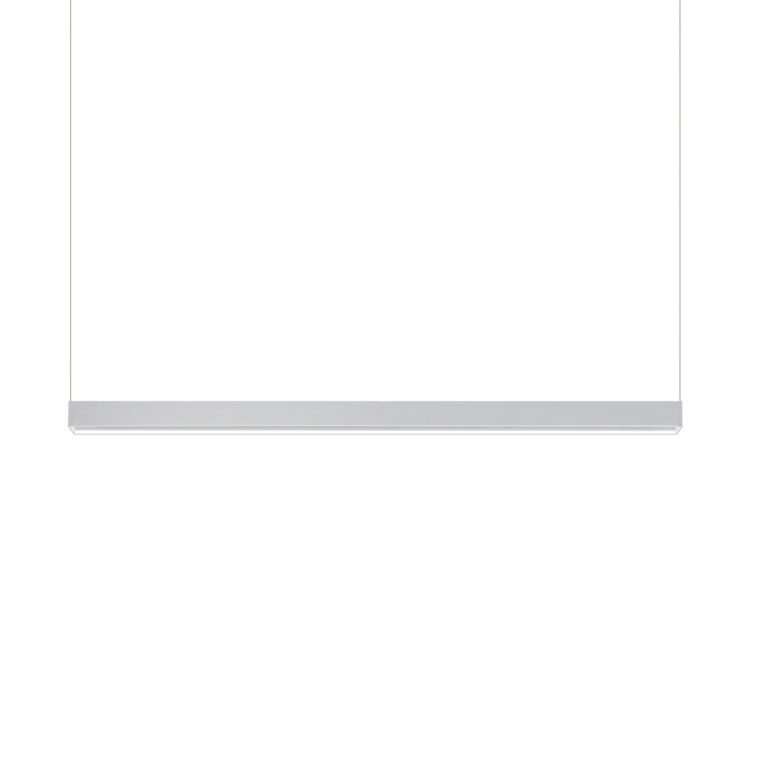

TRU PENDANT HORIZONTAL

Horizontal pendant lamp with double linear LED source. Body in extruded aluminium. Heads in injection molded blended polymeric material, with diffusers in opal metacrylate. Structure painted in matt white, matt black and titan grey. Horizontal version available with uplight/downlight flood and total down. Dimmable.

Technical drawing

Versions

LED down+down 2700K

Sourcelinear LEDTotal power2x33WLuminous flux2 x 1765lm Emissiondown+downColor temperature2700KSwitchingmono switch, dimmable, push on boardTension110/240V
Typ CRI85Energy classA+Notesmetal cable length 3m, electrical cable length 5m, DALI version on request, TRIAC VERSION on request Certifications
Materialsaluminium + PCFinishCode/ColorTRU LWW 57 white/whiteCode/ColorTRU LNN 57 black/whiteCode/ColorTRU LDD 57 titan grey/white
LED down+down 3000K

Sourcelinear LEDTotal power2x33WLuminous flux2 x 1765lm Emissiondown+downColor temperature3000KSwitchingmono switch, dimmable, push on boardTension110/240V
Typ CRI85Energy classA+Notesmetal cable length 3m, electrical cable length 5m, DALI version on requestCertifications
Materialsaluminium + PCFinishCode/ColorTRU LWW 5C white/whiteCode/ColorTRU LNN 5C black/whiteCode/ColorTRU LDD 5C titan grey/white
LED up+down 2700K

Sourcelinear LEDTotal power2x33WLuminous flux2 x 1765lm Emissionup + downColor temperature2700KSwitchingmono switch, dimmable, push on boardTension110/240V
Typ CRI85Energy classA+Notesmetal cable length 3m, electrical cable length 5m, DALI version on requestCertifications
Materialsaluminium + PCFinishCode/ColorTRU LWW 55 white/whiteCode/ColorTRU LNN 55 black/whiteCode/ColorTRU LDD 55 titan grey/white
LED up+down 3000K

Sourcelinear LEDTotal power2x33WLuminous flux2 x 1765lm Emissionup + downColor temperature3000KSwitchingmono switch, dimmable, push on boardTension110/240V
Typ CRI85Energy classA+Notesmetal cable length 3m, electrical cable length 5m, DALI version on requestCertifications
Materialsaluminium + PCFinishCode/ColorTRU LWW 5A white/whiteCode/ColorTRU LNN 5A black/whiteCode/ColorTRU LDD 5A titan grey/white

Download

Family

Roberto Paoli

Roberto Paoli stands out on the Italian scene for his versatility. After graduating in architecture from the University of Florence, he followed a professional path that led him to devote himself mainly to designing furnishing accessories as well as conceiving and curating exhibitions, initiatives and design culture events.
