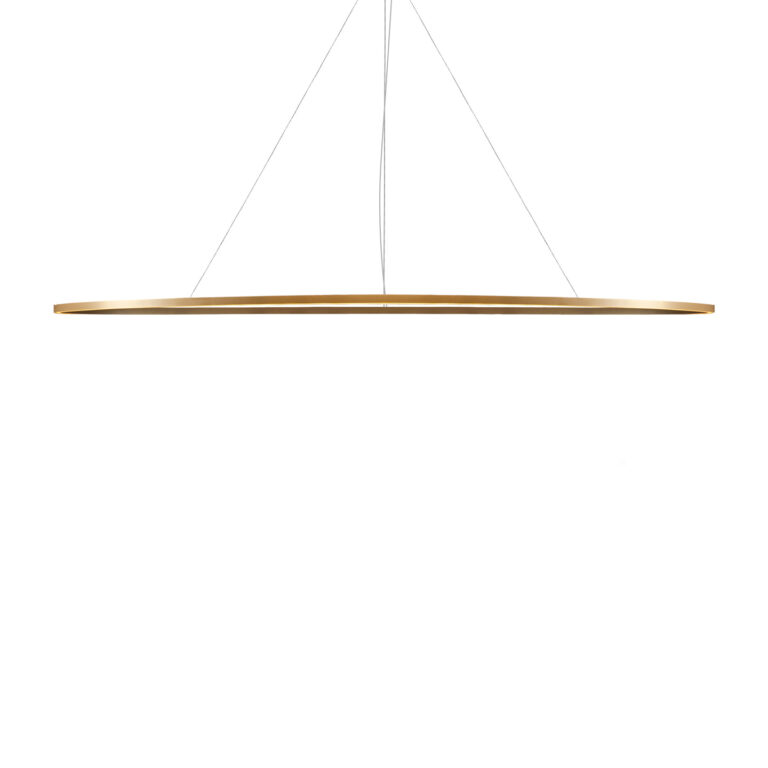

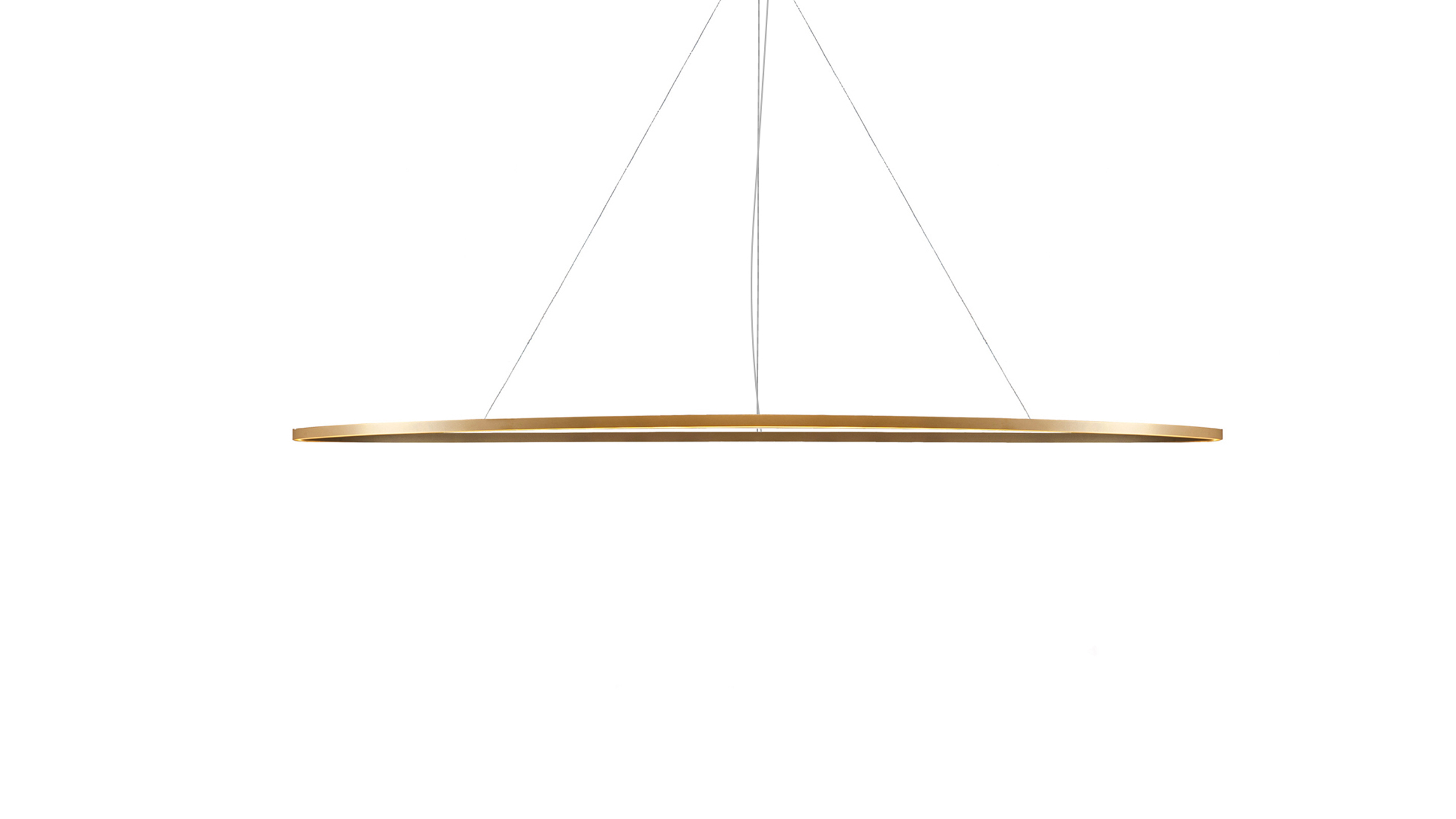

ELLISSE PENDANT MEGA

New oversized LED pendant provides diffused orientable uplight or downlight. Made from extruded aluminum in different finishes: matt lacquered white, black or gold. Equipped with an opal diffuser. The lamps are made using a proprietary extrusion coupling technology.

Technical drawing

73.2 37.4 Ø 8.7 1.8

Versions

  • DOWNLIGHT
    • 2700K
      linear LED85W4425lm (luminous output)diffused orientable2700Kdimmable 1-10V120V
      85A+2073.2 x 37.4 x 8adjustable cable length 8.2' max, DALI version on request
      Aluminum + PCCode/ColorELP LW2 59 whiteCode/ColorELP LN2 59 blackCode/ColorELP LO2 59 gold painted
    • 3000K
      linear LED85W4425lm (luminous output)diffused orientable3000Kdimmable 1-10V120V
      85A+2073.2 x 37.4 x 8adjustable cable length 8.2' max, DALI version on request
      Aluminum + PCCode/ColorELP LWW 59 whiteCode/ColorELP LNW 59 blackCode/ColorELP LOW 59 gold painted
  • UPLIGHT
    • 2700K
      linear LED85W4425lm (luminous output)diffused orientable2700Kdimmable 1-10V120V
      85A+2073.2 x 37.4 x 8adjustable cable length 8.2' max, DALI version on request
      Aluminum + PCCode/ColorELP LW2 58 whiteCode/ColorELP LN2 58 blackCode/ColorELP LO2 58 gold painted
    • 3000K
      linear LED85W4425lm (luminous output)diffused orientable 3000Kdimmable 1-10V120V
      85A+2073.2 x 37.4 x 8adjustable cable length 8.2' max, DALI version on request
      Aluminum + PCCode/ColorELP LWW 58 whiteCode/ColorELP LNW 58 blackCode/ColorELP LOW 58 gold painted
