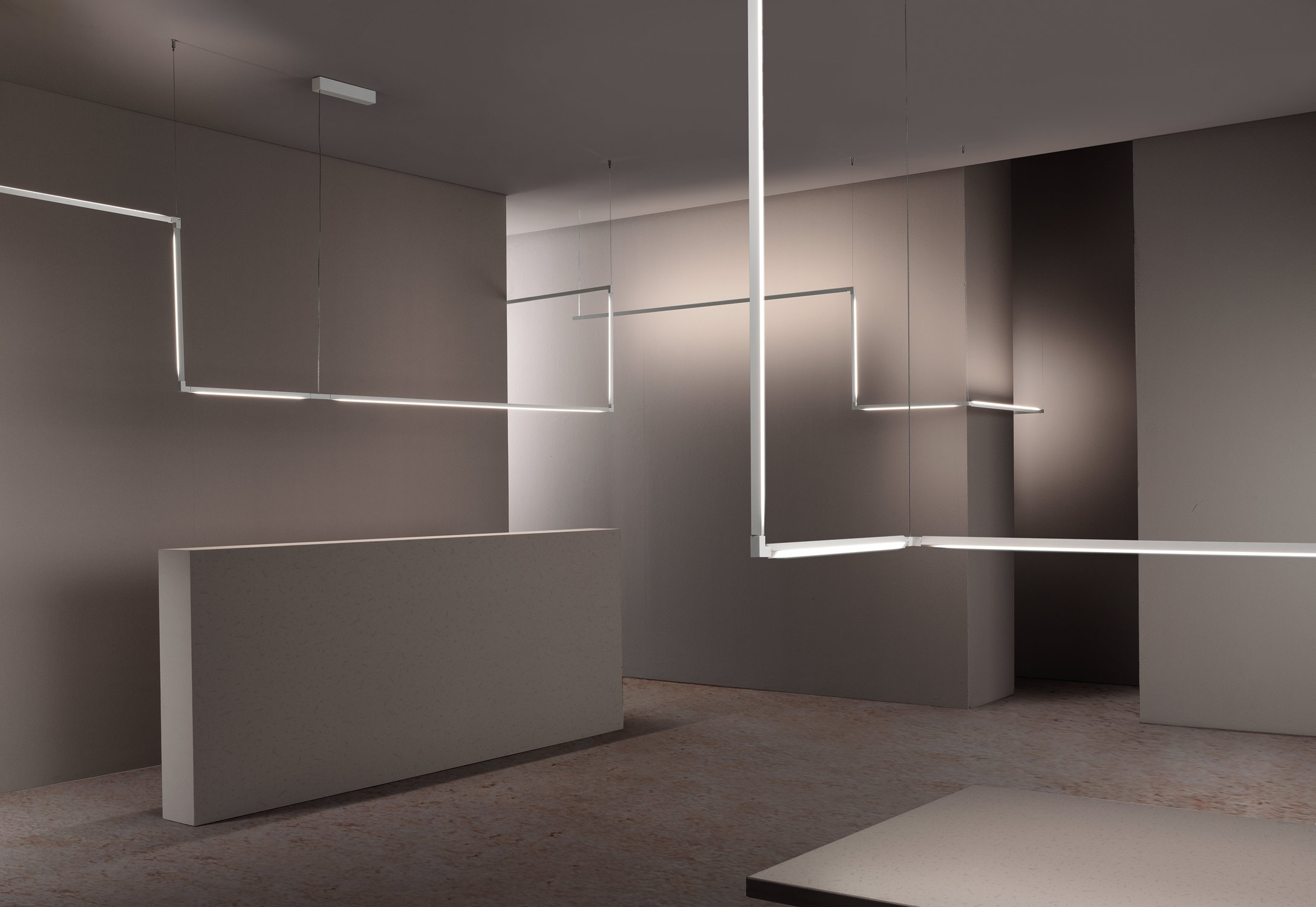

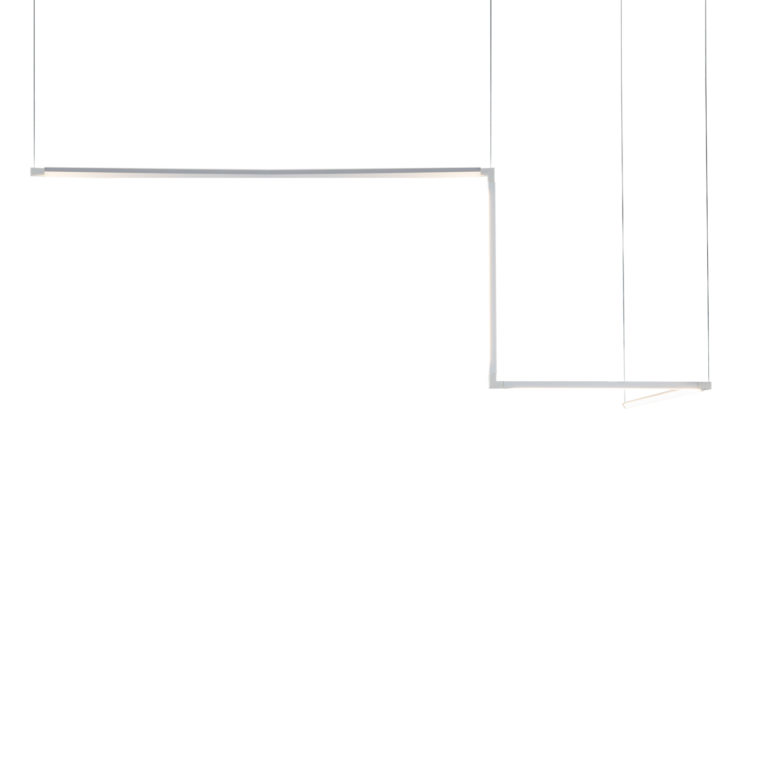

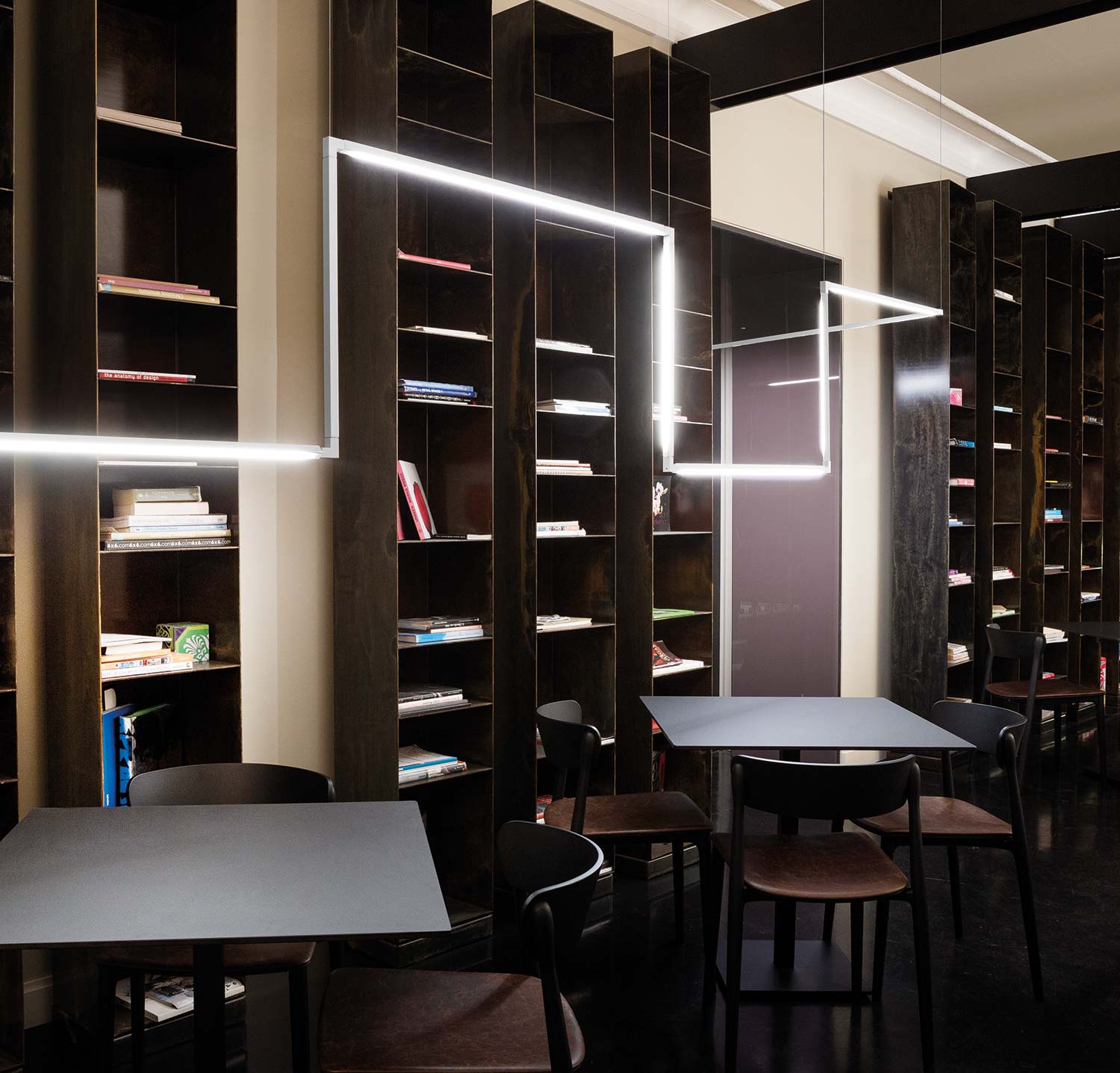

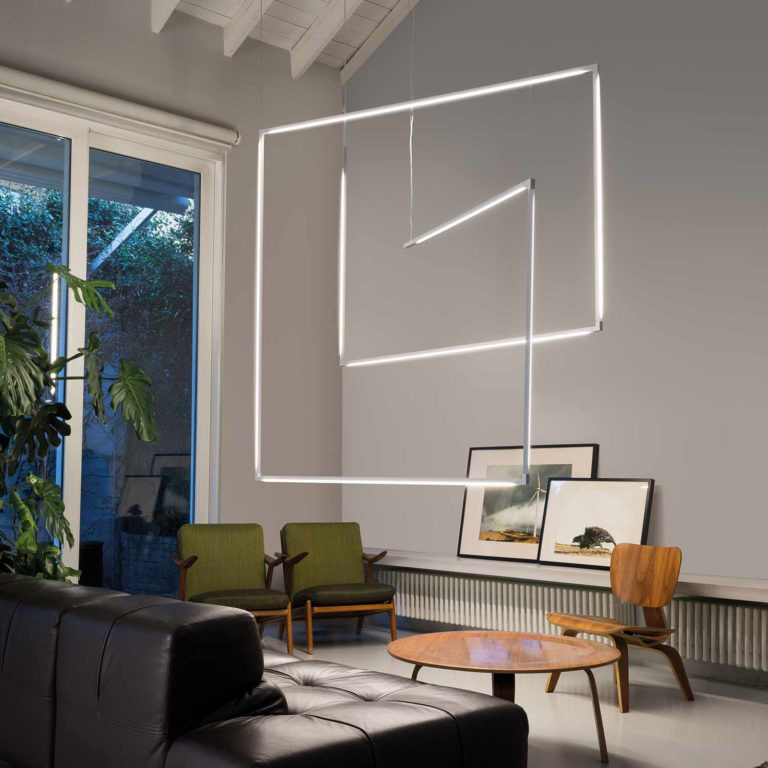

LINESCAPES SYSTEM

Linescapes is a modular system of continuous lines and angles, joined by moulded polymer joints that allow simple connecting and 360° rotation. The Linescapes system has been designed with the aim of providing extreme design versatility through simplified installation and easy care.

Technical drawing

ACCESSORIESSEGMENTSPOT TIGECONNECTION15.741.7222.91.415.72.91.42.41.61.61.61.61.61.61.6T UP VERTICAL2.41.6T HORIZONTAL2.41.6T DOWN VERTICALUP VERTICAL ANGLEHORIZONTAL ANGLEDOWN VERTICAL ANGLECENTRAL4.74.74.7CENTRAL ONE WAYCENTRAL SUPPLY4.7VERTICALEND 4.7HORIZONTALEND4WALL CEILINGEND 5.5WALL CEILINGEND + XYZ VERTICALANGLE SUPPLYHORIZONTALANGLE SUPPLY4.7HORIZONTALSTART4.7VERTICALSTART4WALL CEILINGSTART2.41.61.61.6POWER SUPPLY11.4229.82.22.8CEILING PLATE44CANOPY1.2Ø4.3SPOT41.7222.9Ø1.42.9Ø1.4LED66.9/41.7/22/14.2WING66.9/41.7/22/14.2LINK66.9/41.7/22/14.2

Versions

  • LED SEGMENTS
    • 14.2'' - 2700K
      linear LED6W335lm diffused orientable2700Kdimmable according to driver24V
      802014.2''dimmable, according to driver, 3500K and 4000K available on request, 360° rotation
      aluminum + pc + absCode/ColorLSS LW8 51 whiteCode/ColorLSS LN8 51 black
    • 22" - 2700K
      linear LED9,5W600lm diffused orientable2700K dimmable according to driver24V
      8022"dimmable, according to driver, 3500K and 4000K available on request, 360° rotation
      aluminum + pc + absCode/ColorLSS LW7 51 white Code/ColorLSS LN7 51 black
    • 41.7" - 2700K
      linear LED19W1125lm diffused orientable2700Kdimmable according to driver24V
      802041.7"dimmable, according to driver, 3500K and 4000K available on request, 360° rotation
      aluminum + pc + absCode/ColorLSS LW6 51 whiteCode/ColorLSS LN6 51 black
    • 67,3" - 2700K
      linear LED33W1765lm diffused orientable2700Kdimmable according to driver24V
      802067,3"dimmable, according to driver, 3500K and 4000K available on request, 360° rotation
      aluminum + pc + absCode/ColorLSS LW5 51 whiteCode/ColorLSS LN5 51 black
    • 14.2'' - 3000K
      linear LED6W335lm diffused orientable3000Kdimmable according to driver24V
      802014.2"dimmable, according to driver, 3500K and 4000K available on request, 360° rotation
      aluminum + pc + absCode/ColorLSS LW4 51 whiteCode/ColorLSS LN4 51 black
    • 22" - 3000K
      linear LED9,5W600lm diffused orientable3000Kdimmable according to driver24V
      802022"dimmable, according to driver, 3500K and 4000K available on request, 360° rotation
      aluminum + pc + absCode/ColorLSS LW3 51 whiteCode/ColorLSS LN3 51 black
    • 41.7" - 3000K
      linear LED19W1125lm diffused orientable3000Kdimmable according to driver24V
      802041.7"dimmable, according to driver, 3500K and 4000K available on request, 360° rotation
      aluminum + pc + absCode/ColorLSS LW2 51 whiteCode/ColorLSS LN2 51 black
    • 67.3" - 3000K
      linear LED33W1765lm diffused orientable3000Kdimmable according to driver24V
      802067.3"dimmable, according to driver, 3500K and 4000K available on request, 360° rotation
      aluminum + pc + absCode/ColorLSS LW1 51 whiteCode/ColorLSS LN1 51 black
  • LINK SEGMENTS
    • 14,2"
      24V
      2024V electrical connection, no light
      aluminum + pc + absCode/ColorLSS BW4 51 whiteCode/ColorLSS BN4 51 black
    • 22"
      24V
      2024V electrical connection, no light
      aluminum + pc + absCode/ColorLSS BW3 51 whiteCode/ColorLSS BN3 51 black
    • 41.7"
      24V
      2024V electrical connection, no light
      aluminum + pc + absCode/ColorLSS BW2 51 whiteCode/ColorLSS BN2 51 black
    • 67.3"
      24V
      2024V electrical connection, no light
      aluminum + pc + absCode/ColorLSS BW1 51 whiteCode/ColorLSS BN1 51 black
  • WING SEGMENTS
    • 14.2'' - 2700K
      linear LED6W335lm diffused orientable2700Kdimmable according to driver24V
      8020dimmable, according to driver, 3500K and 4000K available on request, 360° rotation
      aluminum + pc + absCode/ColorLSS UW8 51 WhiteCode/ColorLSS UN8 51 Black
    • 22" - 2700K
      linear LED9,5W 600lm diffused orientable2700Kdimmable according to driver24V
      8020dimmable, according to driver, 3500K and 4000K available on request, 360° rotation
      aluminum + pc + absCode/ColorLSS UW7 51 WhiteCode/ColorLSS UN7 51 Black
    • 41.7" - 2700K
      linear LED19W1125lm diffused orientable2700Kdimmable according to driver24V
      8020dimmable, according to driver, 3500K and 4000K available on request, 360° rotation
      aluminum + pc + absCode/ColorLSS UW6 51 WhiteCode/ColorLSS UN6 51 Black
    • 67,3" - 2700K
      linear LED33W1765lm diffused orientable2700Kdimmable according to driver24V
      8020dimmable, according to driver, 3500K and 4000K available on request, 360° rotation
      aluminum + pc + absCode/ColorLSS UW5 51 WhiteCode/Color LSS UN5 51 Black
    • 14.2'' - 3000K
      linear LED6W 335lm diffused orientable3000Kdimmable according to driver24V
      8020dimmable, according to driver, 3500K and 4000K available on request, 360° rotation
      aluminum + pc + absCode/ColorLSS UW4 51 WhiteCode/ColorLSS UN4 51 Black
    • 22" - 3000K
      linear LED9,5W600lm diffused orientable3000K dimmable according to driver24V
      8020dimmable, according to driver, 3500K and 4000K available on request, 360° rotation
      aluminum + pc + absCode/ColorLSS UW3 51 WhiteCode/ColorLSS UN3 51 Black
    • 41.7" - 3000K
      linear LED19W1125lm diffused orientable3000Kdimmable according to driver24V
      8020dimmable, according to driver, 3500K and 4000K available on request, 360° rotation
      aluminum + pc + absCode/ColorLSS UW2 51 WhiteCode/ColorLSS UN2 51 Black
    • 67,3" - 3000K
      linear LED33W1765lm diffused orientable3000Kdimmable according to driver24V
      8020dimmable, according to driver, 3500K and 4000K available on request, 360° rotation
      aluminum + pc + absCode/ColorLSS UW1 51 WhiteCode/ColorLSS UN1 51 Black

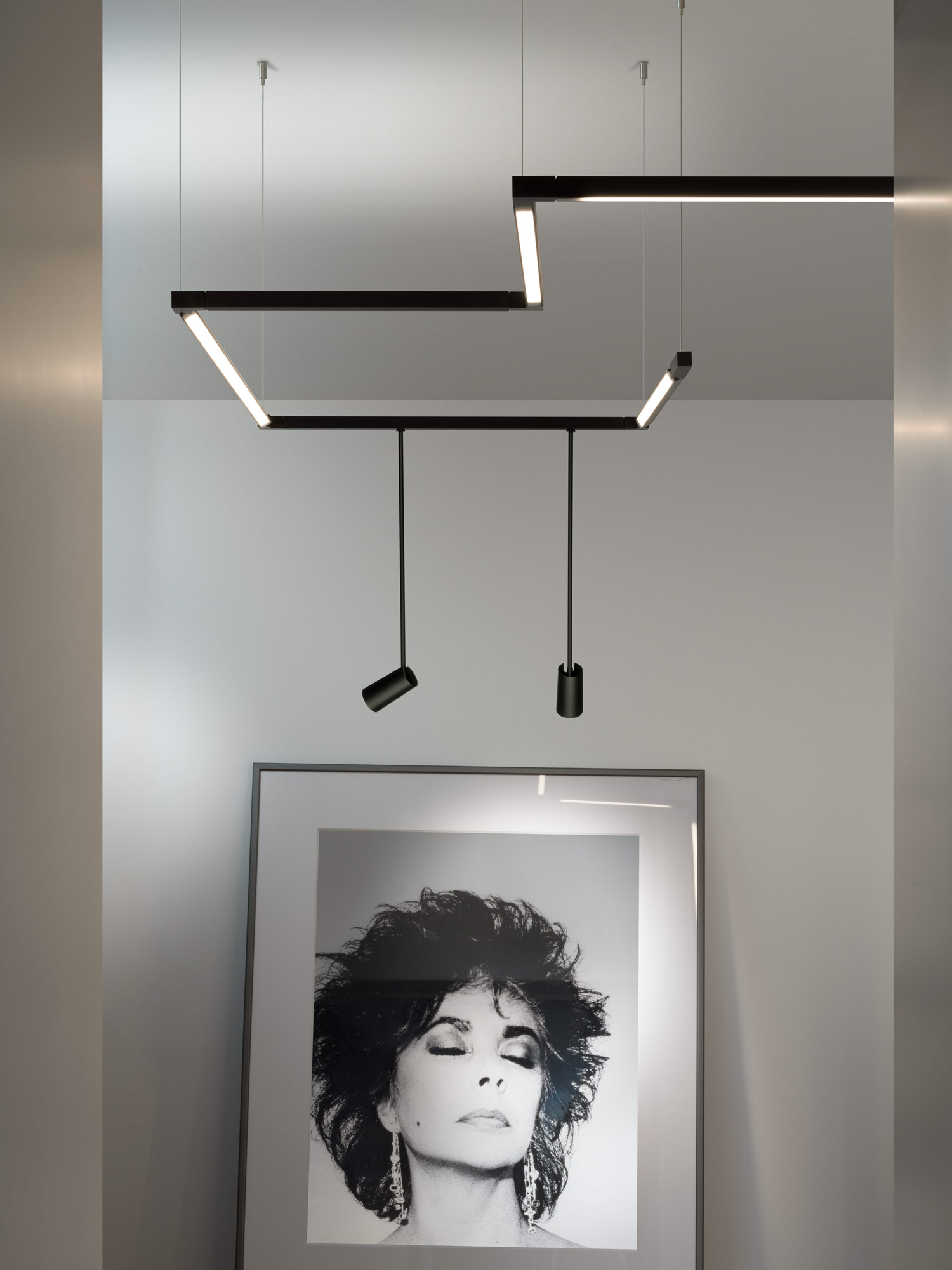

  • SPOT SEGMENTS
    • TIGE 2 SPOT 22" - 2700K
      LED spot2x4W2x400lm spot light, orientable 360°2700Kdimmable according to driver24V
      90203500K and 4000K available on request, 360° rotation
      metal + pmma + pc +absCode/ColorLSS SW1 51 WhiteCode/ColorLSS SN1 51 Black
    • TIGE 3 SPOT 41.7" - 2700K
      LED board3x4W3x400lm spot light, orientable 360°2700Kdimmable according to driver24V
      90203500K and 4000K available on request, 360° rotation
      metal + pmma + pc +absCode/ColorLSS SW2 51 WhiteCode/ColorLSS SN2 51 Black
    • TIGE 2 SPOT 22" - 3000K
      LED board2x4W2x400lm spot light, orientable 360°3000K dimmable according to driver24V
      90203500K and 4000K available on request, 360° rotation
      metal + pmma + pc +absCode/ColorLSS SW3 51 WhiteCode/ColorLSS SN3 51 Black
    • TIGE 3 SPOT 41.7" - 3000K
      LED SPOT 3x4 ìW 3x400lm spot light, orientable 360°3000K dimmable according to driver24V
      90203500K and 4000K available on request, 360° rotation
      metal + pmma + pc +absCode/ColorLSS SW4 51 WhiteCode/ColorLSS SN4 51 Black
    • 2 SPOT 22" - 2700K
      LED board2x4W2x400lm spot light, orientable 360°2700Kdimmable according to driver24V
      90203500K and 4000K available on request, 360° rotation
      metal + pmma + pc +absCode/ColorLSS SW5 51 WhiteCode/ColorLSS SN5 51 Black
    • 2 SPOT 22" - 3000K
      LED board2x4W2x400lm spot light, orientable 360°3000Kdimmable according to driver24V
      90203500K and 4000K available on request, 360° rotation
      metal + pmma + pc +absCode/ColorLSS SW7 51 WhiteCode/ColorLSS SN7 51 Black
    • 4 SPOT 41.7" - 2700K
      LED board4x4W4x400lm spot light, orientable 360°2700Kdimmable according to driver24V
      90203500K and 4000K available on request, 360° rotation
      metal + pmma + pc +absCode/ColorLSS SW6 51 WhiteCode/ColorLSS SN6 51 Black
    • 4 SPOT 41.7" - 3000K
      LED board4x4W4x400lm spot light, orientable 360°3000Kdimmable according to driver24V
      90203500K and 4000K available on request, 360° rotation
      metal + pmma + pc +absCode/ColorLSS SW8 51 WhiteCode/ColorLSS SN8 51 Black
  • CONNECTIONS
    • T UP VERTICAL
      20cable length 9.8'pc + absCode/ColorLSS TN2 51 BlackCode/ColorLSS TW2 51 White
    • T DOWN VERTICAL
      20Cable length max 9.8’, central orientable 360°,pc + absCode/ColorLSS TN1 51 BlackCode/ColorLSS TW1 51 White
    • T HORIZONTAL
      20Cable length max 9.8’, central orientable 360°,pc + absCode/ColorLSS TN3 51 BlackCode/ColorLSS TW3 51 White
    • UP VERTICAL ANGLE
      Cable length max 9.8’, central orientable 360°,pc + absCode/ColorLSS AW1 51 whiteCode/ColorLSS AN1 51 black
    • DOWN VERTICAL ANGLE
      20Cable length max 9.8’, central orientable 360°,pc + absCode/ColorLSS AW2 51 whiteCode/ColorLSS AN2 51 black
    • HORIZONTAL ANGLE
      20Cable length max 9.8’, central orientable 360°,pc + absCode/ColorLSS AW3 51 whiteCode/ColorLSS AN3 51 black
    • CENTRAL
      20Cable length max 9.8’, central orientable 360°,pc + absCode/ColorLSS CW5 51 whiteCode/ColorLSS CN5 51 black
    • CENTRAL ONE WAY
      20Cable length max 9.8’, central orientable 360°,pc + absCode/ColorLSS CW7 51 whiteCode/ColorLSS CN7 51 black
    • CENTRAL SUPPLY
      20Cable length max 9.8’, central orientable 360°,pc + absCode/ColorLSS CW4 51 whiteCode/ColorLSS CN4 51 black
    • HORIZONTAL START
      20Cable length max 9.8’, central orientable 360°,pc + absCode/ColorLSS CW2 51 whiteCode/ColorLSS CN2 51 black
    • VERTICAL START
      20Cable length max 9.8’, central orientable 360°pc + absCode/ColorLSS CW1 51 whiteCode/ColorLSS CN1 51 black
    • WALL CEILING START
      20Cable length max 9.8’, central orientable 360°pc + absCode/ColorLSS FW3 41 WhiteCode/ColorLSS FN3 41 Black
    • HORIZONTAL END
      20Cable length max 9.8’, central orientable 360°pc + absCode/ColorLSS CW3 51 whiteCode/ColorLSS CN3 51 black
    • VERTICAL END
      20Cable length max 9.8’, central orientable 360°pc + absCode/ColorLSS CW6 51 whiteCode/ColorLSS CN6 51 black
    • WALL CEILING END
      20Cable length max 9.8’, central orientable 360°pc + absCode/ColorLSS FW1 41 WhiteCode/ColorLSS FN1 41 Black
    • WALL CEILING + XYZ
      20Cable length max 9.8’, central orientable 360°pc + absCode/ColorLSS FW2 4 WhiteCode/ColorLSS FN2 41 Black
    • VERTICAL ANGLE SUPPLY
      20Cable length max 9.8’, central orientable 360°pc + absCode/ColorLSS AW4 51 WhiteCode/ColorLSS AN4 51 Black
    • HORIZONTAL ANGLE SUPPLY
      20Cable length max 9.8’, central orientable 360°pc + absCode/ColorLSS AW5 51 WhiteCode/ColorLSS AN5 51 Black
  • CEILING PLATE
    for recessed ceiling applicationaluminumCode/ColorLSS PNR 51 Black Code/ColorLSS PWR 51 White
  • CANOPY
    metalCode/ColorROS KNN 51 BlackCode/ColorROS KWW 51 White
  • POWER SUPPLY
    • 60W 1-10V
      120V
      additional drivers available on the basis of a specific project, square cover plate includedCode/ColorLSS PN6 51 BlackCode/ColorLSS PW6 51 White
    • 90W 1-10V
      120V
      additional drivers available on the basis of a specific project, square cover plate includedCode/ColorLSS PN9 51 BlackCode/ColorLSS PW9 51 White
  • REMOTE DRIVERS
